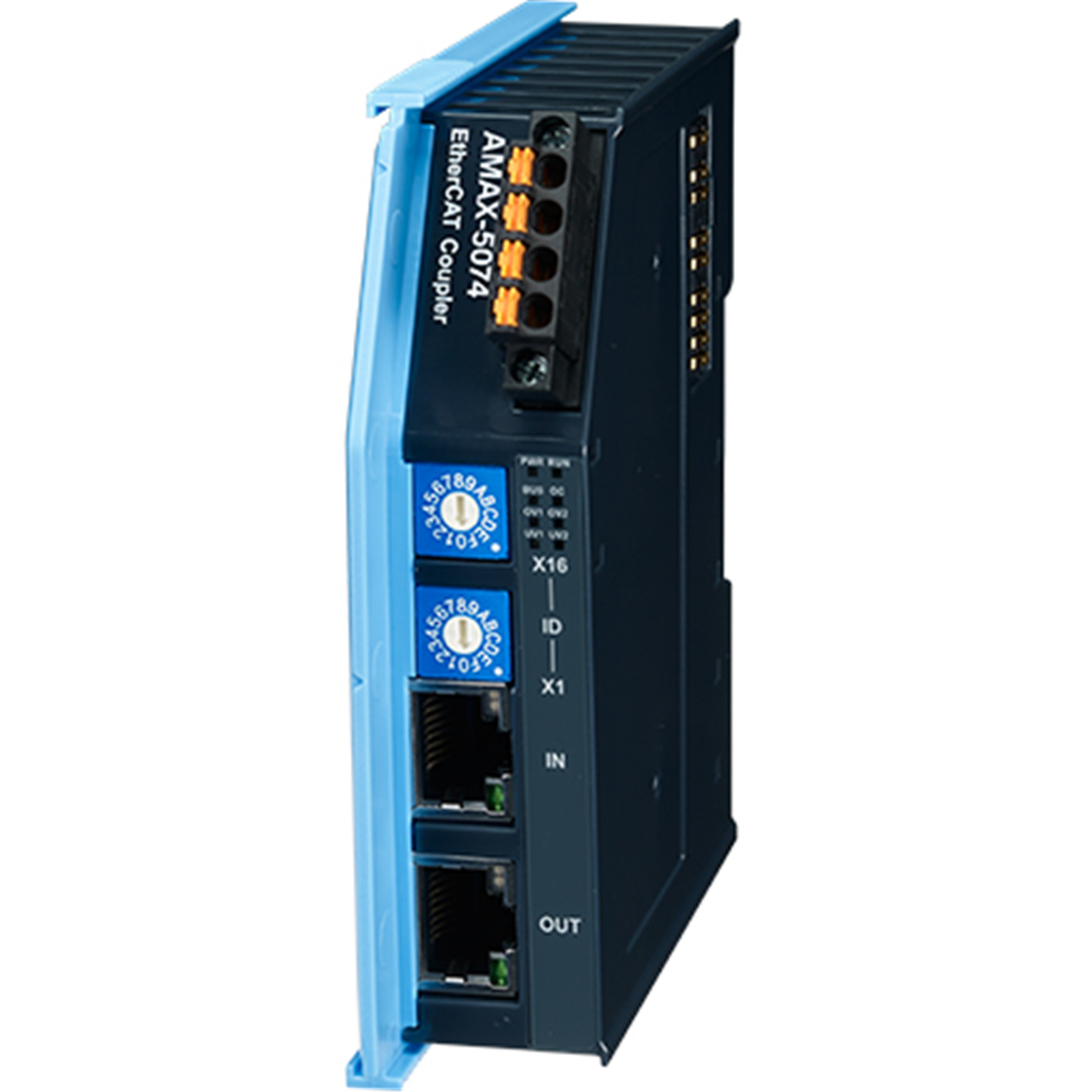

Advantech AMAX-5074 EtherCAT coupler
- Brand: Advantech
- MPN: AMAX-5074-A
- Part #: IPCAVH011006

Product URL: https://www.pbtech.com/au/product/IPCAVH011006/Advantech-AMAX-5074-EtherCAT-coupler
Features
EtherCAT Coupler with ID Switch Slice I/O Module
- Function : Coupling EtherCAT IO modules to 100BASETX EtherCAT network
- Cable : Ethernet/EtherCAT cable (min. Cat. 5), shielded
- Distance between stations : Max. 100 m (100BASETX)
- Number of configurable IDs : 256 (2 x 16-bit ID switch)
- Bus Interface : 2 x RJ45 (1 x Input, 1 x Output)
Specifications
General
Rated Voltage
24 VDC (±20%)
Max Current on Bus
2 A
Diagnosis Function
Over/under voltage for input 1&2
Over current output on bus
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Dual Power Input
Supported
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, Power Diagnosis LED
Power Consumption
2.5 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
98 g
Dimension (W x H x D)
26.6 x 105.9 x 93.0 mm
