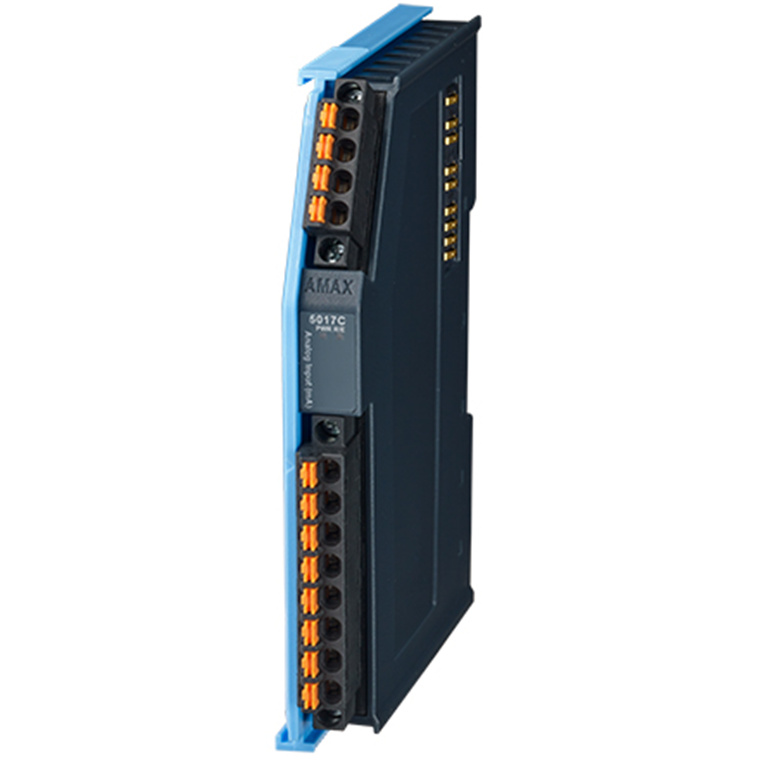

Advantech AMAX-5017C-A 6-ch Current Analog Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5017C-A
- Part #: IPCAVH011009

Product URL: https://www.pbtech.com/au/product/IPCAVH011009/Advantech-AMAX-5017C-A-6-ch-Current-Analog-Input-E
Features
6-ch Current Analog Input EtherCAT Slice IO Module
- Channels : 6 (Differential)
- Input Type : mA
- Voltage Range : ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
- Input Impedance : 120 O
- Resolution : 16-bit
- FSR accuracy : 16-bit with ±0.2% @25°C
- Sample Rate : 100 sample/s (per channel)
- Burn-out detection : Yes
Specifications
Analog Input
Channels
6
Input Range
±20 mA, 0~20 mA, 4~20 mA
lnput Type
mA
Resolution(Bits)
16-bit with ±0.2% FSR accuracy @25°C
Sampling Rates(S/s)
100 S/s (per channel)
Burn-out Detection
Yes
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR
Power Consumption
2 W@ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
82 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
