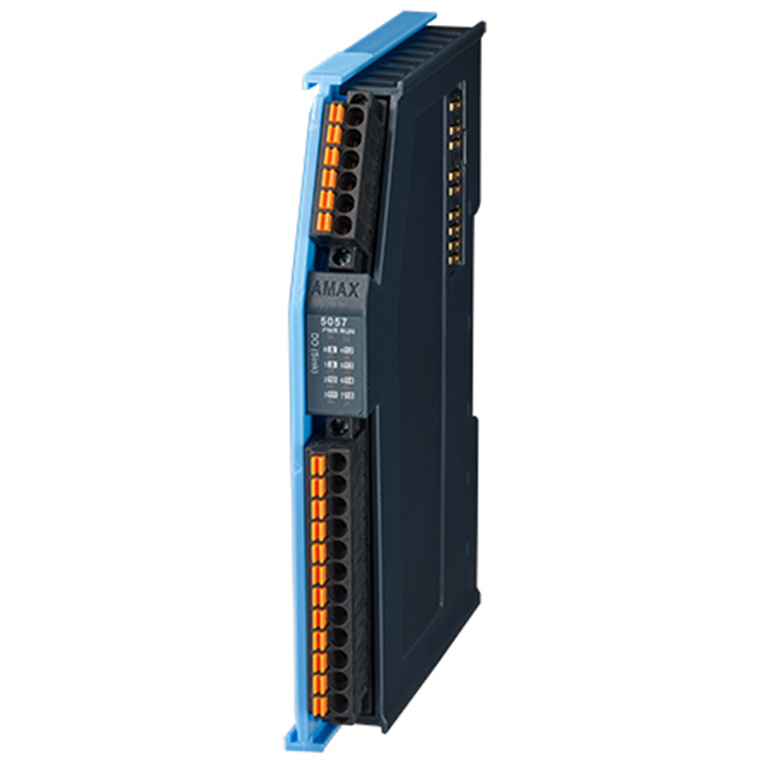

Advantech AMAX-5057-B 16-ch Sink-type Digital Output EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5057-B
- Part #: IPCAVH011020

Product URL: https://www.pbtech.com/au/product/IPCAVH011020/Advantech-AMAX-5057-B-16-ch-Sink-type-Digital-Outp
Features
16-ch Sink-type Digital Output EtherCAT Slice IO Module
- Channels:16 (Sink Type)
- Voltage Rating:10~30VDC
- Rated Current Output:0.3A per channel atsignal "1"
- Leakage Current:25 µA per channel atsignal "0"
- Output Delay:From logic level 0 to 1:10µs;From logic level 1 to 0: 100µs
Specifications
Digital Output
Output Type
Sink
Channels
16
Output Delay
From logic level 0 to 1:
10 us
From logic level 1 to 0:
100 us
Rated Output Current
Logic level 1: 0.3 A per channel
Logic level 0: 25 uA per channel (leakage current)
Voltage Rating
10~30 VDC
General
Connectors
1 x 6-pin plug-in screw terminal, 1 x 12-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, DO status
Power Consumption
2 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-25~60 °C (-13~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
80 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
