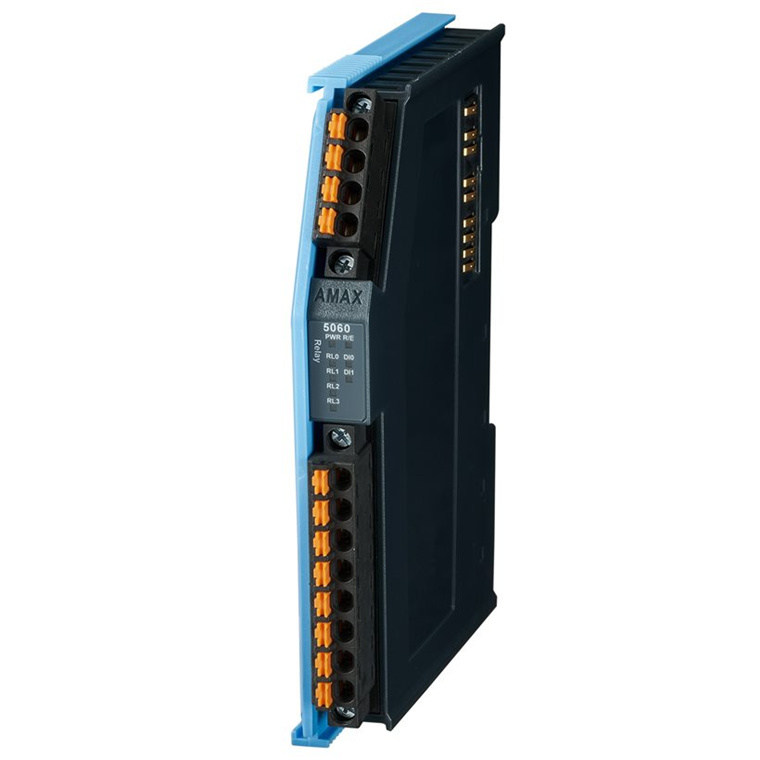

Advantech AMAX-5060-A 4-ch Relay with 2-ch Digital Input EtherCAT Slice IO Module
- Brand: Advantech
- MPN: AMAX-5060-A
- Part #: IPCAVH011022

Product URL: https://www.pbtech.com/au/product/IPCAVH011022/Advantech-AMAX-5060-A-4-ch-Relay-with-2-ch-Digital
Features
4-ch Relay with 2-ch Digital Input EtherCAT Slice IO Module
- Relay Type: Form A (SPST)
- Contact Rating: 250VAC @ 5A, 30VDC @ 5A
- Insulation Resistance: 1 GO (min.) @ 500 VDC
- Breakdown Voltage: 500VAC (50/60Hz)
Specifications
Relay Output
Channels
4 Form A
Contact Rating (Resistive)
5 A @ 30 VDC, 5 A @ 250 VAC
Resistance
Min. 1 GO min.
Digital Input
Channels
2
Input Voltage
Wet Contact
Rated voltage: 24 VDC
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC
Digital Filter
Selectable
General
Connectors
1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
EtherCAT
EtherCAT
Cycle Time
100 µs
Hardware
Certification
CE, FCC class A
LED Indicators
PWR, RUN / ERROR, R0, R1, R2, R3, DI0, DI1
Power Consumption
2.5 W @ 24 VDC
Environment
Isolation Voltage
2,000 VDC
Operating Temperature
-20~55 °C (-4~131 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Storage Humidity
95% RH (non-condensing)
Mechanical
Enclosure
PC
Mounting
DIN-rail
Weight (Net)
92 g
Dimension (W x H x D)
14.6 x 105.9 x 94.7 mm
