Advantech FPM-5151G-R3BE 15" XGA Ind. Monitor w/ Resistive TS (Combo)
- Brand: Advantech
- MPN: FPM-5151G-R3BE
- Part #: IPCAVH060006

Product URL: https://www.pbtech.com/au/product/IPCAVH060006/Advantech-FPM-5151G-R3BE-15-XGA-Ind-Monitor-w-Resi
Features

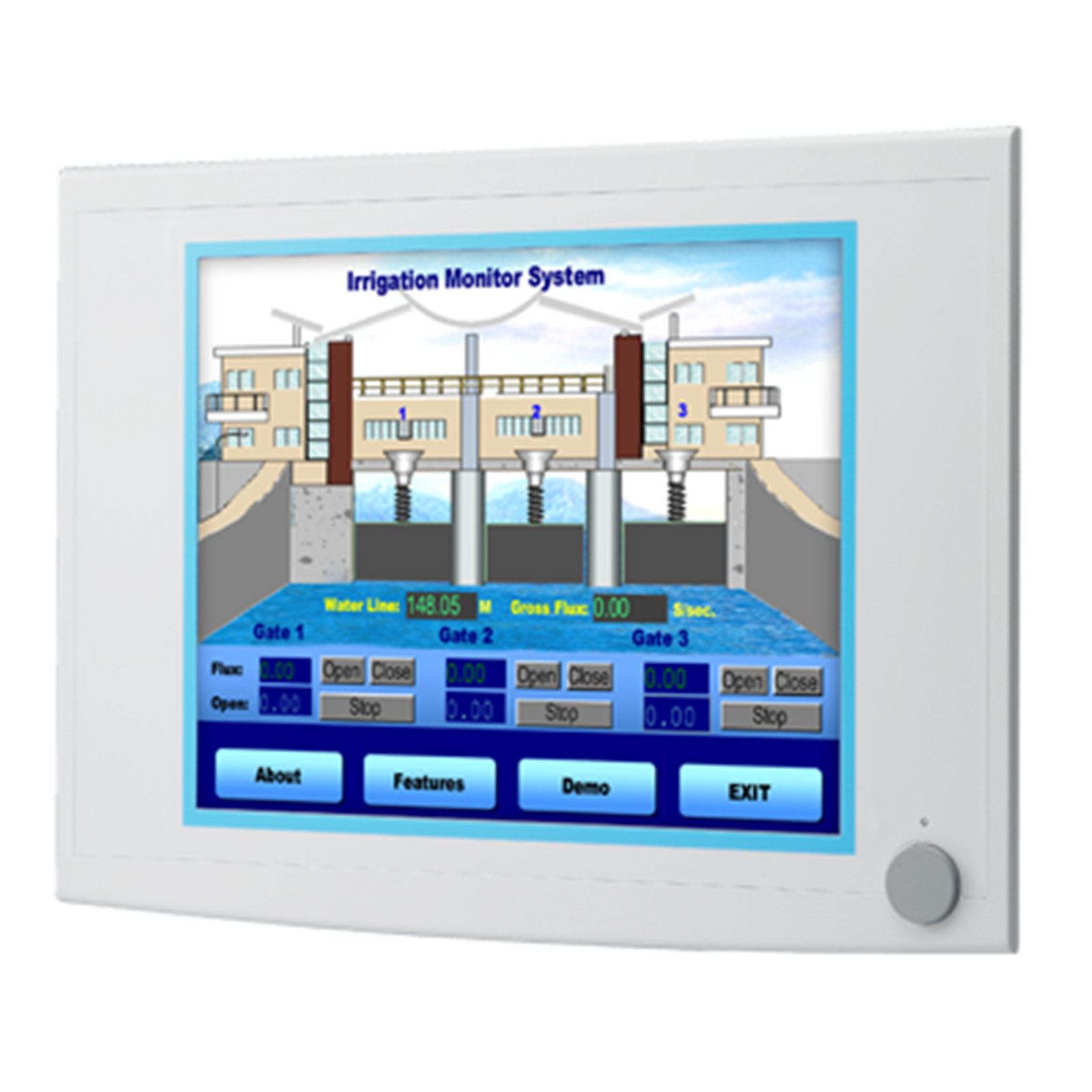

15" XGA Industrial Monitors with Resistive Touchscreens, Direct-VGA, and DVI Ports
- 15" XGA with 50,000 backlight lifetime

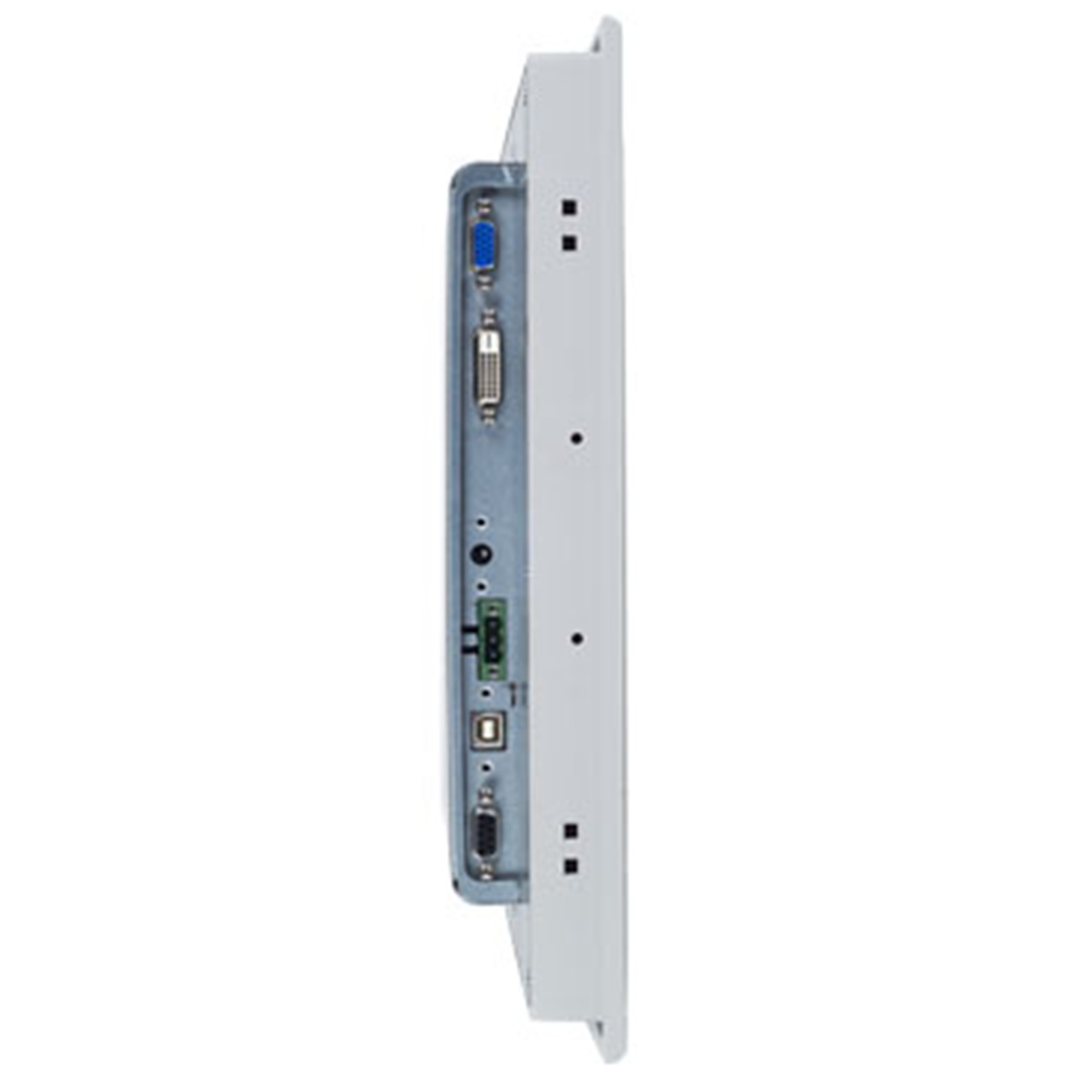

- Direct VGA and DVI-D input interfaces
- Lockable OSD keys with 2 user-defined contrast/brightness controls
- Flat, sealed, IP65-rated front panel
- Robust design with anti-rust chassis and aluminum die cast front panel
- Front-accessible USB connector
- Combo RS-232 & USB interface for touchscreen functionality (switchable)
- Supports 10 ~ 30 VDC power input with Phoenix jack

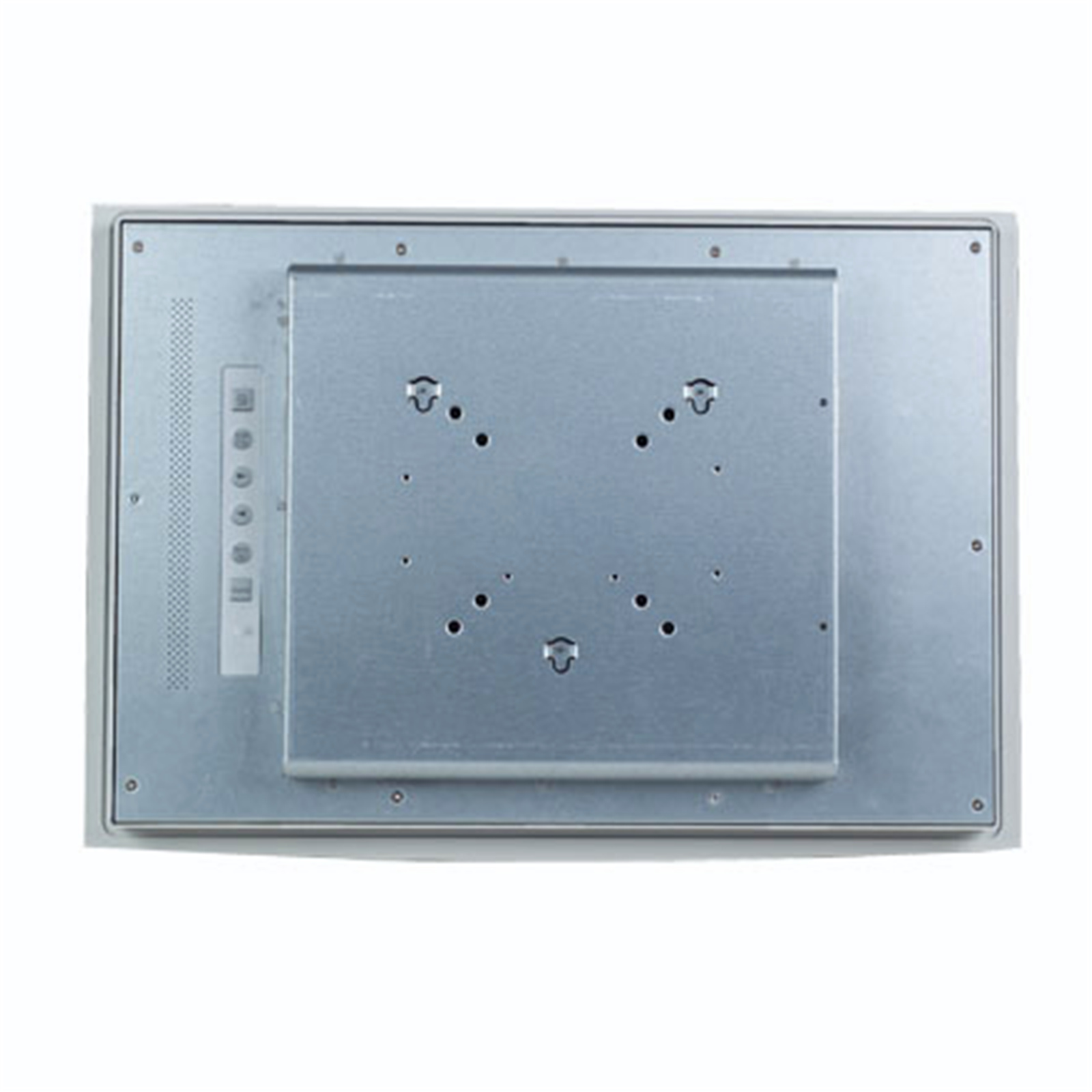

- Supports panel, wall, desktop, rack or VESA arm mounting
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-5171G/file/FPM-51x1G_DS(122622)20230106151003.pdf
Specifications
General
OSD Controls
Lockable OSD control buttons on rear panel
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
5151G: 449.92 x 315.63 x 50.5 mm (17.71 x 12.43 x 1.99 in)
Enclosure
Front panel: Aluminum and flat-sealed
Rear cover: Anti-rust coating
Mount Options
Panel, wall, desktop, VESA arm, or 19" rackmount
Power Input
Phoenix Jack: 10 ~ 30 VDC input
Optional external 57 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 4.7A output
Power Consumption
18 W + 20%
USB
Front-facing USB for easy access
Video Port
VGA & DVI-D
Weight (Net)
6 kg (13.22 lb)
LCD Display
Display Type
XGA
Display Size
15"
Max. Resolution
1024 x 768
Max. Color
16.2M
Viewing Angle (H/V °)
160/140,
Luminance (cd/m² )
400
Backlight Life
50,000 hr
Contrast Ratio
700:1
Touchscreen
Sensor
AMT
Driver
Penmount 6000
Type
5-wire resistive
Interface
RS-232 & USB
Lifespan
10 million with R8 silicone rubber finger, 2 x 250g presses per second
Light Transmission
> 80%
OS Support
Windows XP, Vista,7, 8,10,XPe and Linux
Power Consumption
+5 V @ 100 mA
Touch Resolution
Linearity
Environment
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Humidity (Storage)
10 ~ 90% non-condensing
IP Rating
Front panel is compliant with IP65
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
