Advantech FPM-8151H-R3BE 15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel, C1D2 certified
- Brand: Advantech
- MPN: FPM-8151H-R3BE
- Part #: IPCAVH060009

Product URL: https://www.pbtech.com/au/product/IPCAVH060009/Advantech-FPM-8151H-R3BE-15-XGA-Industrial-Monitor
Features
The FPM-8151H is a particularly rugged and reliable 15" XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a wide operating temperature range of -20 ~ 60°C (-4 ~ 140°F), it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system isolation to enhance the reliability. Moreover, FPM-8151H is designed to be safely operated in these locations and is certified with UL Class I Division 2 for hazardous environment.
- 15" XGA TFT LCD with LED backlight
- Stainless steel 316L front panel
- IP65 compliant front panel
- -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range
- Enhanced 5-wire resistive touch panel
- Direct VGA & DVI-D video input interface
- Combo RS-232 & USB interface for touchscreen function
- Supports 24 VDC input and 100~240 VAC input (optional AC adapter)

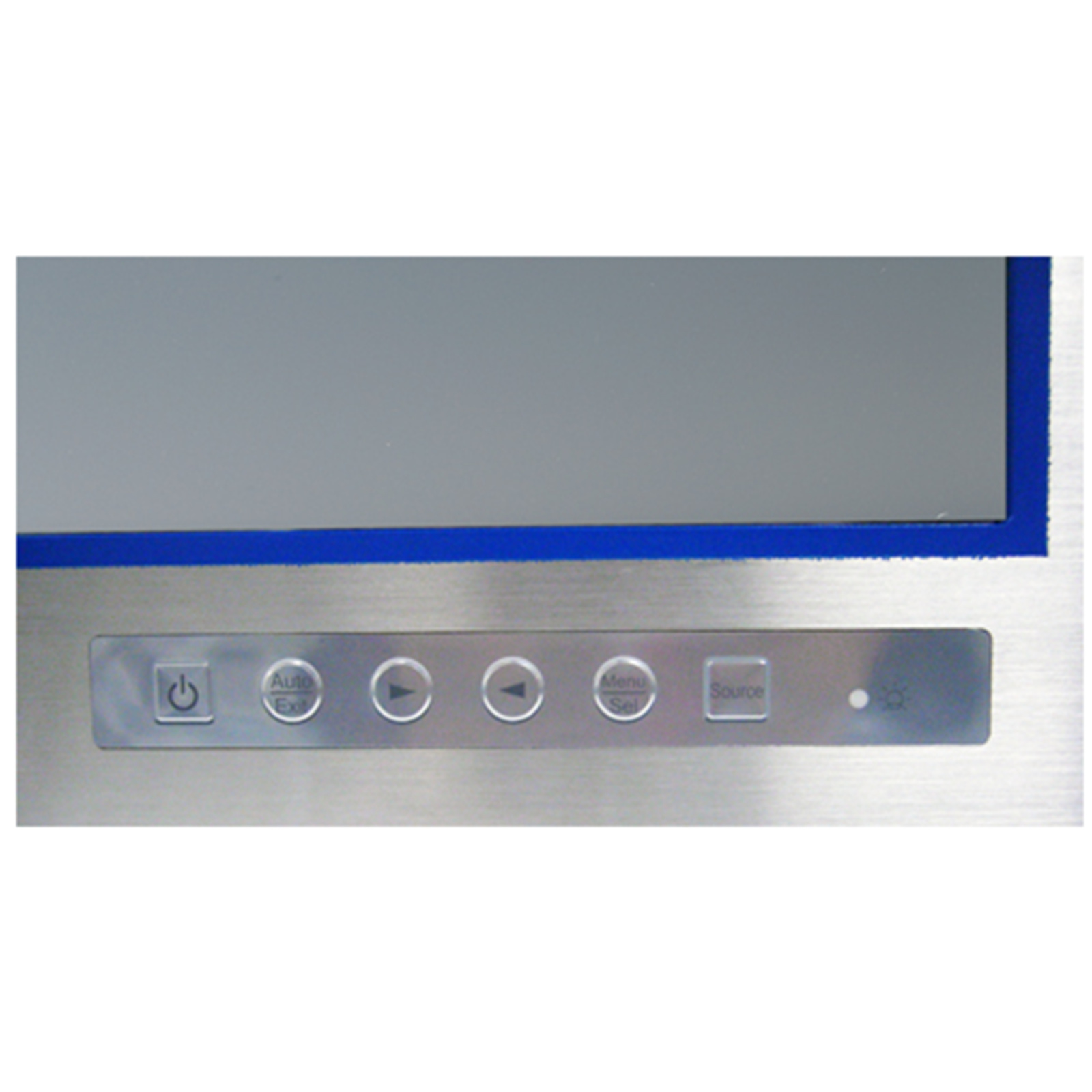

- OSD control pad with lockable function on front panel
- Certified with UL CID2 for hazardous environment
Specifications
Environment
Ingress Protection
Front Panel IP65
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
95% RH (non-condensing)
Storage Temperature
-30~80 °C (-22~176 °F)
Vibration Protection
1 Grms, random
General
Humidity (Operating)
10~95% RH (non-condensing)
Humidity (Storage)
10~95% RH (non-condensing)
Rated Voltage
24 VDC
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI, C1D2
I/O
1 x VGA, 1 x DVI, 1 x RS-232, 1 x USB
OS Support
Windows 2000, XP, Vista, 7, XPe, CE and Linux
OSD Controls
OSD panel on front panel
Power Consumption
12 W @ 24 VDC
Power Input
24 VDC
Power Requirement
24 VDC
Video Port
VGA, DVI
I/O Interface
Power Connector
1 x 3-Pin Terminal Block
LCD Display
Backlight Life (hrs)
50,000
Display Size
15"
Luminance (cd/m2)
350
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
160/140
Mechanical
Dimension (W x H x D)
422 x 338 x 68 mm
Enclosure
316L Stainless Steel
Form Factor
Passive Cooling
Mounting
Panel
Weight (Net)
8.5 kg (18.74 lb)
Touchscreen
Touch Type
5-wire resistive
