Advantech PPC-3100-RE9A 10.4" SVGA TFT LCD with resistive touchscreen
- Brand: Advantech
- MPN: PPC-3100-RE9A
- Part #: IPCAVH060010

Product URL: https://www.pbtech.com/au/product/IPCAVH060010/Advantech-PPC-3100-RE9A-104-SVGA-TFT-LCD-with-resi
Features

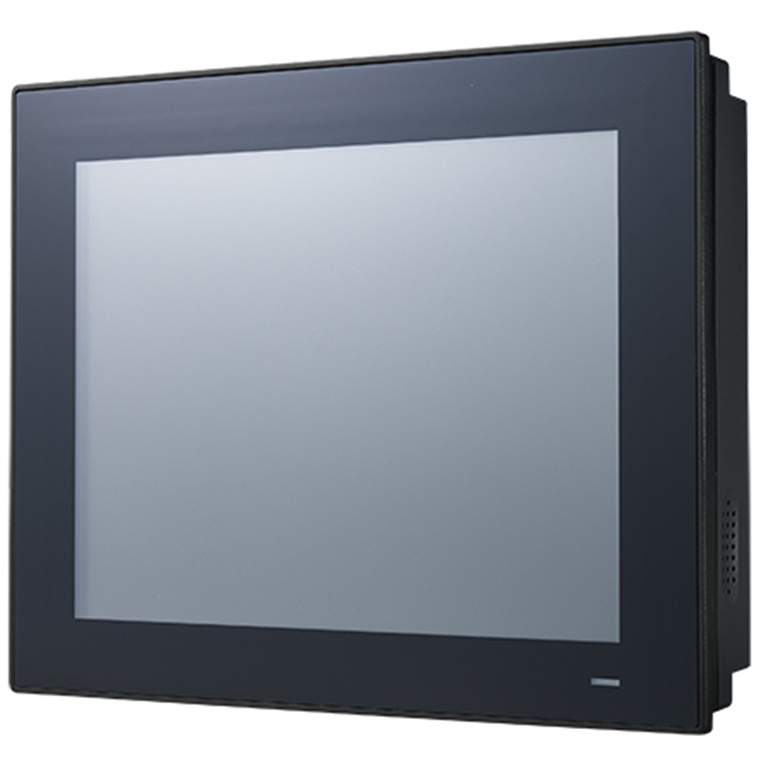

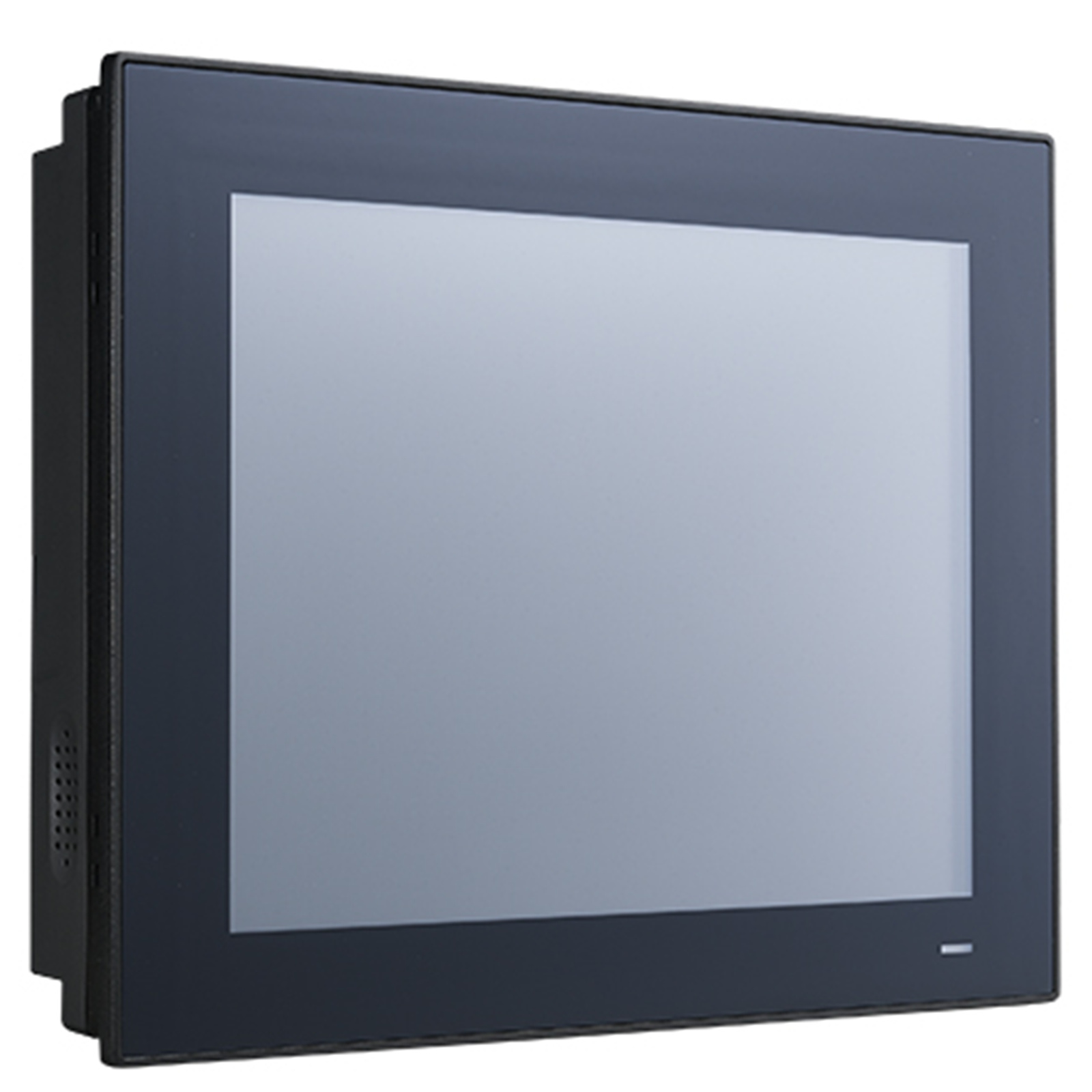

The PPC-3100 is a 10.4" fanless panel PC equipped with a high-performance Intel® Atom™ E3940 quad-core processor that supports wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 4 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity.

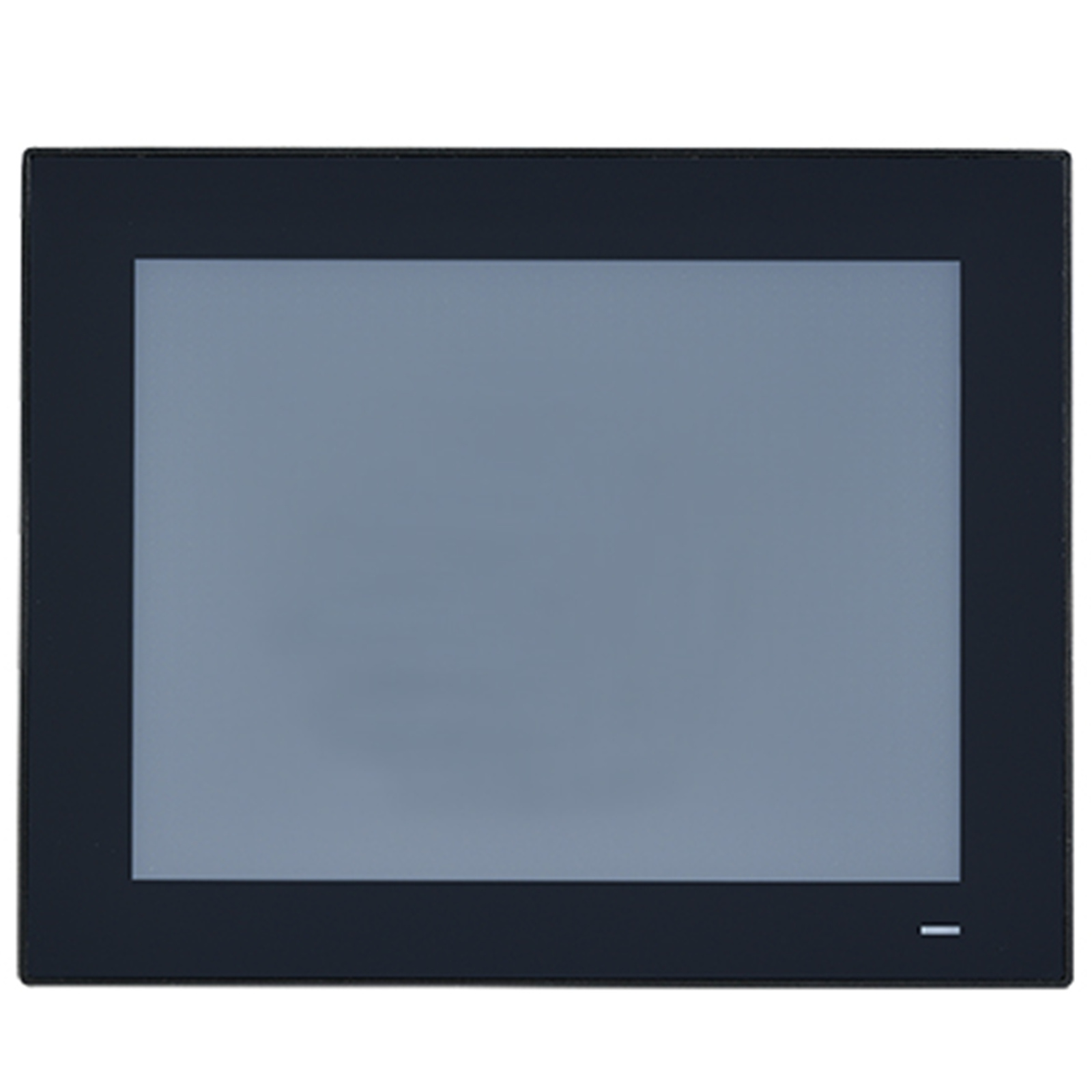

- 10.4" SVGA TFT LCD with resistive touchscreen
- Intel® Atom™ E3940, 1.6 GHz, processor
- Up to 8 GB DDR3L 1866 SDRAM
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- Fanless design with low power consumption
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)
- No RED Certification
Specifications
Environment
Ingress Protection
Front Panel IP66
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
10~95% RH (non-condensing)
Storage Temperature
-30~60 °C (-22~140 °F)
Vibration Protection
1 Grms, random
Hardware
Certification
CE, FCC Class B, BSMI, CB, UL, CCC, UKCA
CPU
Intel® Atom™ E3940 1.6GHz Qua-Core
Ethernet
Intel® i210-IT GbE
Expansion
1 x Full-size mPCIe slot
I/O

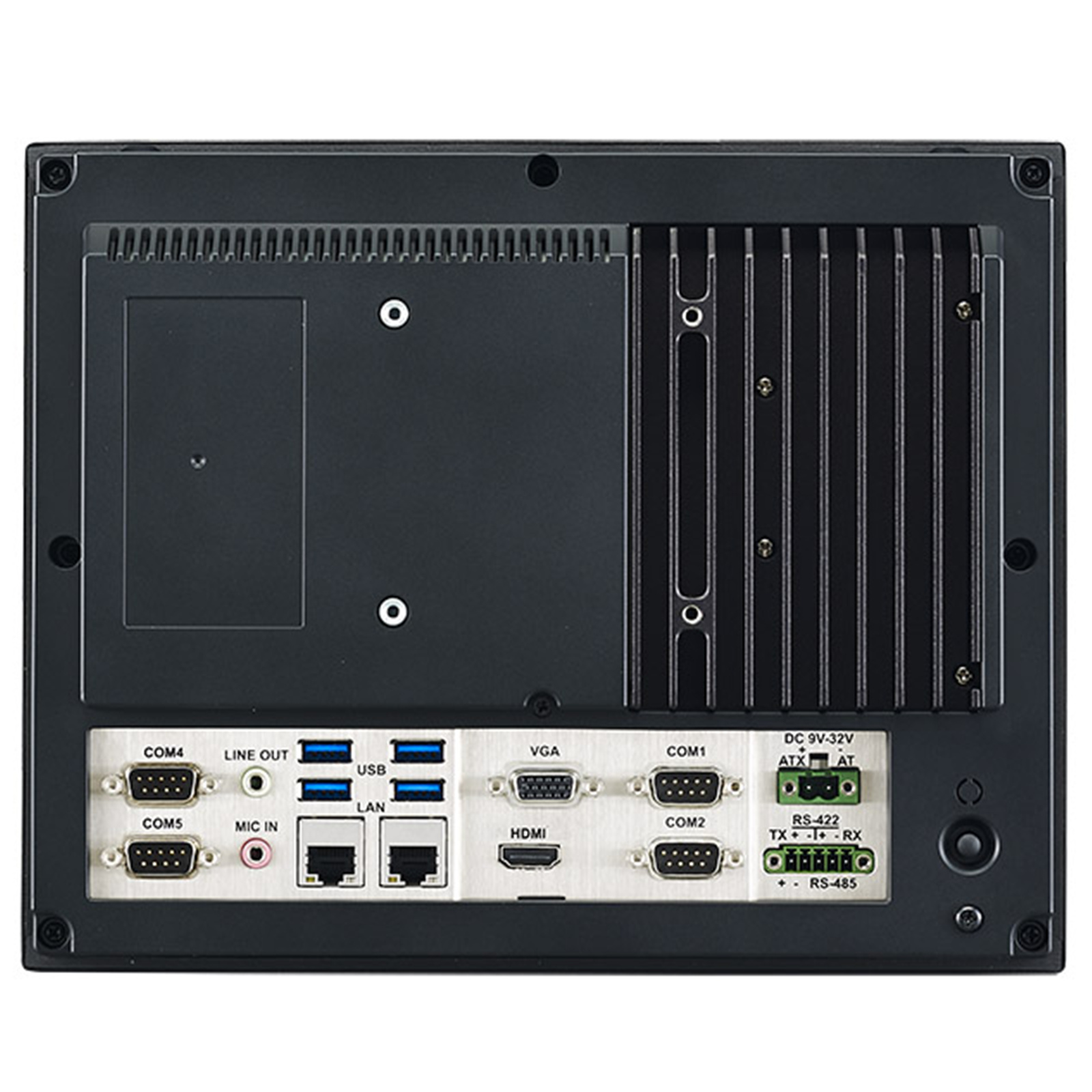

4 x RS-232, 1 x RS-422/485 , 4 x USB 3.0, 1 x Line Out, 1 x Mic In, 1 x VGA, 1 x HDMI, 1 x GPIO
LAN
2 x 10/100/1000 Mbps
Memory
1 x DDR3L SO-DIMM Slot
OS Support
Microsoft® Windows 10 , Microsoft® Windows 10 LTSC, Linux, Android
Power Consumption
30 W @ 19 VDC
Power Input
9~32 VDC
I/O Interface
Audio
Line-Out, Microphone
Displays
1 x VGA, 1 x HDMI
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
4 x RS-232, 1 x isolated RS-422/485
LCD Display
Backlight Life (hrs)
30,000
Display Size
10.4"
Luminance (cd/m2)
400
Max. Resolution
800 x 600
Viewing Angle (H/V°)
160/140
Mechanical
Dimension (W x H x D)
272 x 217 x 58 mm
Enclosure
Die-cast aluminum alloy, PC + ABS
Mounting
Stand, Wall, VESA, Panel
Weight (Net)
2.8 kg (6.17 lb)
Touchscreen
Touch Type
5-wire resistive
USB Vision
Connector
4 x USB 3.0 Type A
