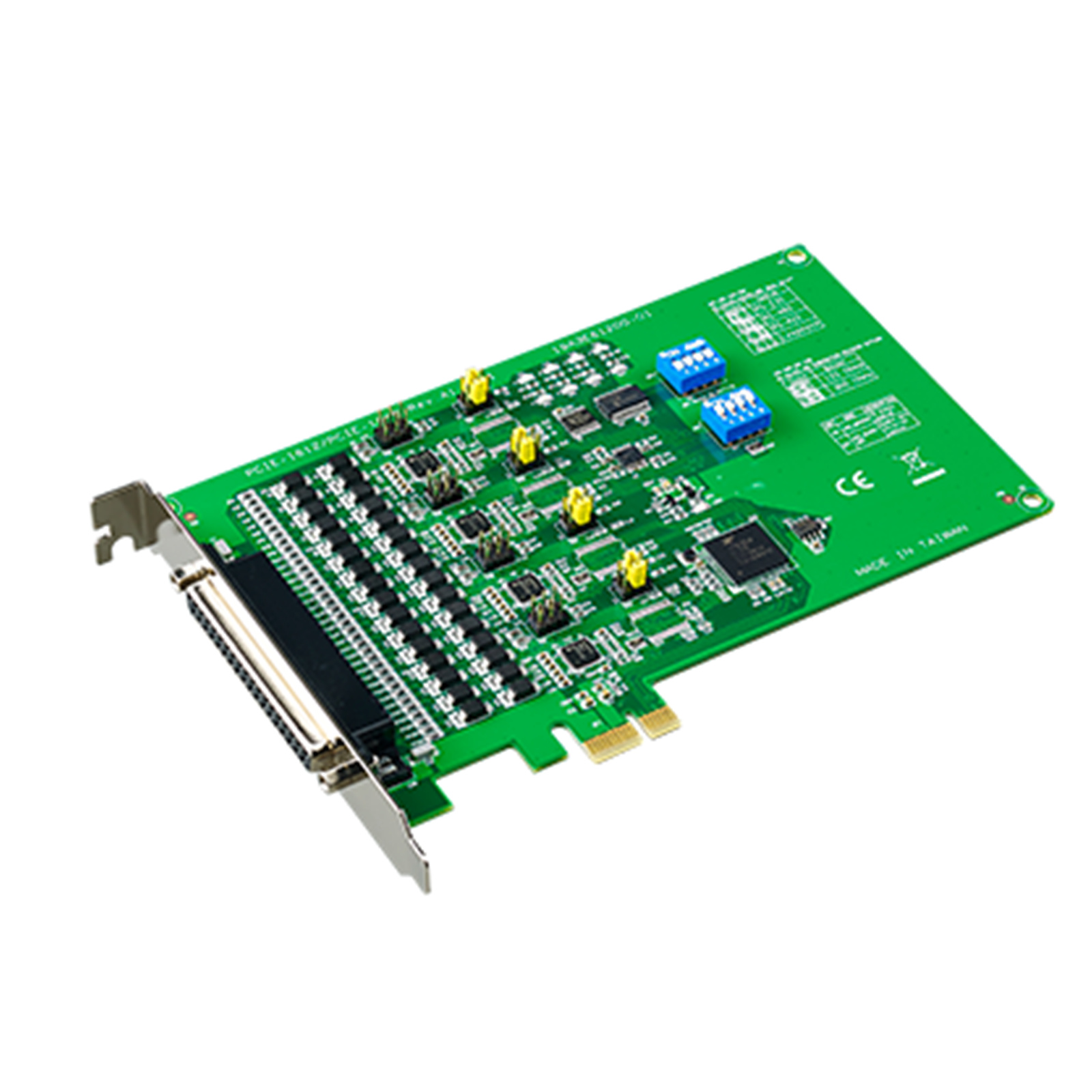

Advantech PCIE-1612C 4PORT RS232/422/485 PCIE W/S
- Brand: Advantech
- MPN: PCIE-1612C-AE
- Part #: IPCAVH110001

Product URL: https://www.pbtech.com/au/product/IPCAVH110001/Advantech-PCIE-1612C-4PORT-RS232422485-PCIE-WS
Features
4-port RS-232/422/485 PCIe Communication Card w/Surge & Isolation
- PCI Express bus 2.0 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 4 x RS-232 or RS- 232/422/485 ports
- Operating systems supported: Windows XP/Vista/7/8/10, Linux
- XR17V354 UART with 256-byte FIFOs
Specifications
MPN
PCIE-1612C
ESD Protection
15KV (air), 8KV (contact)
EFT Protection
1000 V
Surge Protection
1000 VDC
Isolation Protection
3000 VDC
Bus Type
PCI Express bus 2.0 compliant
Bus Interface
PCI Express x1
Certification
CE, FCC class A
Connectors
1 x DB37, female
Dimensions (L x H)
168 x 111 mm (6.6" x 4.4")
Power Consumption
260 mA @ +3.3 V (typ.)
Comm. Controller
XR17V354
Data Bits
5, 6, 7, 8
FIFO
256 bytes
Parity
None, Odd, Even, Mark and Space
Speed
50 bps ~ 921.6 kbps
Stop Bits
1, 1.5, 2
Bundled Software
ICOM tools
OS Support
Windows XP/7/8/10 and Linux (check the software release note for versions supported)
Operating Humidity
5 ~ 95% RH, non-condensing
Operating Temperature
-10 ~ 60 °C (14 ~ 140 °F)
Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
