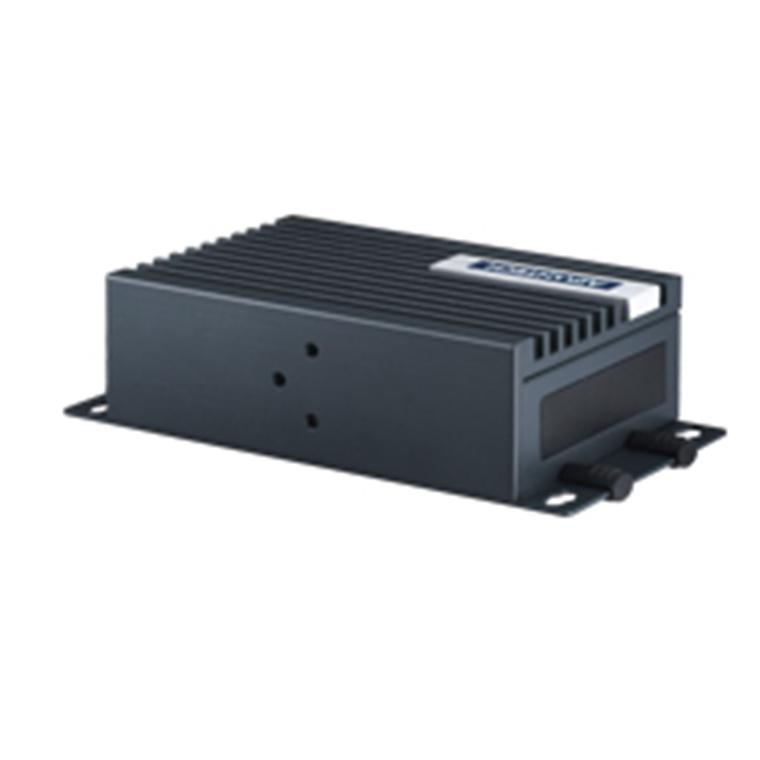

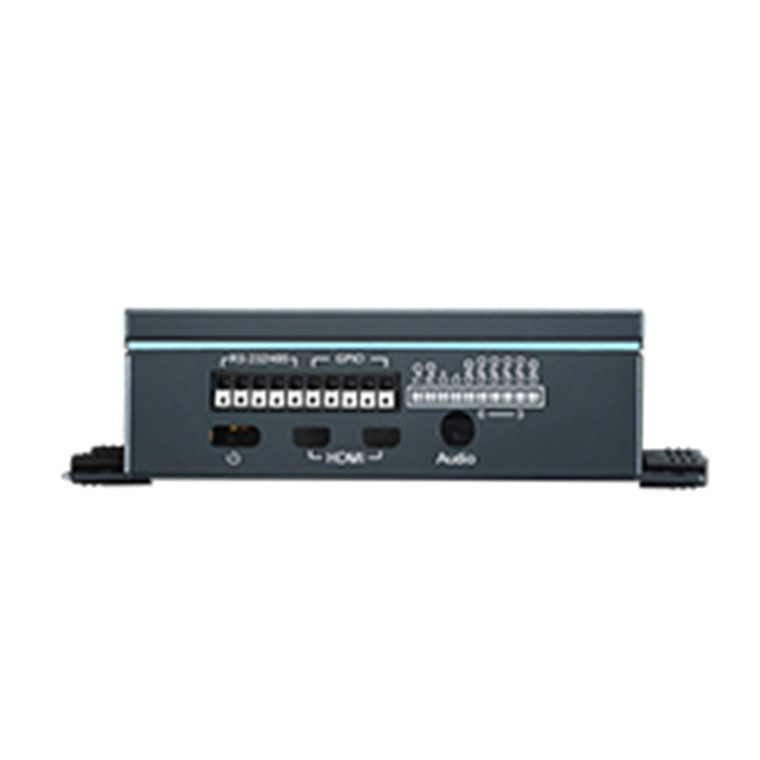

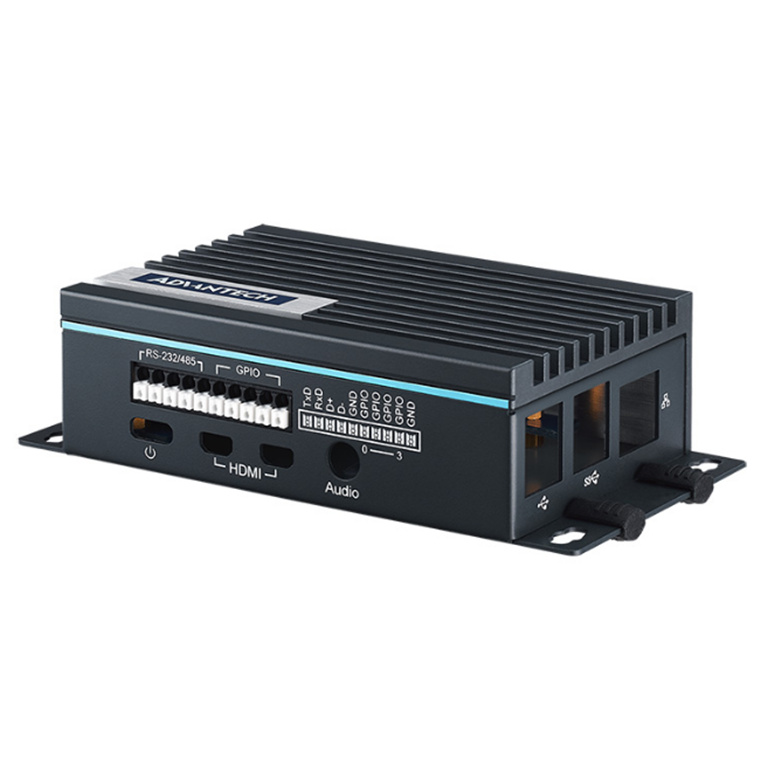

Advantech UNO-220-P4N2AE Industrial Raspberry Pi 4 Gateway Kit with POE, 1 x RS-232/485, 4 x GPIO, 8 GB SD card, and AdvRaspbian OS
Advantech UNO-220-P4N2AE Industrial Raspberry Pi 4 Gateway Kit with POE, 1 x RS-232/485, 4 x GPIO, 8 GB SD card, and AdvRaspbian OS
- Brand: Advantech
- MPN: UNO-220-P4N2AE
- Part #: IPCAVH120002
- UPC:
View all shipping info
- Brand: Advantech
- MPN: UNO-220-P4N2AE
- Part #: IPCAVH120002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech UNO-220-P4N2AE Industrial Raspberry Pi 4 Gateway Kit with POE, 1 x RS-232/485, 4 x GPIO, 8 GB SD card, and AdvRaspbian OS
- Brand: Advantech
- MPN: UNO-220-P4N2AE
- Part #: IPCAVH120002

Product URL: https://www.pbtech.com/au/product/IPCAVH120002/Advantech-UNO-220-P4N2AE-Industrial-Raspberry-Pi-4
Features
UNO-220 is a power and I/O board designed for end users using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in unique IoT applications. Featuring a system-image OS equipped micro 8GB SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 industrial-grade chassis transforms RPi 4 into an intelligent gateway. UNO-220 also features pre-finished mounting holes and attachment screws enabling plug-and-play assembly with separately purchased RPi 4 SBCs. It provides developers with a complete RPi 4-ready industrial-grade gateway kit, which is ideal for rapid prototyping and mass deployment.
- Industrial-grade power and I/O gateway kit installed with Raspbian OS provides RPi 4 -ready solutions for rapid prototyping
- UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environments
- An power and industrial I/O board for RS-232/485 and GPIO extension
- Amazon AWS IoT Greengrass certified
For more information: https://advdownload.advantech.com.cn/productfile/PIS/UNO-220/file/UNO-220_DS(082124)20240822101209.pdf

Specifications
MPN
UNO-220-P4N2AE
Environment
Ingress Protection
IP40
Operating Temperature
0~50 °C (32~122 °F)
Relative Humidity
10~95% RH (non-condensing)
Hardware
Certification
CE, FCC
OS Support
Raspbian
Storage
1 x 8 GB Micro SD card
I/O
8 x GPIO
Watchdog Timer
1~255 s
Mechanical
Dimension (W x H x D)
100 x 70 x 32 mm
Enclosure
Aluminum housing
Weight (Net)
0.5 kg (1.1 lb)
Mounting
Stand, Din-rail
