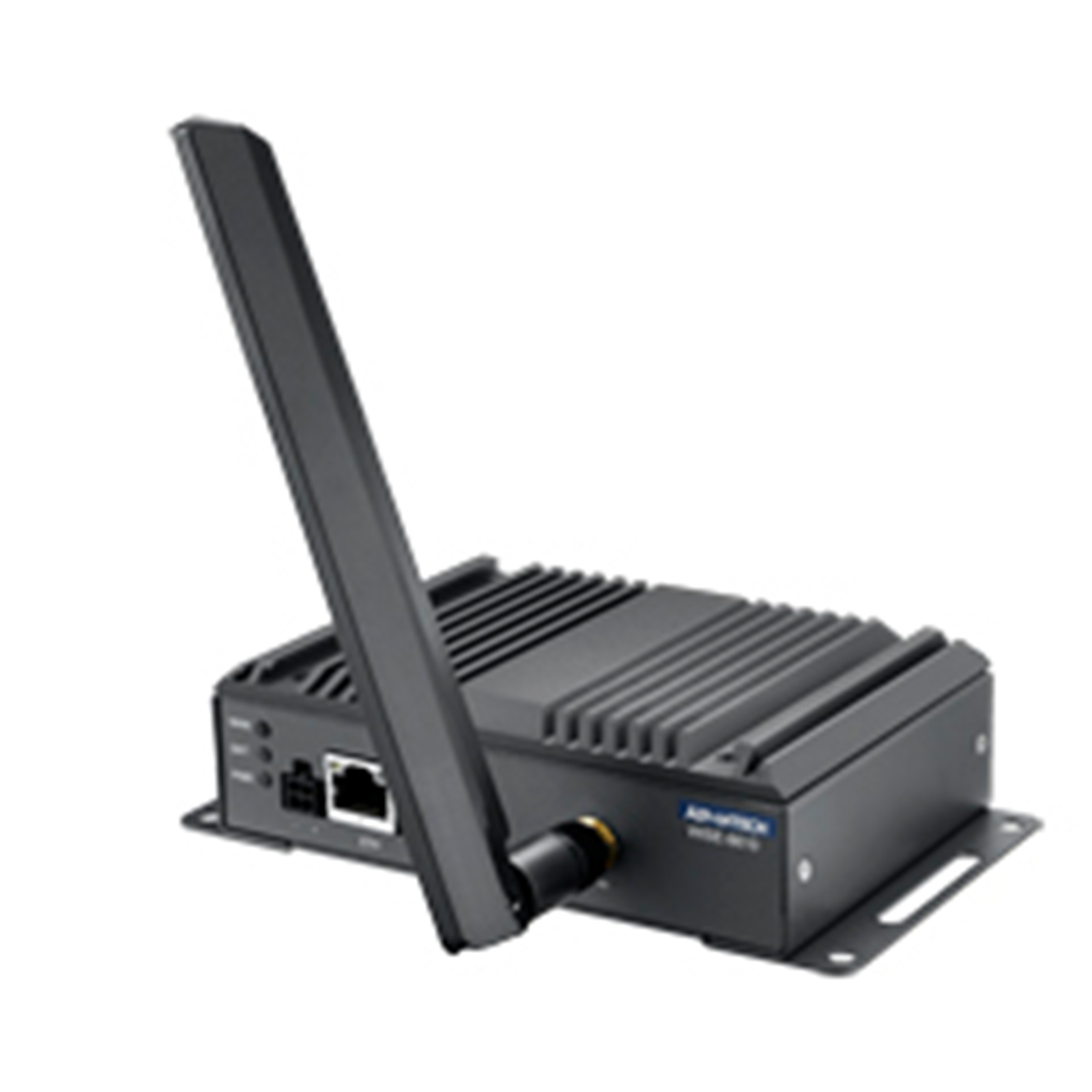

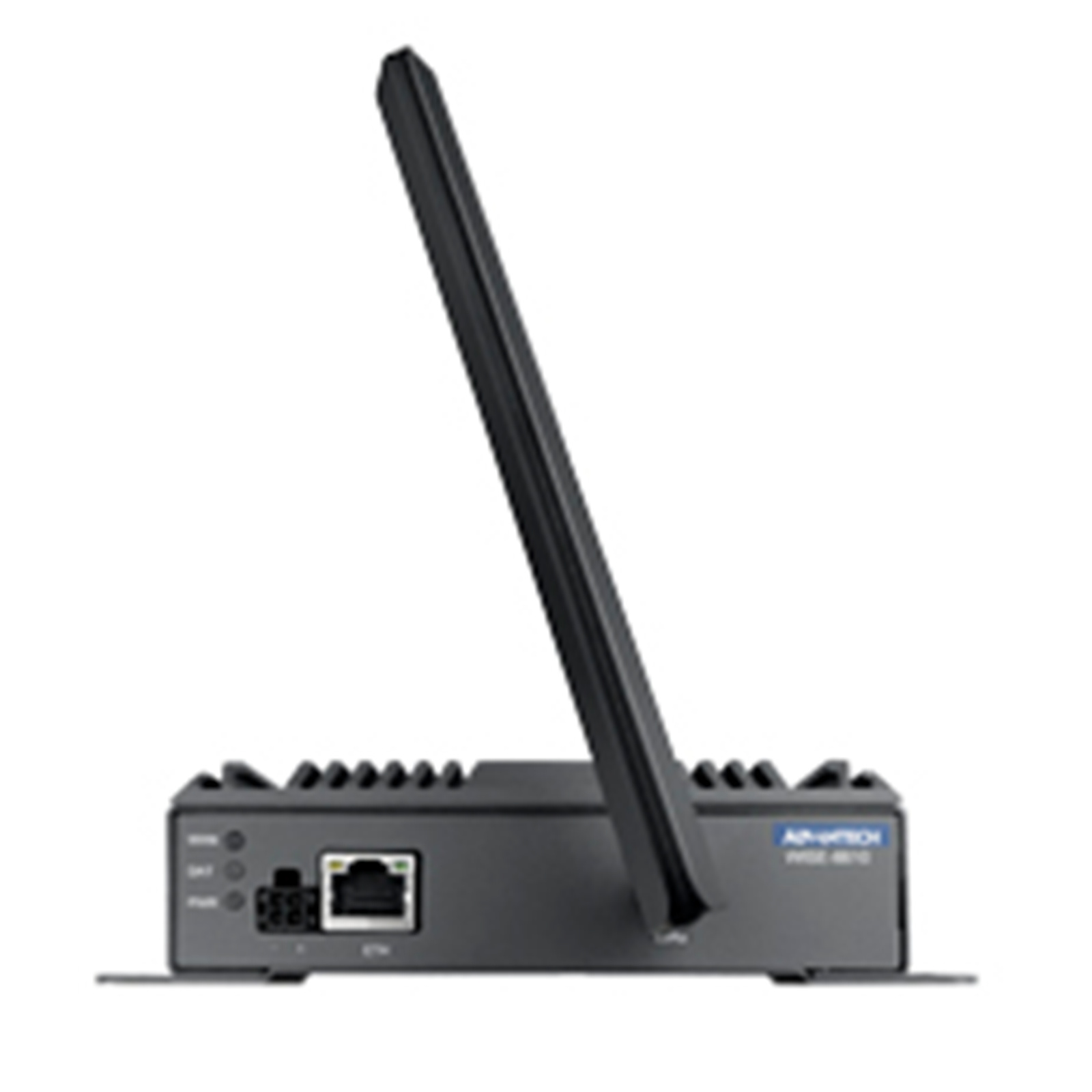

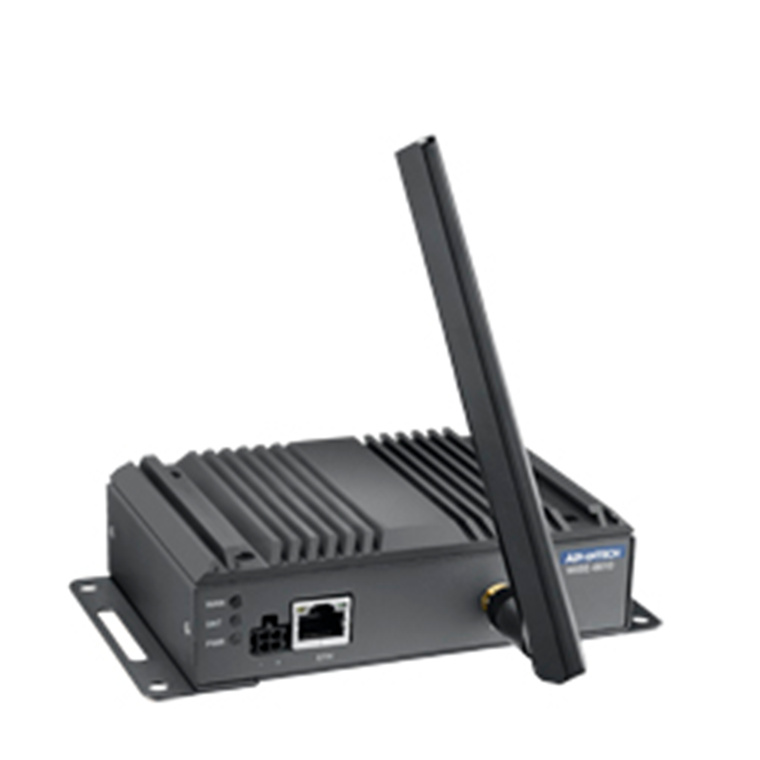

Advantech WISE-6610-A100-A Hardened LoRaWAN 8-Channel Gateway AS 923 MHz - Support 100 nodes
Advantech WISE-6610-A100-A Hardened LoRaWAN 8-Channel Gateway AS 923 MHz - Support 100 nodes
- Brand: Advantech
- MPN: WISE-6610-A100-A
- Part #: IPCAVH140009
- UPC:
View all shipping info
- Brand: Advantech
- MPN: WISE-6610-A100-A
- Part #: IPCAVH140009
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech WISE-6610-A100-A Hardened LoRaWAN 8-Channel Gateway AS 923 MHz - Support 100 nodes
- Brand: Advantech
- MPN: WISE-6610-A100-A
- Part #: IPCAVH140009

Product URL: https://www.pbtech.com/au/product/IPCAVH140009/Advantech-WISE-6610-A100-A-Hardened-LoRaWAN-8-Chan
Features
- Redundancy-enhanced functions for continuous data transmission
- Enhanced memory for hosting custom software applications
- Low power consumption for solar and battery power applications
- Ethernet and I/O for connecting a wide array of field assets
- DIN rail and wall mounting design
- Long-range wide area IoT gateway
- RED compliance
Specifications
Certification
RF
RCM/NCC
EMC
RCM
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
LoRa
LoRa
RCM
RCM
Environment
Temperature (Operating Range)
-40 ~ 75°C (-40 ~ 167°F) x
Relative Humidity
10 ~ 95% RH
Temperature (Storage Range)
-40 ~ 80°C (-40 ~ 176°F) x
Ethernet Communication
RJ-45 Transmission Speed
10/100 Mbps
RJ-45 Port Number
1
RJ-45 Port Connector Type !
RJ-45
I/O Communication
Digital I/O Port Connectorl
4-way Molex moni-fit connector
Mechanism
Mounting (DIN-rail)
Yes
LED Indicator
PWR, DAT, WAN, ETH
Dimensions (W x H x D)
150 x 37.5 x 83 mm (5.9 x 1.48 x 3.27 in.)
IP Rating
IP30
Weight
0.52 kg
Mounting (Wall)
Yes
Power
Power Input (DC)
9 ~ 36 VDC
Redundant Dual Inputs
Yes x
Power Consumption
9W
Software (SW)
OS Support (X)
Linux
Configuration
SSH, Web Browser
Protocols
DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup Routers, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging, Network Server
Wireless Communication
Wi-Fi Standard
LoRaWAN
Wi-Fi Antenna Connector Type
RP-SMA Female
Wi-Fi Antenna Number
1
Wi-Fi Free Space Range
10km
Frequency
923 MHz
