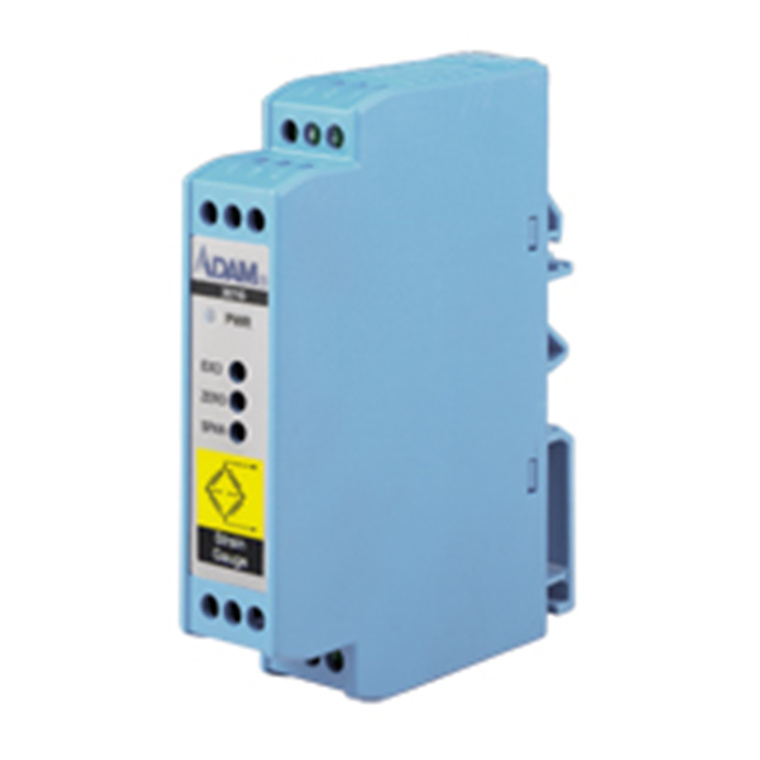

Advantech ADAM-3016-AE Isolated Strain Gauge Input Module
- Brand: Advantech
- MPN: ADAM-3016-AE
- Part #: IPCAVH220005

Product URL: https://www.pbtech.com/au/product/IPCAVH220005/Advantech-ADAM-3016-AE-Isolated-Strain-Gauge-Input
Features
ADAM-3016
Isolated Strain Gauge Input Module
- 1000 VDC 3-way optical isolation
- Switch configurable mV or V input of full bridge
- Switch configurable voltage and current outputs
Specifications
I/O
Accuracy
±0.1% of full range
Bandwidth
2.4 kHz (typical)
Isolation Mode Rejection
>100 dB @ 50 Hz/60 Hz
Current Output
Current: 0 ~ 20 mA
Current load resistor: 0 ~ 500 O (Source)
Stability (Temperature Drift)
150 ppm (typical)
Voltage Specifications
Electrical input: ±10 mV, ±20 mV, ±30 mV, ±100 mV
Excitation voltage: 1 ~ 10 VDC (60 mA max)
Voltage Output
Bipolar: ±5 V, ±10 V
Unipolar: 0 ~ 10 V
Impedance: < 50 O
General
Connectors
Screw terminal
Enclosure
ABS
Indicators
Power LED indicator
Isolation
1,000 VDC (Three-way)
Power Consumption
= 1.85 W (voltage output)
= 2.15 W (current output)
Power Input
24 VDC ±10%
Dimensions (W x H x D)
23.2 x 101 x 93.5 mm (0.91" x 3.97" x 3.68")
Operating Temperature
-10 ~ 70 °C (14 ~ 158 °F)
Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
