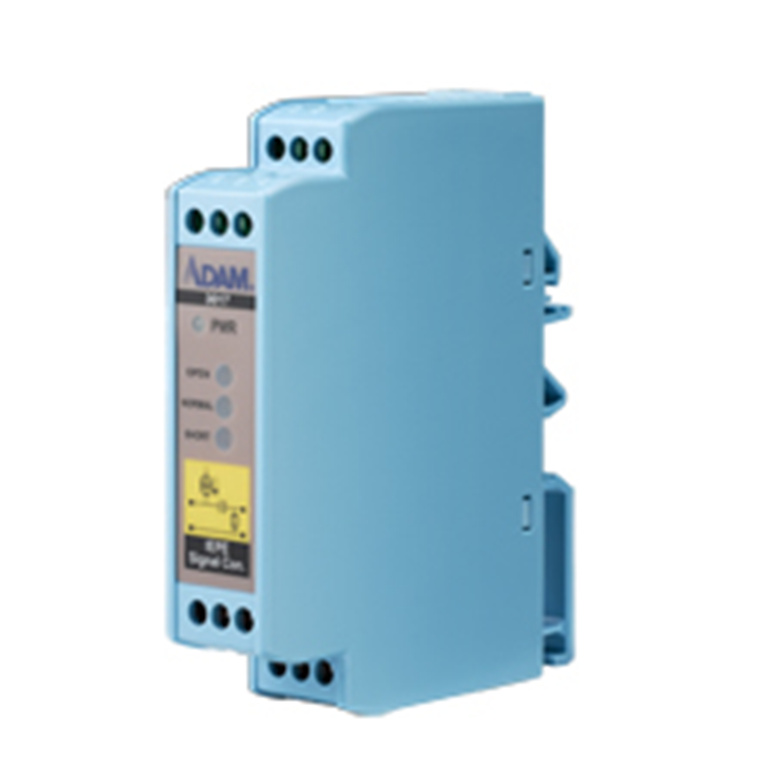

Advantech ADAM-3017-AE External Powered IEPE Signal Conditioner
- Brand: Advantech
- MPN: ADAM-3017-AE
- Part #: IPCAVH220006

Product URL: https://www.pbtech.com/au/product/IPCAVH220006/Advantech-ADAM-3017-AE-External-Powered-IEPE-Signa
Features
ADAM-3017
External Powered IEPE Signal Conditioner
- IEPE current support: 4, 6, 10 mA
- External powered operation eliminates line noise
- LED indicator for sensor open, short and normal
Specifications
Integrated Electronic Piezoelectric (IEPE)Excitation
Channels
1
Upper Cut-Off Frequency (for all couple settings)
x1, x10 gain (-5%) 100 kHz
x100 gain (-1%) 50 kHz
Lower Cut-Off Frequency (-3dB, 1 MO load, for all gain settings)
DC Couple DC
AC Couple (1 µF) 0.58 Hz
AC Couple (47 µF) 0.012 Hz
Accuracy
< ±2% for all gain settings
Compliance
> 24 V
Current
0, 4, 6, or 10 mA ± 5%
Discharge Time Constant (1 MO load, for all gain settings)
DC Couple 0 second
AC Couple (1 µF) > 0.3 seconds
AC Couple (47 µF) > 13 seconds
DC Offset
< 30 mV
Isolation Protection
Input/Output to Power
1,000 VDC
General
I/O Connectors
Screw terminal (Including a female BNC to terminal block adaptor)
Dimensions (W x H x D)
23.2 x 101 x 93.5 mm (0.91" x 3.97" x 3.68")
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95% RH, non-condensing
