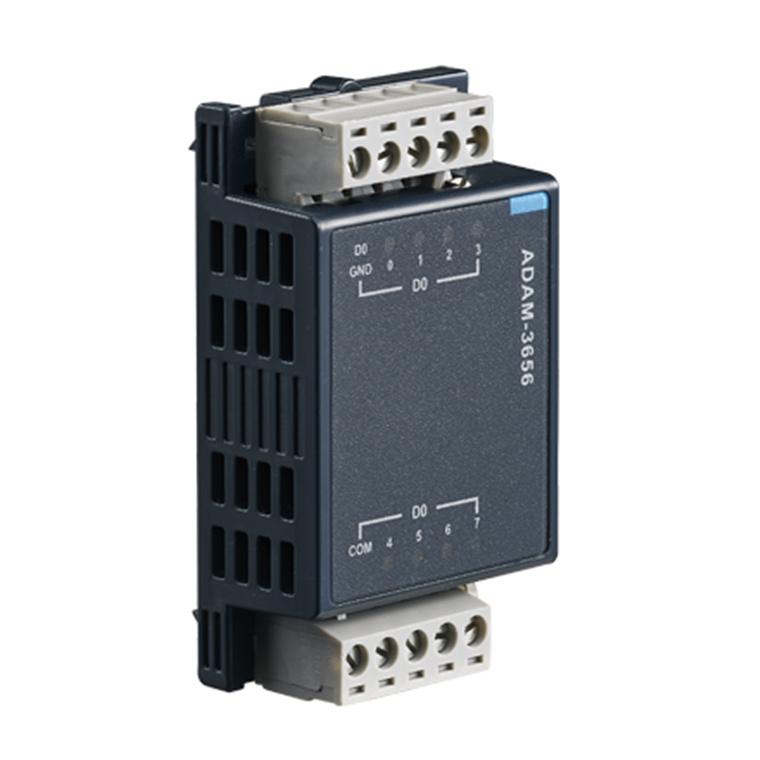

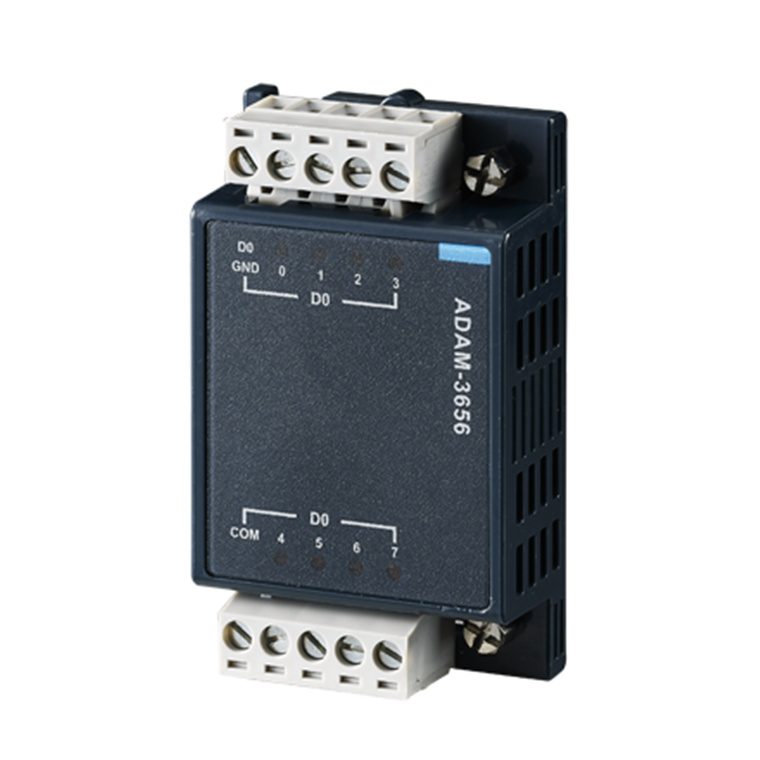

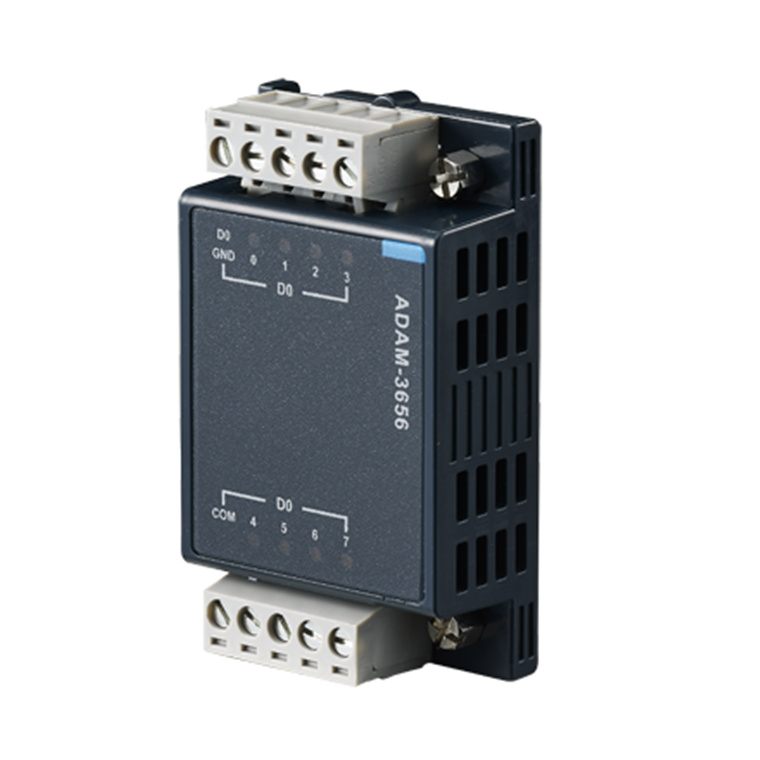

Advantech ADAM-3656-AE 8DO Remote I/O Module for ADAM-3600
Advantech ADAM-3656-AE 8DO Remote I/O Module for ADAM-3600
- Brand: Advantech
- MPN: ADAM-3656-AE
- Part #: IPCAVH220014
- UPC:
View all shipping info
- Brand: Advantech
- MPN: ADAM-3656-AE
- Part #: IPCAVH220014
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech ADAM-3656-AE 8DO Remote I/O Module for ADAM-3600
- Brand: Advantech
- MPN: ADAM-3656-AE
- Part #: IPCAVH220014

Product URL: https://www.pbtech.com/au/product/IPCAVH220014/Advantech-ADAM-3656-AE-8DO-Remote-IO-Module-for-AD
Features
ADAM-3656
8-ch Digital Output Module
- Rated voltage : 8 ~ 30 VDC
- Supports open collector (Sink) output type
- Over voltage protection : +40 VDC
- Opto-isolator response time : 150 us (max)
- Pulse output frequency : 1 KHz
- Isolation voltage : 2000 VDC
- Rated current : 200 mA (max load)
- -40 ~ 70°C operating temperature
Specifications
General
Power Consumption
1 W (max.)
Certification
CE/FCC
Digital Output
Channels
8
Output Type
Open Collector (Sink)
OC Output
Rated Voltage 8 ~ 30 VDC
Rated Current 200 mA (max load)
Over Voltage
+40 VDC
Pulse Output Frequency
1 KHz
Response time
Opto-isolator
150 us (max)
Protection
Isolation Voltage
2000 VDC
Environment
Operating Temp.
-40 ~ 70°C
Storage Temp.
-40 ~ 85°C
Humidity
5 ~ 95% (no-condensation)
