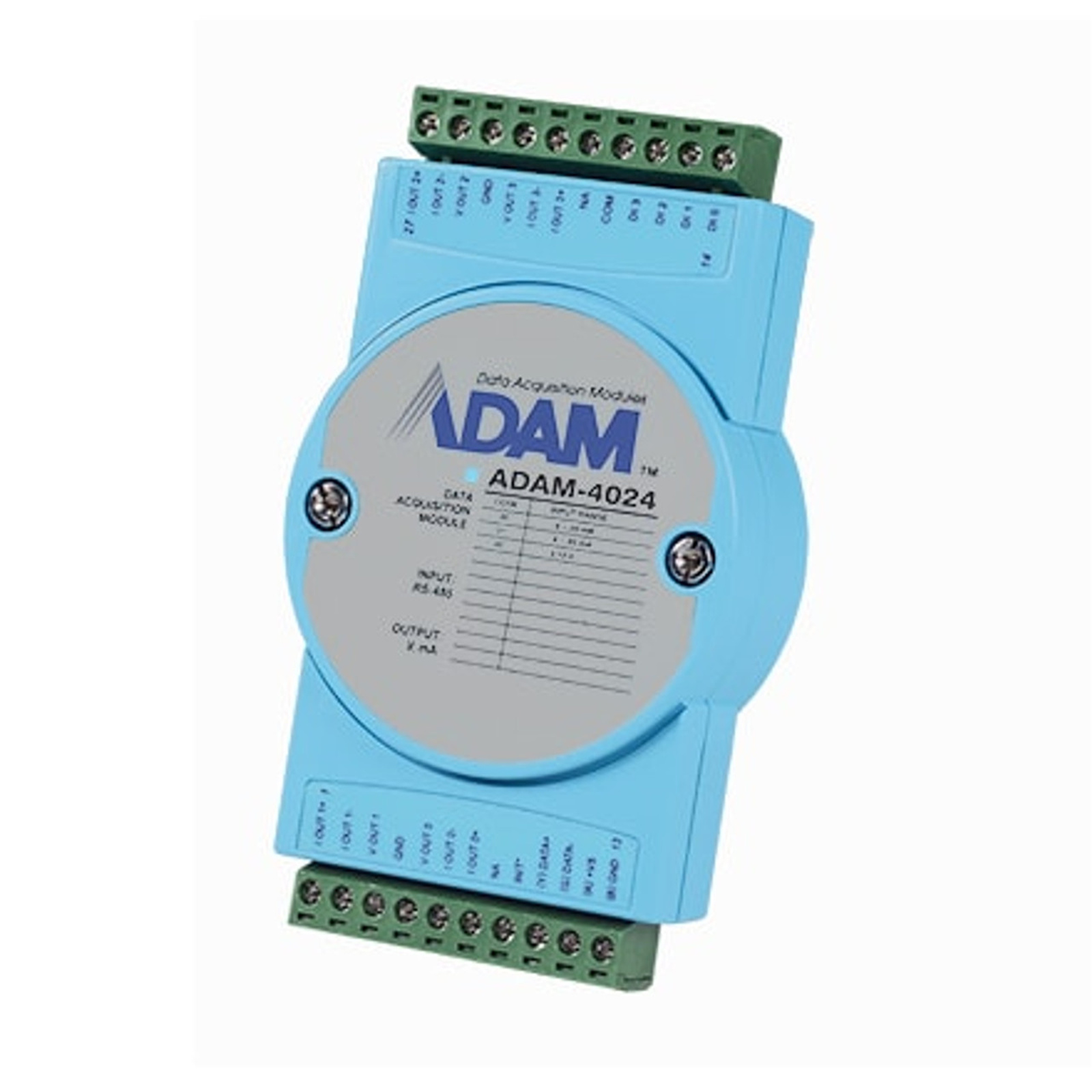

Advantech ADAM-4024-B1E 4AO/4DI Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4024-B1E
- Part #: IPCAVH220048

Product URL: https://www.pbtech.com/au/product/IPCAVH220048/Advantech-ADAM-4024-B1E-4AO4DI-Modbus-RS-485-Remot
Features
Advantech ADAM-4024-B1E 4AO/4DI Modbus RS-485 Remote I/O
- 4ch analog output/4ch digital input
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 3000VDC isolation protection
Specifications
General
?Connectors
2 x plug-in terminal blocks (#14 ~ 28 AWG)
Power Consumption
3 W @ 24 V DC
Watchdog Timer
System (1.6 second) & Communication
Supported Protocols
ASCII command and Modbus/RTU
Analog Output
?Channels
4
Output Impedance
0.5 O
Output Range
0 ~ 20 mA, 4 ~ 20mA, ±10 V
Output Type
mA, V (Differential)
Accuracy
±0.1 % of FSR for current output
±0.1 % of FSR for voltage output
Current Load Resistor
Max. 500 O (source)
Voltage Load Resistor
Min. 1K O
Resolution
12-bit
Isolation Voltage
3,000 V DC
Programmable
0.125 ~ 128 mA/sec.
Output Slope
0.0625 ~ 64.0 V/sec.
Span Temperature
±25 ppm/°C
?Zero Drift
Voltage output: ±30 µV/°C
Current output: ±0.2 µA/°C
Digital Input
Channels
4
Input Level
Logic level 0: 1 V max.
Logic level 1: 10 ~ 30 V DC
Isolation Voltage
3,000 V DC
