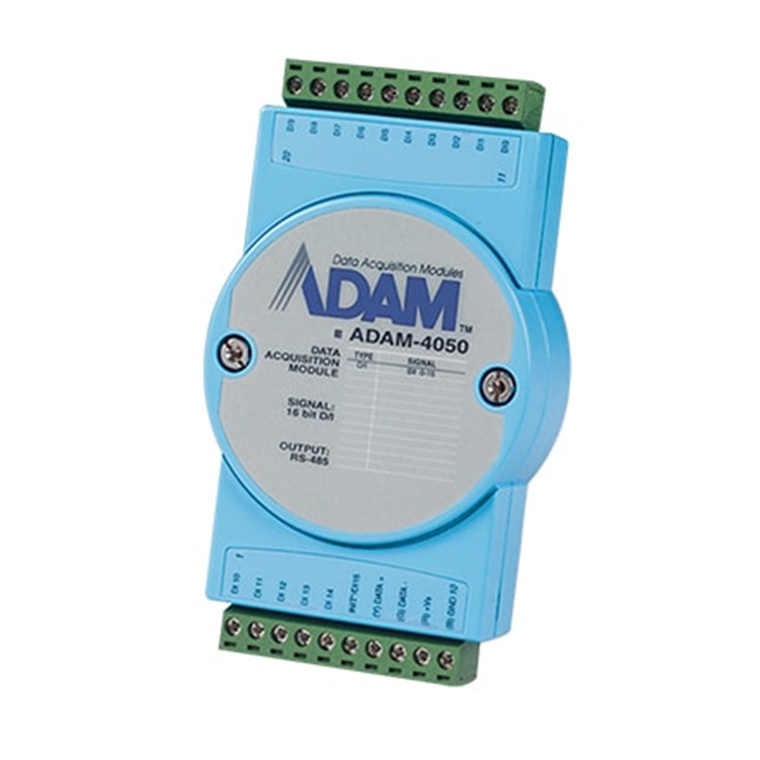

Advantech ADAM-4050-F 8DI/8DO RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4050-F
- Part #: IPCAVH220049

Product URL: https://www.pbtech.com/au/product/IPCAVH220049/Advantech-ADAM-4050-F-8DI8DO-RS-485-Remote-IO
Features
ADAM-4050
8DI/8DO RS-485 Remote I/O
- 8ch digital input/8ch digital output
- Protocols: Modbus RTU,ASCII
- Watchdog timer to recover the system
Specifications
General
Certification
FCC, CE
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
0.2 W @ 24 V DC typ.
0.4 W @ 24 V DC max.
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command and Modbus/RTU
Digital Input
Channels
8
Input Level
Dry contact:
Logic level 0: Closed to GND
Logic level 1: Open
Wet contact:
Logic level 0: 1 V max
Logic level 1: +3.5 ~ 30 V or floating
Pull up current: 0.5 mA, 10 k? resistor to 5 V
Support DO type: Sink (NPN) only
Digital Output
Channels
8
open collector to 30 V, 30 mA max. load
Power Dissipation
300 mW
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
- 10 ~ 70°C (14 ~ 158°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
