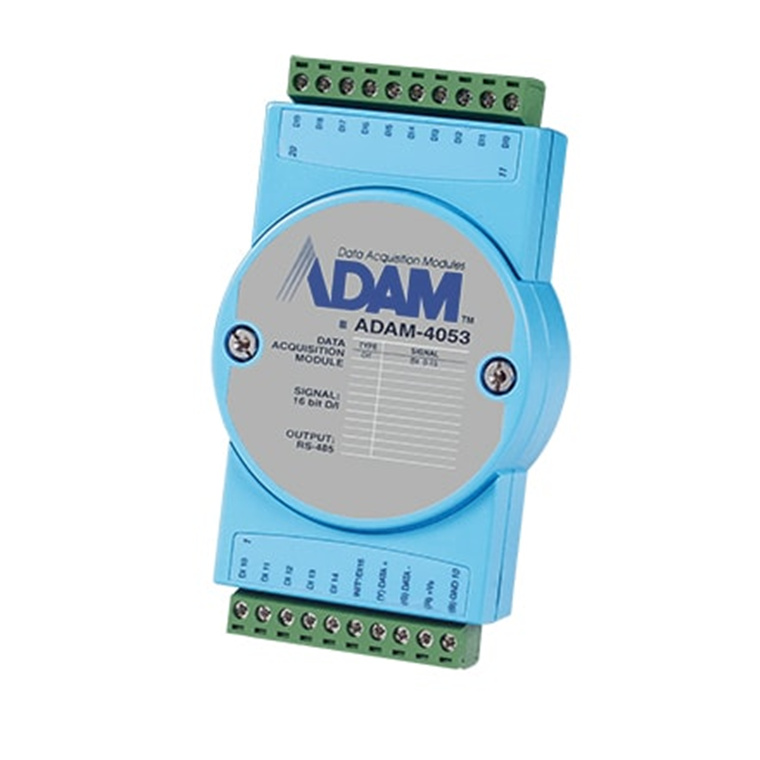

Advantech ADAM-4053-F 16DI RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4053-F
- Part #: IPCAVH220054

Product URL: https://www.pbtech.com/au/product/IPCAVH220054/Advantech-ADAM-4053-F-16DI-RS-485-Remote-IO
Features
ADAM-4053
16DI RS-485 Remote I/O
- 16ch digital input
- Protocols: Modbus RTU,ASCII
- Watchdog timer to recover the system
Specifications
General
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
0.4 W @ 24 V DC typ.
0.7 W @ 24 V DC max.
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command and Modbus/RTU
Digital Input
Channels
16
Input Level
Dry contact:
Logic level 0: Closed to GND
Logic level 1: Open
Wet contact:
Logic level 0: 2 V
Logic level 1: 4 ~ 30 V or floating
Support DO type: Sink (NPN) only
Effective Distance
500 m max. (dry contact only)
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Humidity
5 ~ 95% RH
Operating Temperature
-10 ~ 70°C (14 ~ 158° F)
Storage Temperature
-25 ~ 85°C (-13 ~ 185° F)
