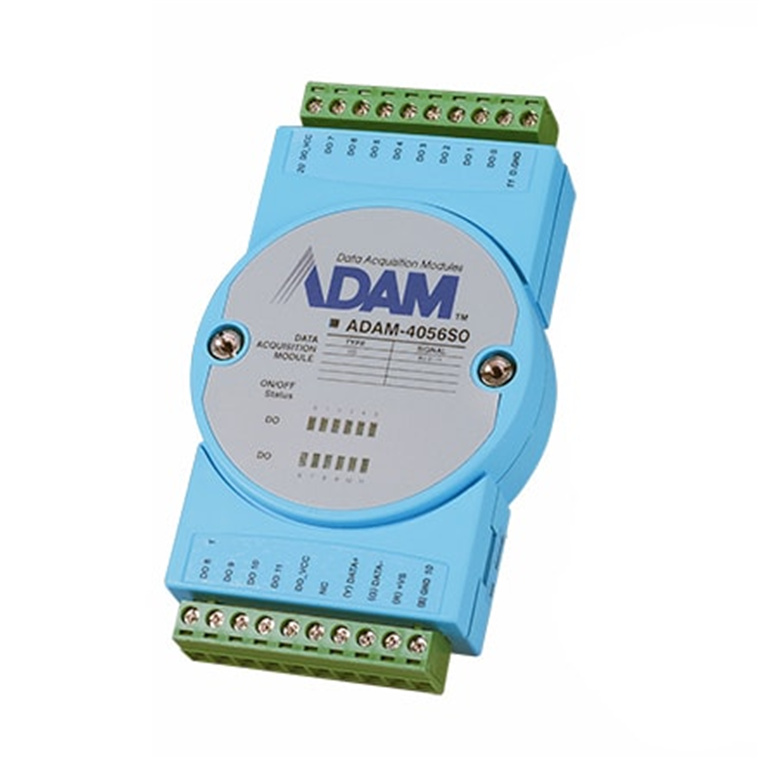

Advantech ADAM-4056SO-B 12DO(Source type) Modbus RS-485 Remote I/O
Advantech ADAM-4056SO-B 12DO(Source type) Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4056SO-B
- Part #: IPCAVH220059
- UPC:
View all shipping info
- Brand: Advantech
- MPN: ADAM-4056SO-B
- Part #: IPCAVH220059
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech ADAM-4056SO-B 12DO(Source type) Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4056SO-B
- Part #: IPCAVH220059

Product URL: https://www.pbtech.com/au/product/IPCAVH220059/Advantech-ADAM-4056SO-B-12DOSource-type-Modbus-RS
Features
ADAM-4056SO
12DO(Source type) Modbus RS-485 Remote I/O
- 12ch source type digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 5000VDC isolation protection
Specifications
General
Certification
FCC, CE
Connectors
2 x Plug-in terminal blocks (#14 ~ 22 AWG)
Watchdog Timer
System (1.6 second) & Communication
Support Protocol
ASCII command and Modbus/RTU
Isolation Voltage
5000 VDC
LED Indicators
Yes
Power Consumption
0.3 W @ 24 V DC typ.
0.5 W @ 24 V DC max.
ADAM-4056SO
Digital Output
12
Channels
VCC: 10 ~ 35 VDC
Current: 1A (per channel)
Digital Output Type
Source
General
Power Input
Unregulated 10 ~ 30 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
-10 ~ 70°C (14 ~ 158°F)
Storage Temperature
-25 ~ 85°C (-13 ~ 185°F)
