Advantech ADAM-4115-C 6RTD Robust Modbus RS-485 Remote I/O
- Brand: Advantech
- MPN: ADAM-4115-C
- Part #: IPCAVH220072

Product URL: https://www.pbtech.com/au/product/IPCAVH220072/Advantech-ADAM-4115-C-6RTD-Robust-Modbus-RS-485-Re
Features

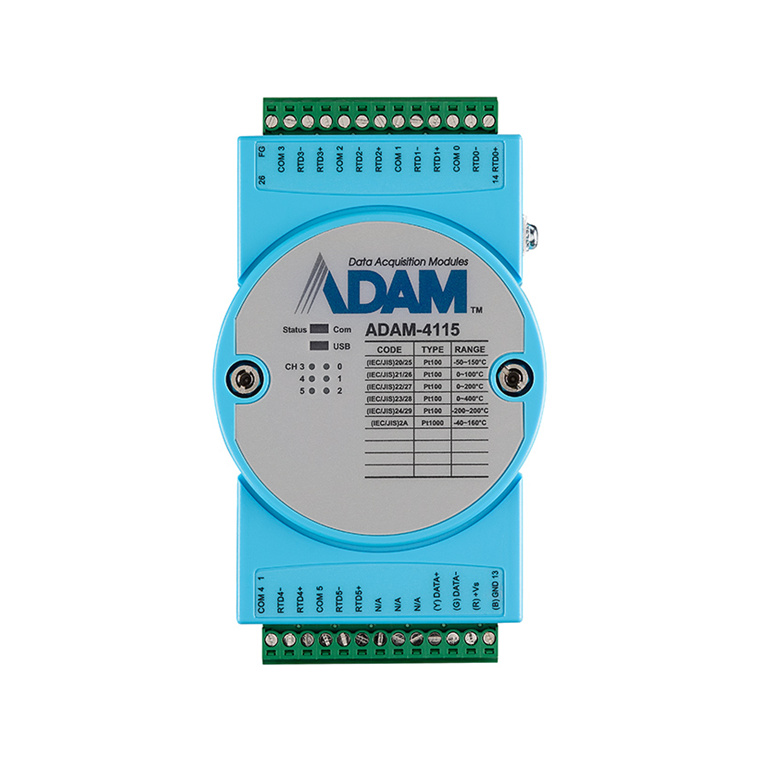

ADAM-4115-C
The ADAM-4115 6-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series.
- Robust 6 channels RTD input module
- Broader operating temperature range: -40 ~ 85°C
- Broader power input Range: +10~+48 VDC
- Higher noise immunity: 4 kV surge protection on power inputs, 4 kV EFT, and ESD (8kV Air, 6kV contact) protection
- Online firmware update
Specifications
General
Certification
CE, FCC
Connectors
2 x plug-in terminal blocks (#14 ~ 22 AWG)
Power Consumption
1.2 W @ 24 VDC
Watchdog Timer
System (1.6 second)
Supported Protocols
ASCII command and Modbus/RTU
Interface
RS-485, Micro USB
RTD Input
Channels
6 differential
Input Connections
2, 3-wire
Sampling Rate
10/100 Hz total channels (selected by utility)
Input Type
Pt, Balco and Ni RTD
RTD Types and Temperature Ranges
Pt 100 RTD:
Pt -50°C to 150°C
Pt 0°C to 100°C
Pt 0°C to 200°C
Pt 0°C to 400°C
Pt -200°C to 200°C
Pt 1000 RTD
Pt -40°C to 160°C
Balco 500 RTD
-30°C to 120°C
Ni 50 RTD
Ni -80°C to 100°C
Ni 508 RTD
Ni 0°C to 100°C
Accuracy
±0.1%
Span Drift
± 25 ppm/°C
Zero Drift
±6 µV/° C
General
Power Input
Unregulated 10 ~ 30 VDC
ADAM-4115: 10 ~ 48 VDC
Environment
Operating Humidity
5 ~ 95% RH
Operating Temperature
-10 ~ 70°C (14 ~ 185°F)
ADAM-4115: -40 ~ 85°C (-40 ~ 185°F)
Storage Temperature
- 25 ~ 85°C (-13 ~ 185°F)
ADAM-4115: -40 ~ 85°C (-40 ~ 185°F)
