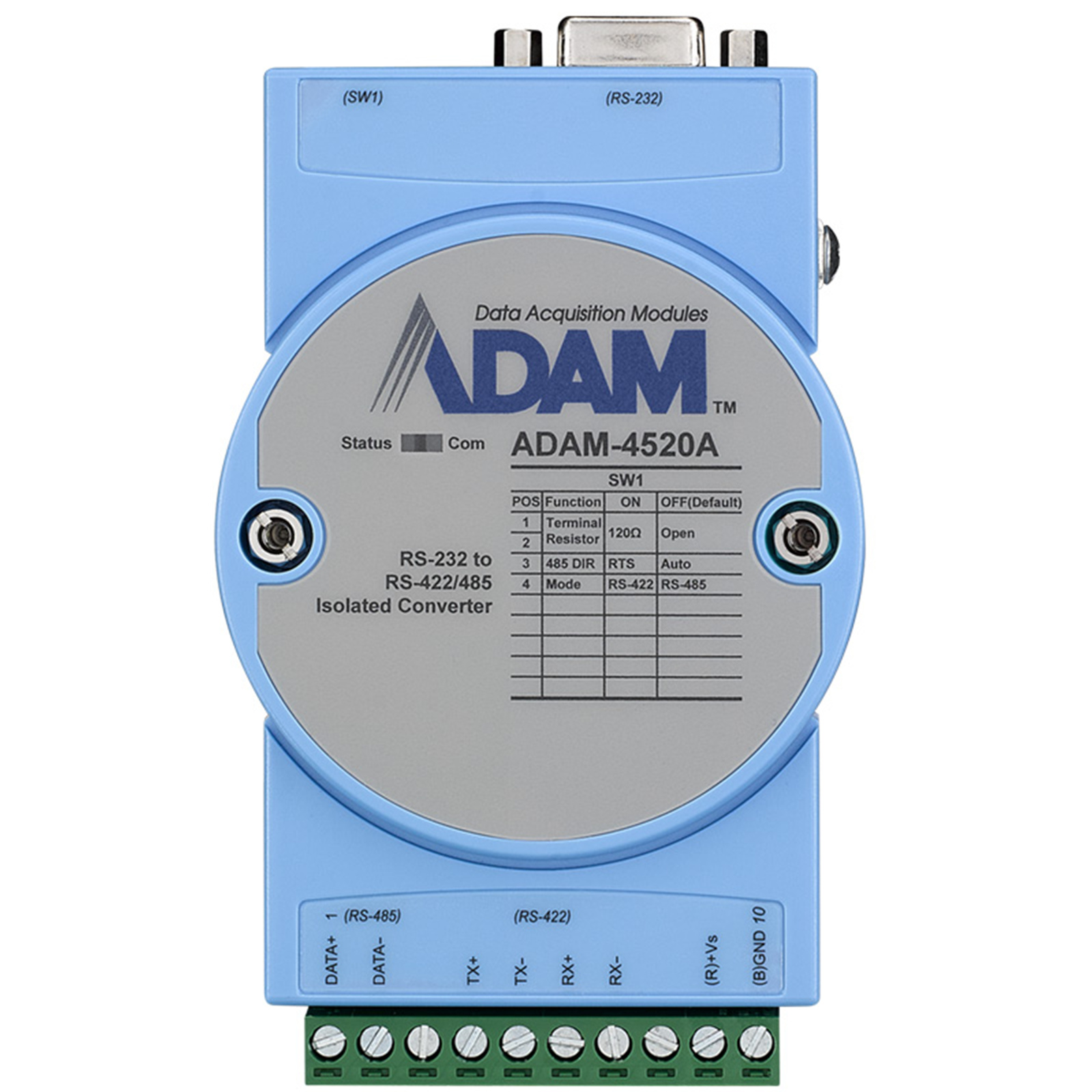

Advantech ADAM-4520A-A Robust RS-232 to RS-422/485 Isolated Converter
- Brand: Advantech
- MPN: ADAM-4520A-A
- Part #: IPCAVH220092

Product URL: https://www.pbtech.com/au/product/IPCAVH220092/Advantech-ADAM-4520A-A-Robust-RS-232-to-RS-422485
Features
- Convert RS-232 to RS-422/485 signals
- Extend RS-232 data signals up to 1.2 km
- Data rate: 115.2 kbps
- 3000 VDC Isolation
- Auto-detection on baud rate / data format
- DIP switch for RS-422 or RS-485 selection
- Build-in 120 ohm termination resistors
- Power requirement +10 to +48 VDC
- Operating Temperature -40 ~ 85° C (-40 ~ 185° F)
Specifications
General
Connectors
1 x plug-in terminal block (#14 ~ 22 AWG)
(RS-422/485)
1 x DB9-F (RS-232)
?Isolation Voltage
3,000 VDC
Power Consumption
Typical: 0.6 W @ 24 VDC
Max.: 0.8 W @ 24 VDC
Serial Communications
?Input
RS-232 (DB9)
Output
RS-485 (2-wire) or RS-422 (4-wire)
Baudrate
115.2 kbps, max. (RTS control and RS-422 mode switchable
