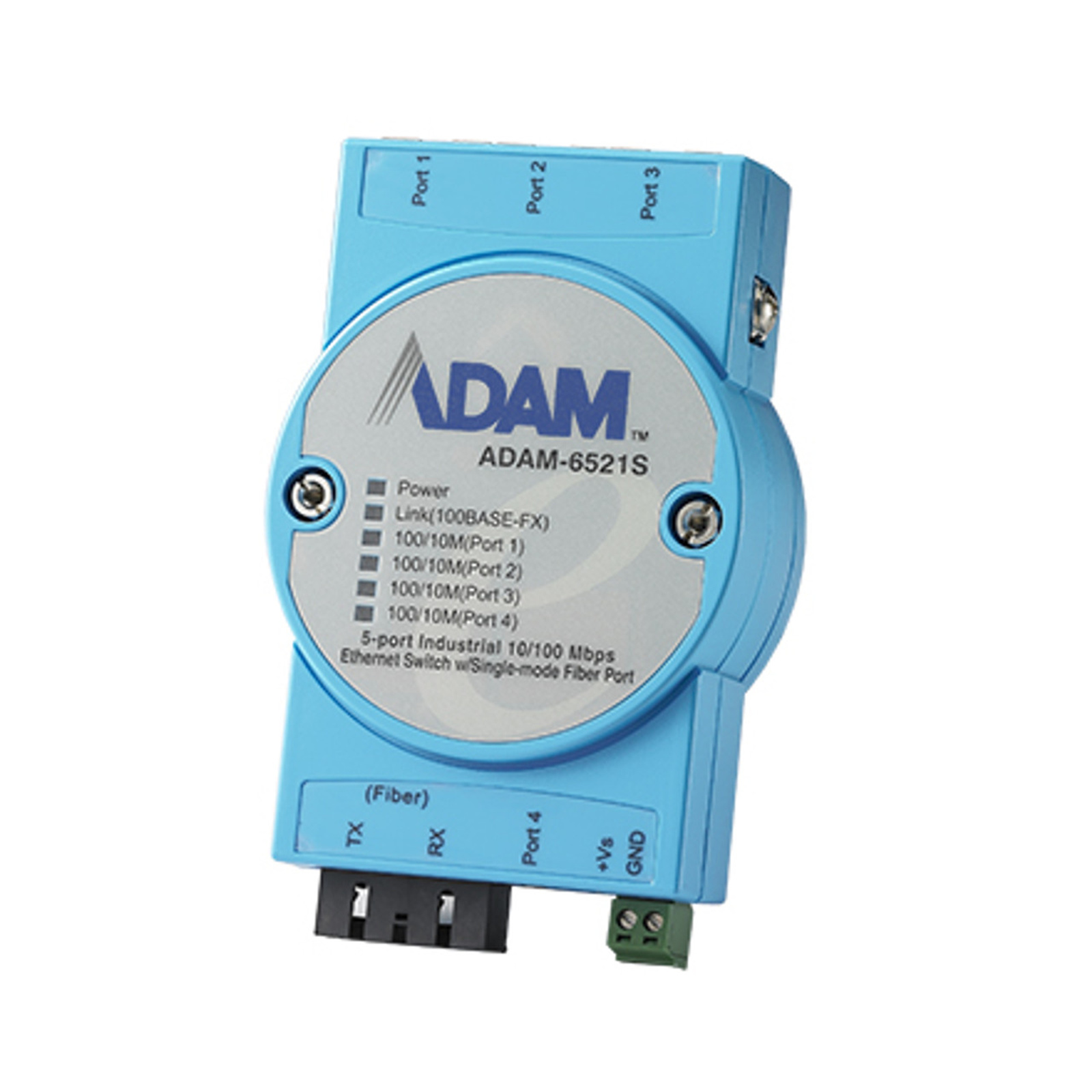

Advantech ADAM-6521S-AE 4+1 port SC Single-mode Unmanaged Ethernet Switch, Flexible mounting
- Brand: Advantech
- MPN: ADAM-6521S-AE
- Part #: IPCAVH220174

Product URL: https://www.pbtech.com/au/product/IPCAVH220174/Advantech-ADAM-6521S-AE-41-port-SC-Single-mode-Unm
Features
4FE+1FE SC Single-mode Unmanaged Ethernet Switch, Flexible mounting
- Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC connector
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Embedded with a switch controller, supports auto-negotiation
- Embedded with the memory buffer, supports store-and-forward transmission
- Support +10 ~ 30 VDC voltage and provides surge protection 3000 VDC for power line
- Provides flexible mountings: DIN-rail, panel, piggyback
- Supports operating temperature: -10 ~ 65°C
Specifications
Certification
EMI
CE, FCC
EMS
-
Safety
UL/cUL 60950-1
Environment
Temperature (Min. Operating)
-10°C (14°F)
Temperature (Max. Operating)
70°C (158°F)
Operating Temperature
-10 ~ 70°C (14 ~ 158°F), Stack: -10~ 60°C (-40 ~ 140°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Ethernet Communication
Fiber Port Number
1
Fiber Port Interface
Single-Mode
Fiber Port Connector Type
SC Type
Fiber Transmission Distance
15 km
Fiber Transmission Speed
100 Mbps
RJ-45 Port Number
4
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Stack)
Yes
Mounting (Panel)
-
Mounting (Wall)
Yes
Mounting (Rack Mount)
-
Mounting (Pole Mount)
-
Dimensions (W x H x D)
70 x 112 x 27 mm
Enclosure (Metal)
-
Enclosure (Plastic)
Yes
IP Rating
IP30
Weight
-
PoE Information
PoE Port Number
-
PoE Budget
-
PoE Output
-
Support PoE
No
Power
Power Connector Type
2-pin removable screw terminal
Power Consumption
4W
Power Input (AC)
-
Power Input (DC)
1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)
-
Power Input (Battery)
-
Power Operating Current
-
Switch Properties
Jumbo Frame
-
MAC Table Size
-
Packet Buffer Size
-
Switch Fabric Speed
-
Protection
Overload Current
-
Reverse Polarity
-
