Advantech BB-UHR204 ULI-414I USB 2.0 Hub, 4 Port, Industrial
- Brand: Advantech
- MPN: BB-UHR204
- Part #: IPCAVH220367

Product URL: https://www.pbtech.com/au/product/IPCAVH220367/Advantech-BB-UHR204-ULI-414I-USB-20-Hub-4-Port-Ind
Features

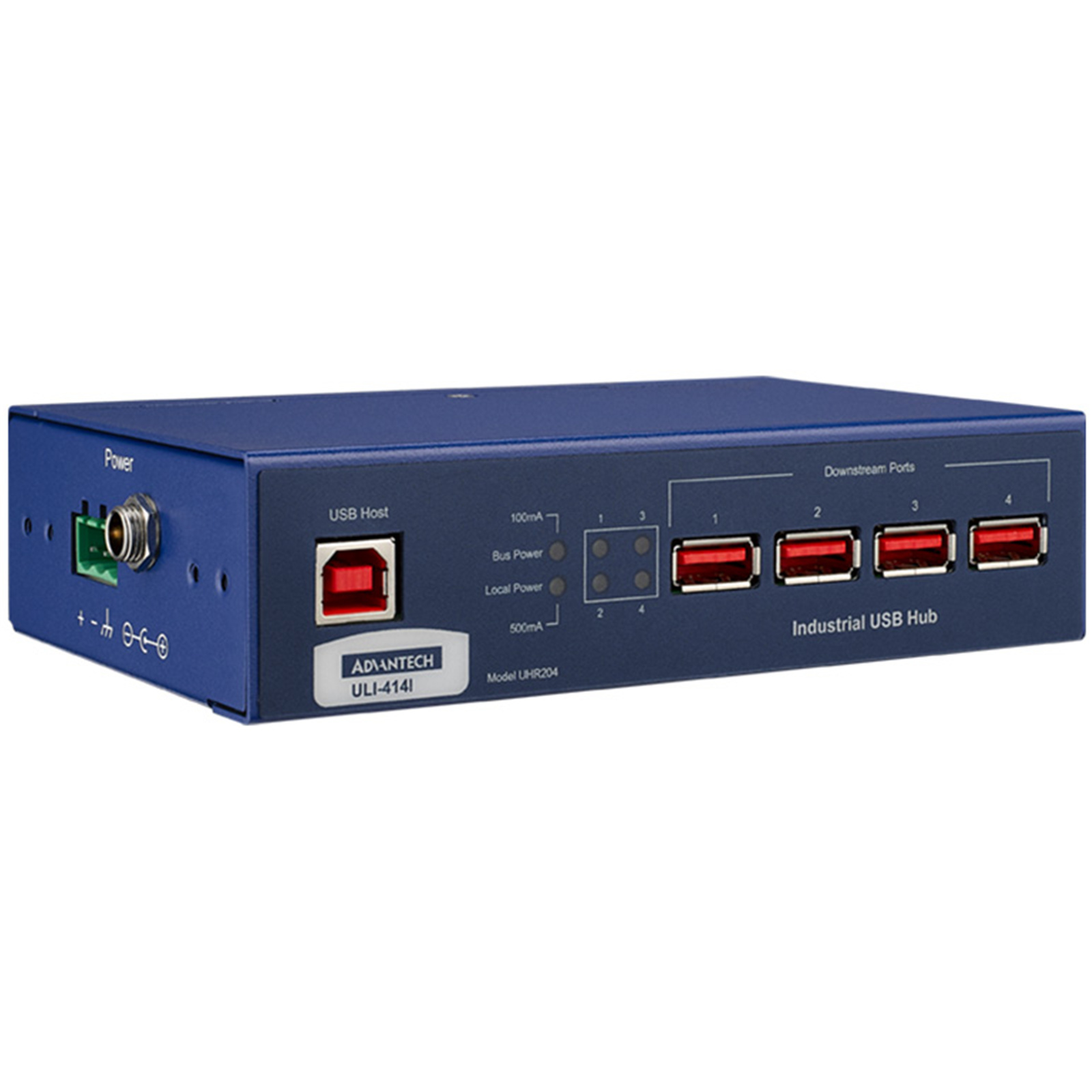

BB-UHR204 ULI-414I - Industrial USB 2.0 Hub, 4 Ports with High Retention Connectors
- Expands one USB port to 4 USB ports (USB 2.0)
- ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
- Data rate: 480 Mbps full speed
- Wide operating temperature: -40 to +80 °C
- Rugged metal case - desk, panel or DIN rail mount (brackets included)
- FCC, CE, UL, EMC heavy industrial
- High retention USB port connectors
- USB cable included, 1.8 m
- Bus power or external power (power supply not included, sold separately)
Specifications
General
Technology
USB
Mounting
DIN, Panel
Power
Bus, 10-30VDC
Temperature
-40 to 80C
USB Port Count
1
Power
Power Input (DC)
10 ~ 30 VDC
Environment
Operating Temperature
-40 ~ 80°C (-40 ~ 176°F)
Protection
ESD Protection
8 kV (Contact) ; 15 kV (Air)
Certification
Safety
UL508, Class 1 Division 2
Upstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Connector Type
Type B (Female) High Retention
Port Number
1
Downstream USB Port
Standard
USB 2.0
Maximum Transfer Rate
Hi-Speed (480 Mbps)
Connector Type
Type A (Female) High Retention
Port Number
4
Supply Current
500mA for each downstream port
Mechanism
Enclosure (Metal)
Metal
Accessory General
Mounting
DIN
