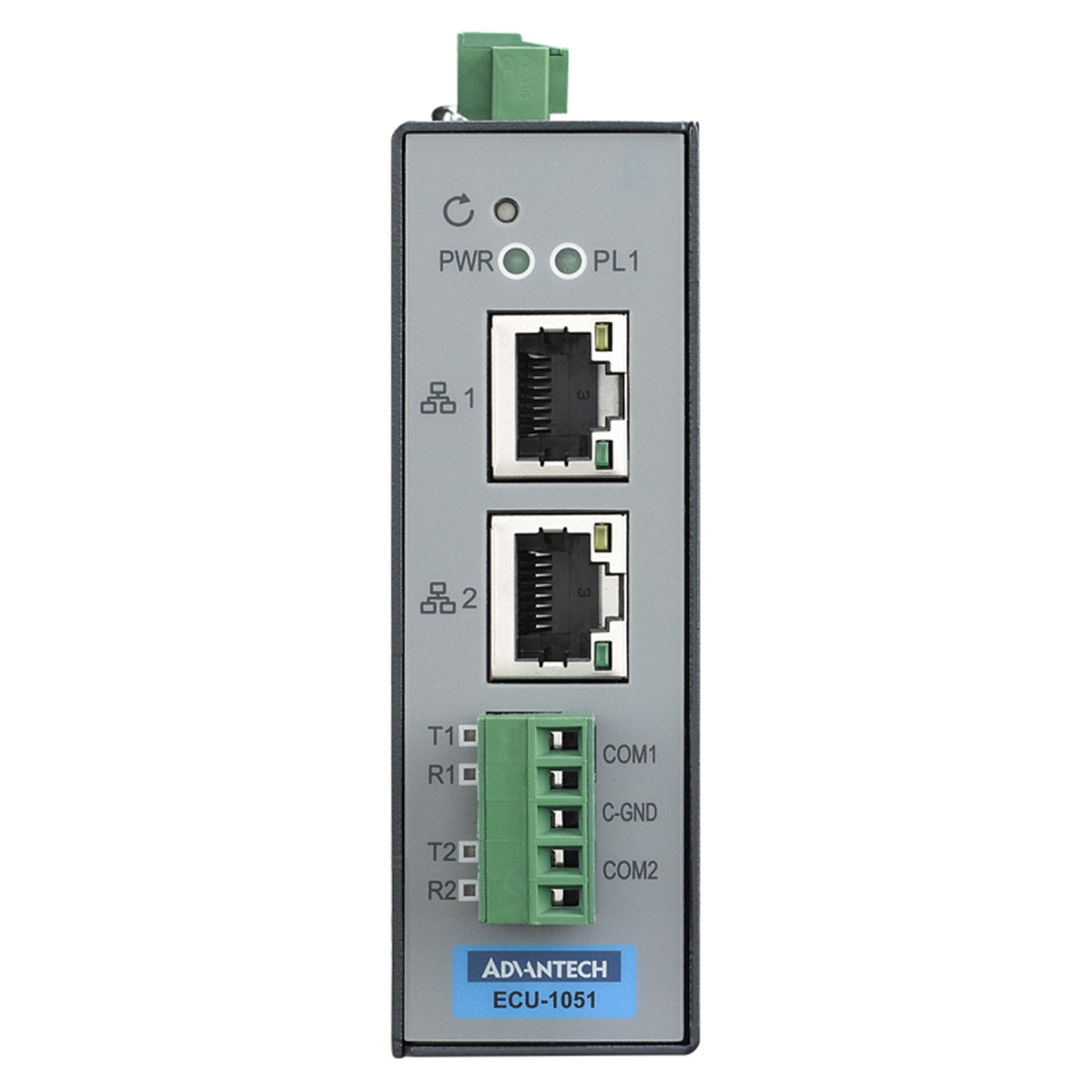

Advantech ECU-1051TL-R10ABU A8 600MHz,2xLAN,2xCOM(isolated),1xUSB,w/ EdgeLink
- Brand: Advantech
- MPN: ECU-1051TL-R10ABU
- Part #: IPCAVH220400

Product URL: https://www.pbtech.com/au/product/IPCAVH220400/Advantech-ECU-1051TL-R10ABU-A8-600MHz2xLAN2xCOMiso
Features
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 COM
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
- No RED Certification
Specifications
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Ethernet
Speed
10/100 Mbps
Expansion Function
Interface
1 x Full-size mini PCIe 2.0
SIM card slot
Nano SIM card
General
Grounding Protection
Chassis grounding
Programming Language
Linux C
Protocol
OPC-UA Client & Server, DNP3.0 Client & Server,
IEC-60870-5-104 Master & Slave, IEC-60870-5-101
Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
Server
Hardware
Certification
CE, FCC class A
CPU
TI Cortex A8, 600MHz
Expansion
1 x Full-size mPCIe slot
LED Indicators
PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
Memory
DDR3L 256MB
OS Support
Linux
Power Input
10~30 VDC
Storage
1 x 512MB NAND Flash
Watchdog Timer
15~255 s
I/O Interface
Expansion
1 x Full-size mPCIe Slot
LAN Ports
2 x 10/100 Mbps
Power Connector
1 x 3-Pin Terminal Block
Serial Ports
2 x RS-232/485 (Terminal Block)
Mechanical
Dimension (W x H x D)
92 x 30 x 93 mm
Enclosure
SECC
Form Factor
Passive Cooling and Front Accessible
Mounting
Wall, DIN-rail
Power Requirements
Input Voltage
10~30 VDC
Serial Communication
Baud Rate (bps)
50 bps~115.2 kbps
Data Signals
RS-232: TxD, RxD, GND
RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
WIFI, LTE
