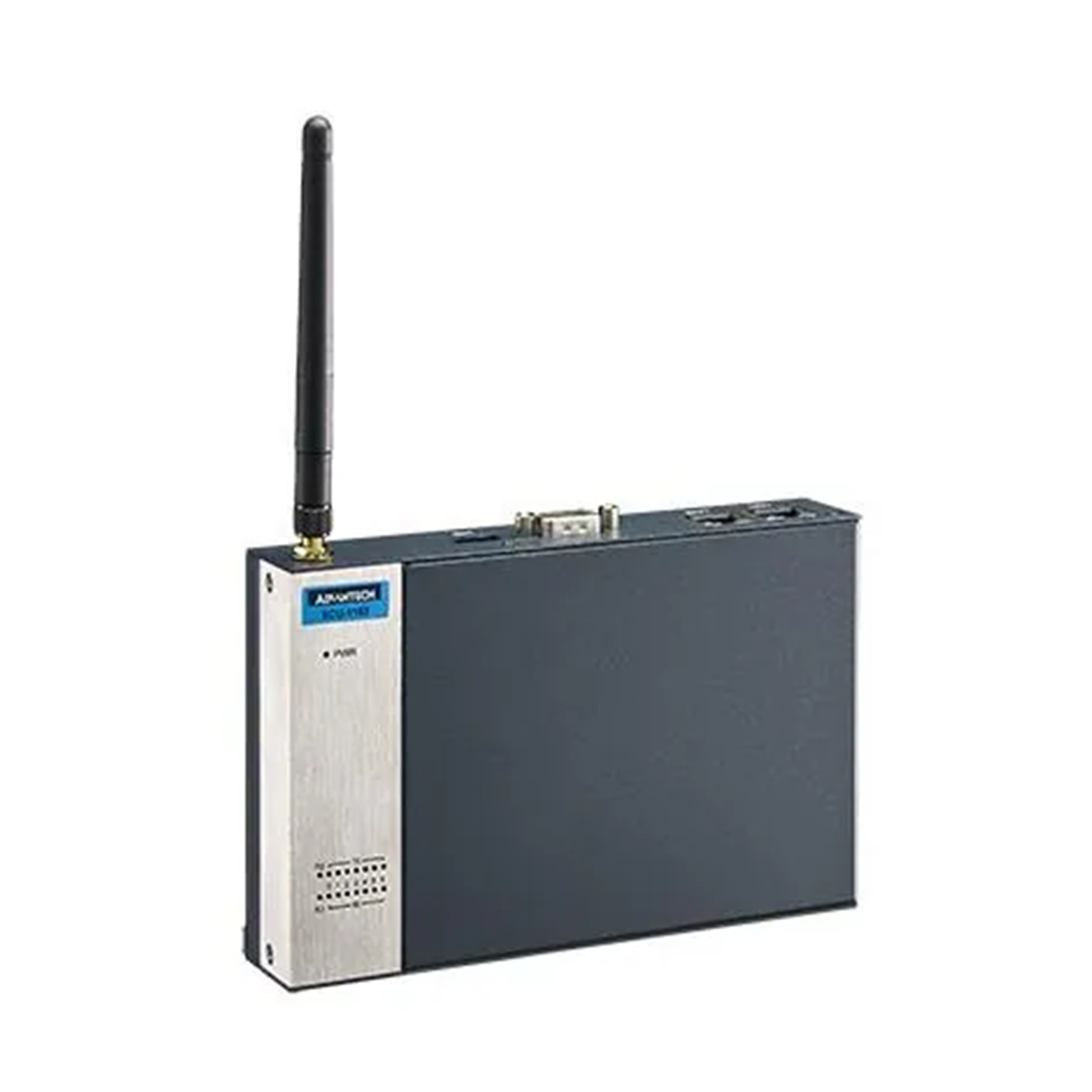

Advantech ECU-1152-R11ABE A8 800MHz,2xLAN,6xCOM,1xmPCIe
- Brand: Advantech
- MPN: ECU-1152-R11ABE
- Part #: IPCAVH220401

Product URL: https://www.pbtech.com/au/product/IPCAVH220401/Advantech-ECU-1152-R11ABE-A8-800MHz2xLAN6xCOM1xmPC
Features
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 6 COM
- TI Cortex A8 800MHz CPU
- DDR3L512MB RAM
- 1GB Micro-SD card for system storage
- 1 x Micro-SD Slot
- 6 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- No RED Certification
- Operation Temperature -40~70°C
Specifications
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Ethernet
Speed
10/100 Mbps
Expansion Function
Interface
1 x Full-size mini PCIe 2.0
SIM card slot
Nano SIM card
General
Grounding Protection
Chassis grounding
Programming Language
Linux C
Protocol
OPC-UA Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101
Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Hardware
Certification
CE, FCC class A
CPU
TI Cortex A8, 800MHz
Expansion
1 x Full-size mPCIe slot
LED Indicators
PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
Memory
DDR3L 512MB
OS Support
Linux
Power Input
10~30 VDC
Storage
2 x SD (Micro-SD)
Watchdog Timer
15~255 s
I/O Interface
Expansion
1 x Full-size mPCIe Slot
LAN Ports
2 x 10/100 Mbps
Power Connector
1 x 13-Pin Terminal Block
Serial Ports
6 x RS-232/485 (Terminal Block)
USB Ports
1 x USB 2.0
Mechanical
Dimension (W x H x D)
170 x 32 x 110 mm
Enclosure
SECC
Form Factor
Passive Cooling and Front Accessible
Mounting
Wall, DIN-rail
Power Requirements
Input Voltage
10~30 VDC
Serial Communication
Baud Rate (bps)
50 bps~115.2 kbps
Data Signals
RS-232: TxD, RxD, GND
RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
WIFI, LTE
