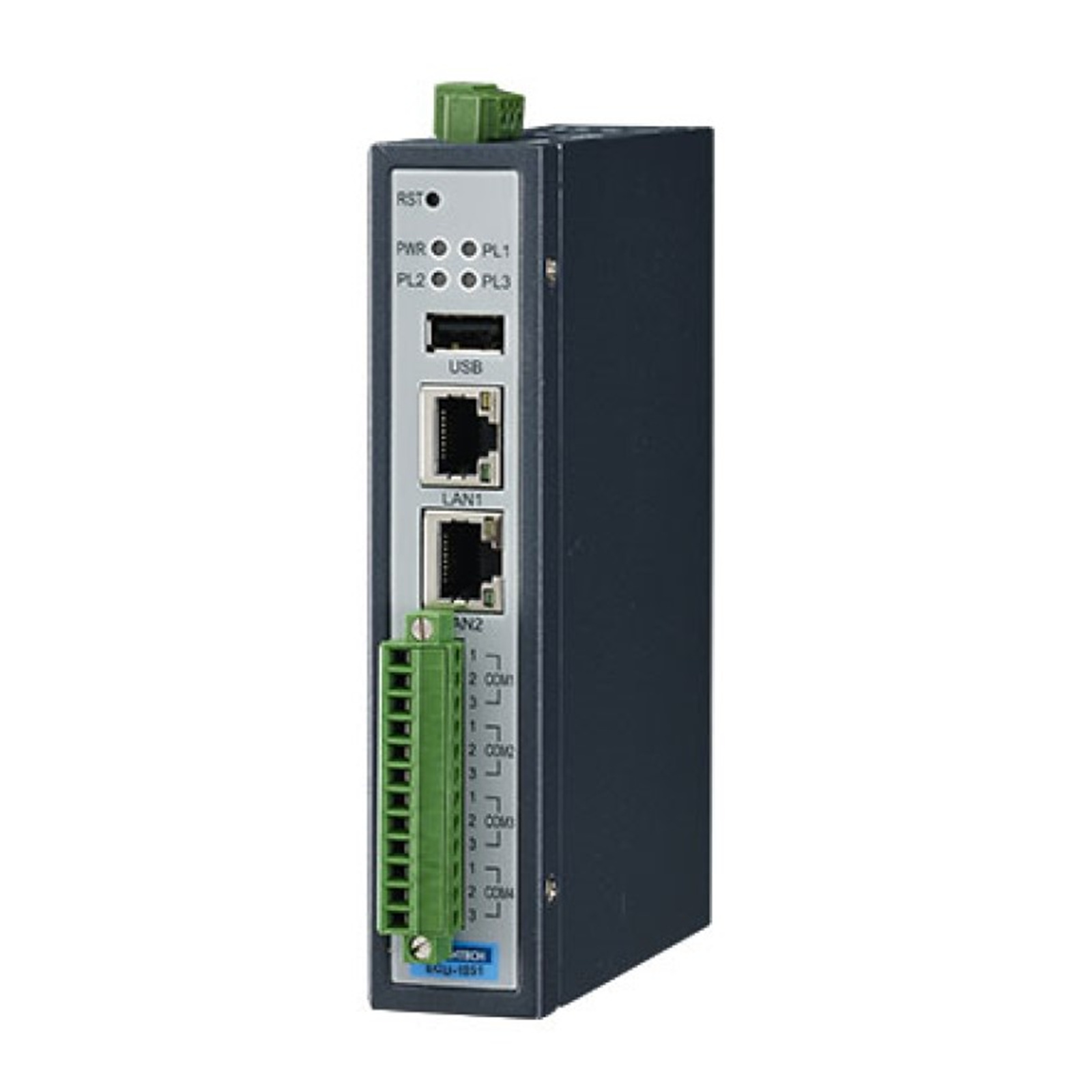

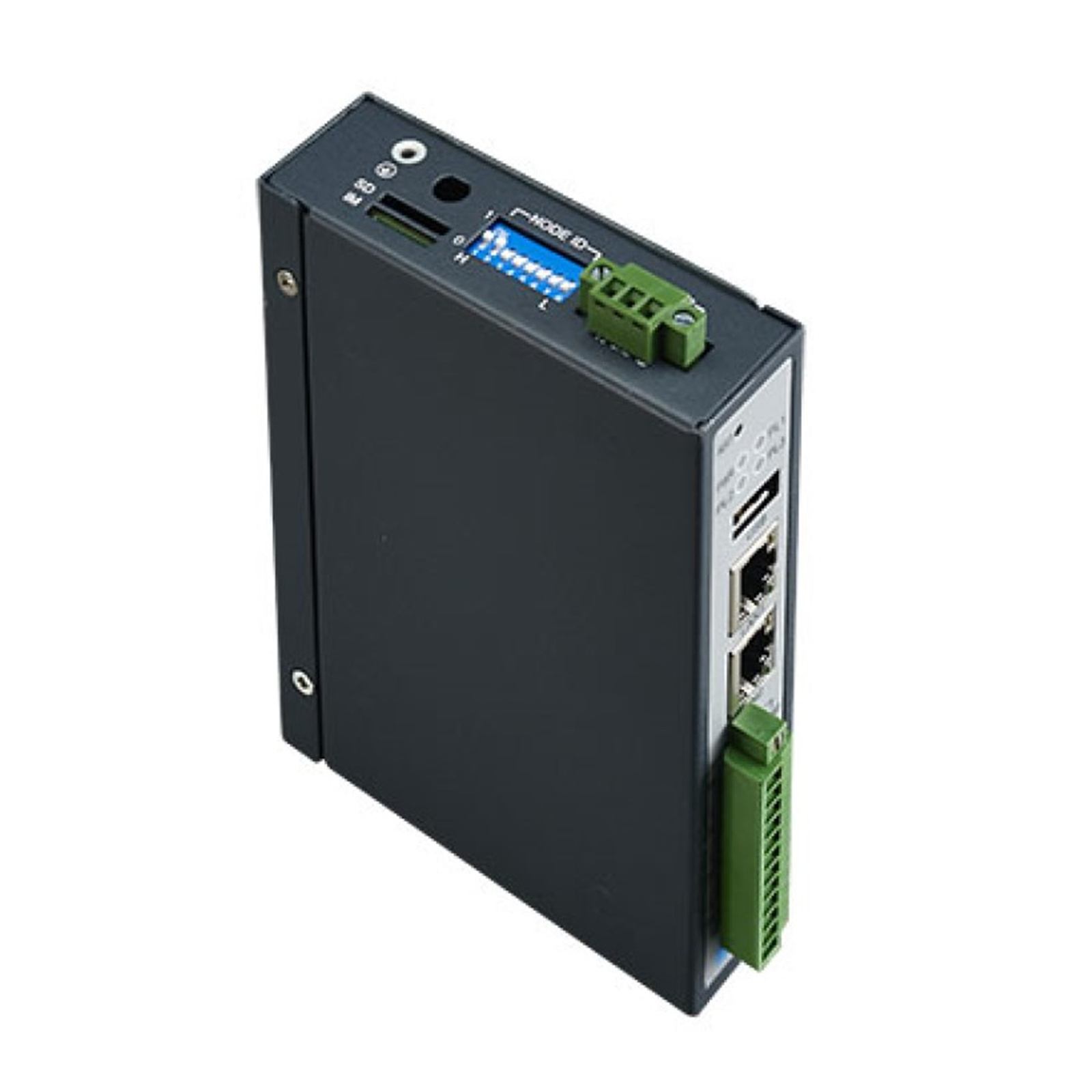

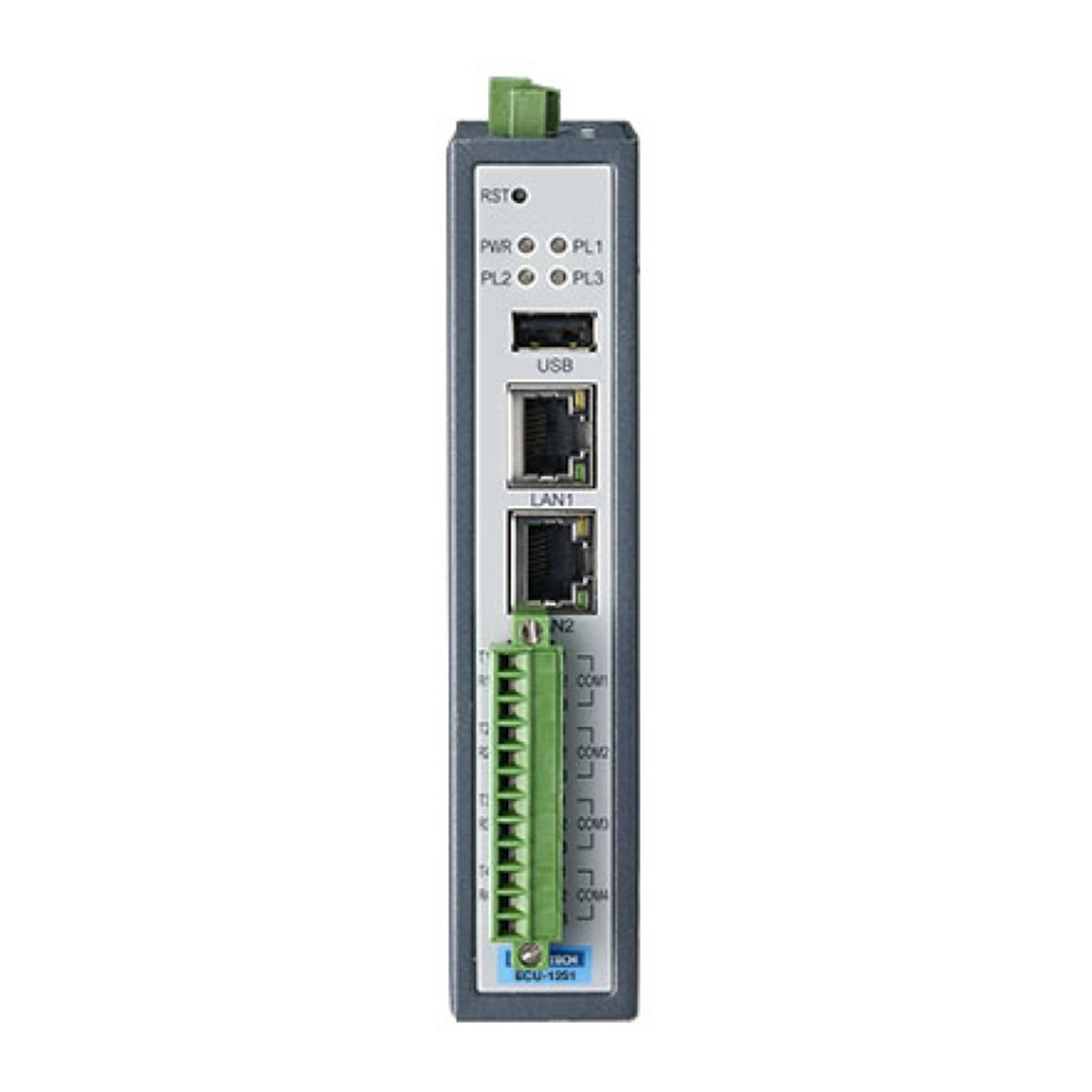

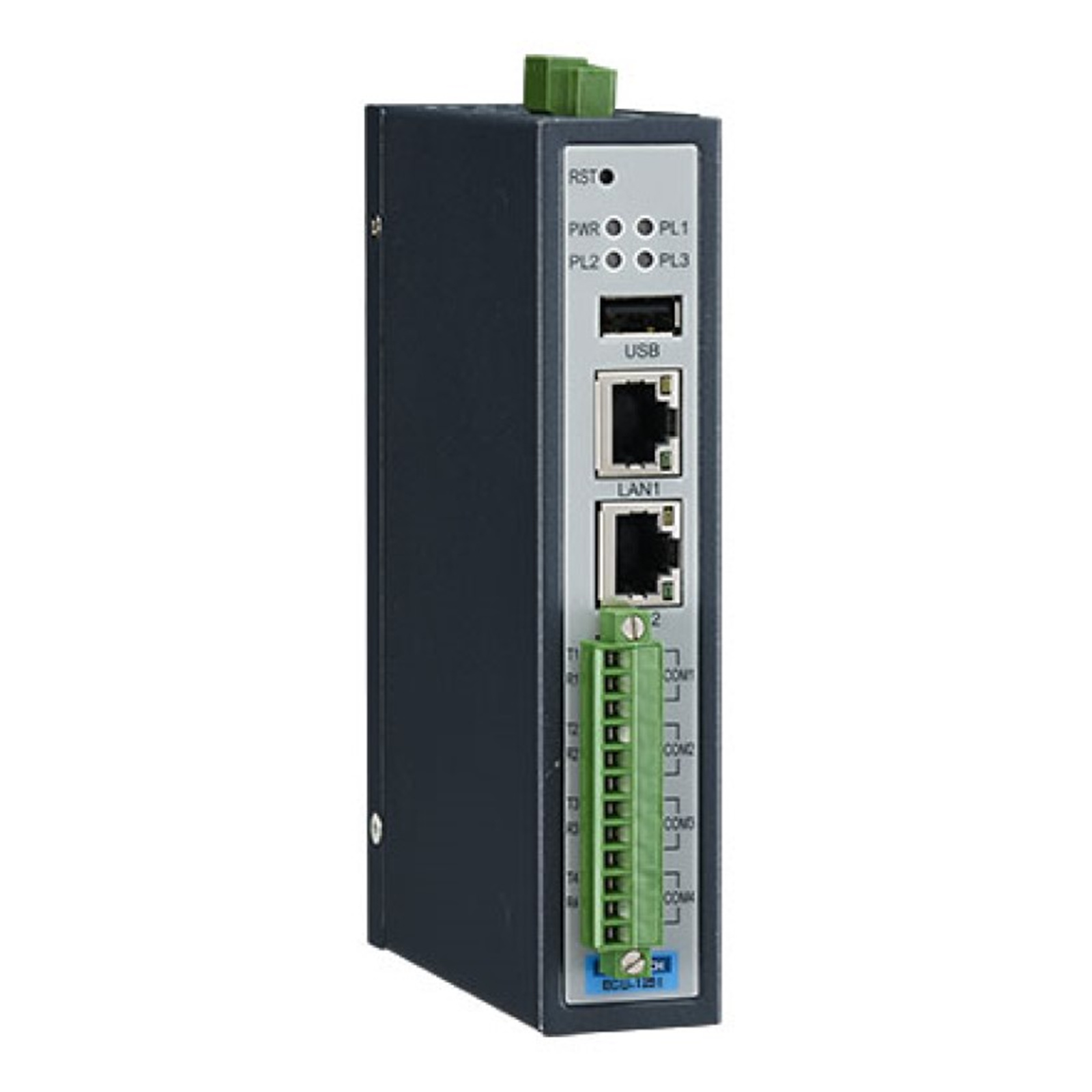

Advantech ECU-1251TL-R23AA Industrial Communication Gateway
- Brand: Advantech
- MPN: ECU-1251TL-R23AA
- Part #: IPCAVH220406

Product URL: https://www.pbtech.com/au/product/IPCAVH220406/Advantech-ECU-1251TL-R23AA-Industrial-Communicatio
Features
Industrial Communication Gateway with TI Cortex A9, 2 x LAN & 4 COM
- Cortex A9 600MHz processor with 2G RAM
- 16GB eMMC system storage and 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Ethernet ports and 1x mPCIe for wireless communication expansion
- Support web service for remotely on-line monitoring
- Supports SD cards and OTA firmware updates
- EdgeLink IoT software for data acquisition and cloud communication
- Wide Operating temperature: -40 ~ 70°C
Specifications
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Expansion Function
SIM card slot
Nano SIM card
General
Grounding Protection
Chassis grounding
Programming Language
Linux C
Protocol
OPC-UA Client & Server, DNP3.0 Client & Server,
IEC-60870-5-104 Master & Slave, IEC-60870-5-101
Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
Hardware
Certification
CE, FCC class A
CPU
ARM® Cortex™ A9
Expansion
1 x Full-size mPCIe slot
LED Indicators
Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
Memory
2 GB DDR3
OS Support
Linux
Power Input
10~30 VDC
Storage
16 GB eMMC
Watchdog Timer
1~255 s
I/O Interface
LAN Ports
2 x 10/100 Mbps
Power Connector
1 x 3-Pin Terminal Block
Serial Ports
4 x RS-232/485 (Terminal Block)
USB Ports
1 x USB 2.0
Mechanical
Dimension (W x H x D)
140 x 30 x 96.5 mm
Enclosure
SECC
Form Factor
Passive Cooling and Front Accessible
Mounting
Wall, DIN-rail
Serial Communication
Baud Rate (bps)
50 bps~115.2 kbps
Data Signals
RS-232: TxD, RxD, GND
RS-485: Data+, Data-
Wireless Communication
Standard (Technology)
WIFI, LTE
