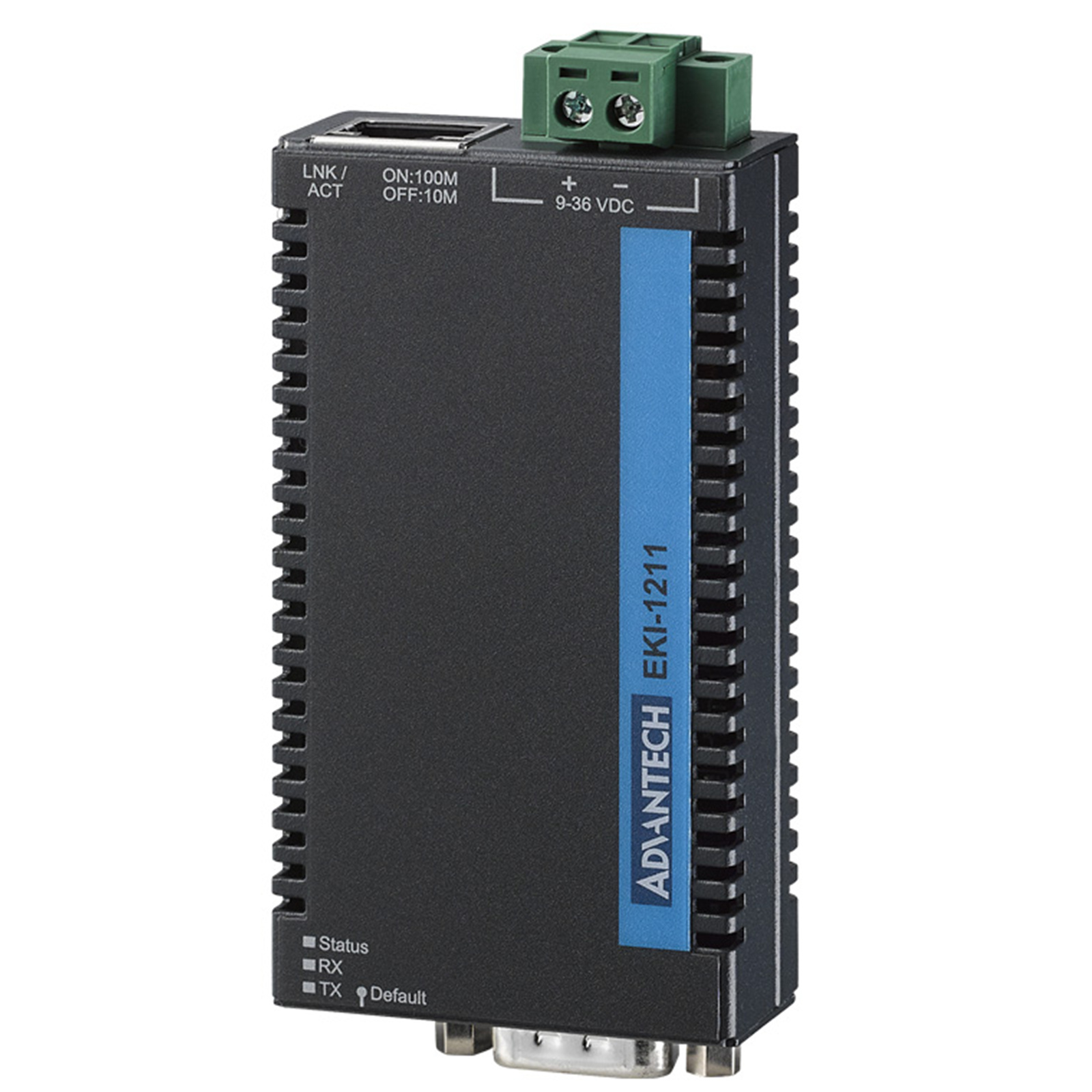

Advantech EKI-1211-A 1-Port Modbus Gateway
- Brand: Advantech
- MPN: EKI-1211-A
- Part #: IPCAVH220412

Product URL: https://www.pbtech.com/au/product/IPCAVH220412/Advantech-EKI-1211-A-1-Port-Modbus-Gateway
Features
- 1 x 10/100 Mbps Ethernet port
- Integrates Modbus TCP and Modbus RTU/ASCII networks
- Baud rate: supports up to 230.4 Kbps
- Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server mode
- Built-in 8-kV ESD protection for all serial signals
- Software-selectable RS-232/422/485-2w/485-4w communication
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u
Speed
10/100 Mbps
No. of Ports
1
Port Connector
8-pin RJ45
Protection
Built-in 2.25 k VDC magnetic isolation
Serial Communications
Port Type
RS-232/422/485
No. of Ports
1
Port Connector
DB9 male
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS
Baud Rate
300 bps ~ 230.4 kbps
Serial Signals
RS-232: TxD, RxD, CTS, RTS, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD- GND
Protection
Built-in 8 KV ESD for all signals
Software
Driver Support
32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10,
Windows Server 2003/2008/2012, and Linux
Operation Modes
Modbus ASCII Client/Server mode
Modbus RTU Client/Server mode
Configuration
Windows utility
Protocols
ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, HTTP, DNS, SMTP, ARP, NTP
Mechanics
Dimensions (W x H x D)
46 x 85.1 x 21.2 mm (1.81" x 3.35' x 0.83')
Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
0.127 kg
General
LED Indicators
System: Power, System Status/LAN: Speed, Link/Active
Serial: Tx, Rx
Power Requirements
Input
9 ~ 36 VDC
Connector
Terminal block
Consumption
1 W
Environment
Operating Temperature -40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH
