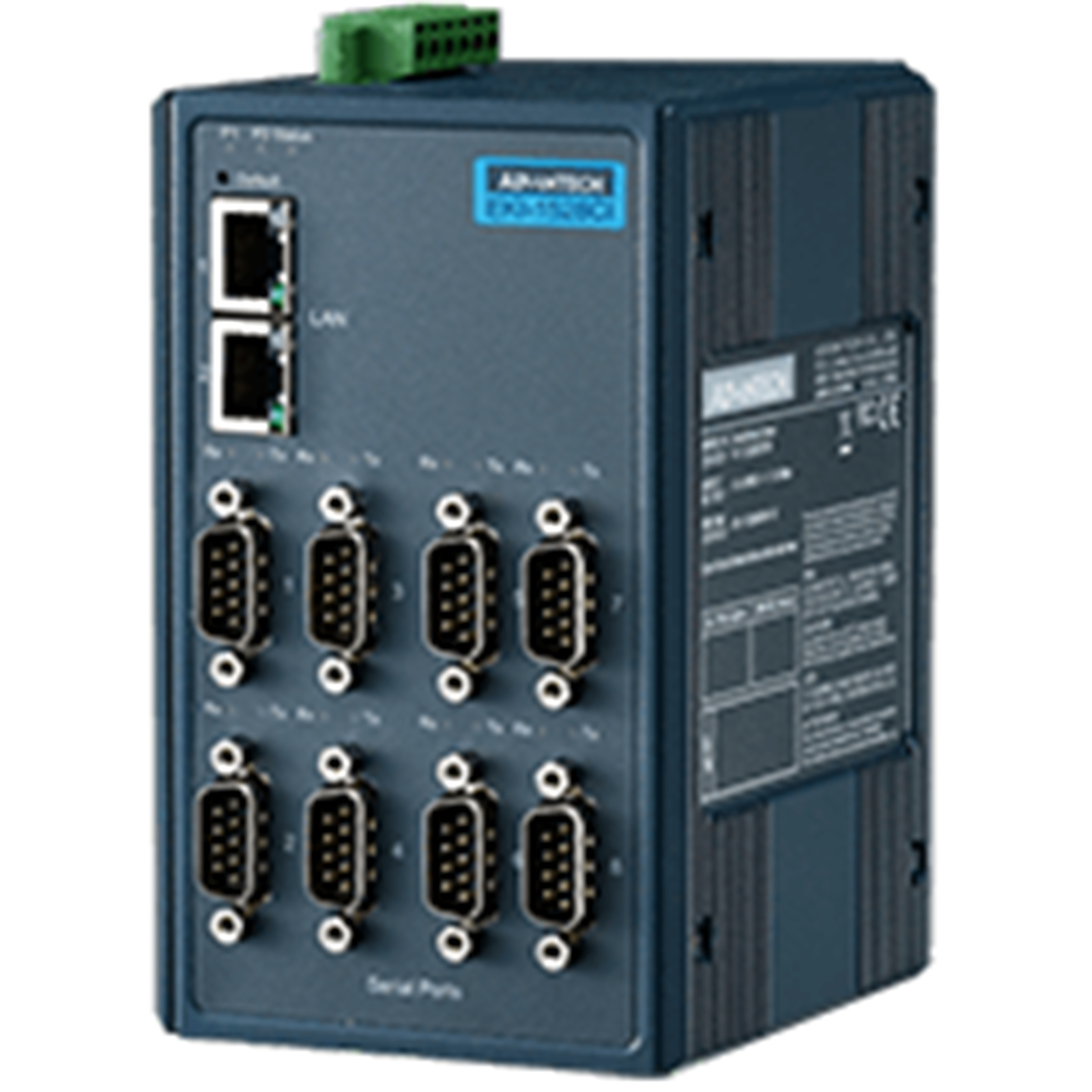

Advantech EKI-1528I-DR-AE 8-port RS-232/422/485 Serial Device Server - Wide Temperature
Out of stock
Advantech EKI-1528I-DR-AE 8-port RS-232/422/485 Serial Device Server - Wide Temperature
- Brand: Advantech
- MPN: EKI-1528I-DR-AE
- Part #: IPCAVH220447
- UPC:
View all shipping info
- Brand: Advantech
- MPN: EKI-1528I-DR-AE
- Part #: IPCAVH220447
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech EKI-1528I-DR-AE 8-port RS-232/422/485 Serial Device Server - Wide Temperature
- Brand: Advantech
- MPN: EKI-1528I-DR-AE
- Part #: IPCAVH220447

Product URL: https://www.pbtech.com/au/product/IPCAVH220447/Advantech-EKI-1528I-DR-AE-8-port-RS-232422485-Seri
Features
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Supports up to 921.6 kbps, and any baud rate setting
- Allows a max. of 5 hosts to access one serial port
- Allows a max. of 16 hosts to be accessed as TCP client mode
- Built-in 15 KV ESD protection for all serial signals
- Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
- Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux
- Automatic RS-485 data flow control
- Supports line to line 4 KV, line to ground 8 KV surge protection
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u
Speed
10/100 Mbps
No. of Ports
2
Port Connector
8-pin RJ45
Protection
Built-in 2.25 k VDC magnetic isolation
Serial Communications
Port Type
RS-232/422/485, software selectable
("CI" model supports RS-422/485)
No. of Ports
8
Port Connector
DB9 male
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS, DTR/DSR
Baud Rate
50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI,
GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Protection
Built-in 15 KV ESD for all signals
Software
Driver Support
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Modes
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
Configuration
Windows utility, Telnet console, Web Browser
Management
SNMP MIB-II
Mechanics
Dimensions (W x H x D)
86 x 140 x 95 mm (3.38" x 5.51" x 3.74")
Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
EKI-1528I:900g/ EKI-1528CI:1000g
General
LED Indicators
System: Power, System Status/LAN: Speed, Link/Active
Serial: Tx, Rx
Power Requirements
Input
12 ~ 48 VDC, redundant dual inputs
Connector
Terminal block
Consumption
EKI-1528I: 5W
EKI-1528CI: 6W
