Advantech EKI-6233BN-A 802.11abgn WLAN Client
Out of stock
Advantech EKI-6233BN-A 802.11abgn WLAN Client
- Brand: Advantech
- MPN: EKI-6233BN-A
- Part #: IPCAVH220561
- UPC:
View all shipping info
- Brand: Advantech
- MPN: EKI-6233BN-A
- Part #: IPCAVH220561
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT

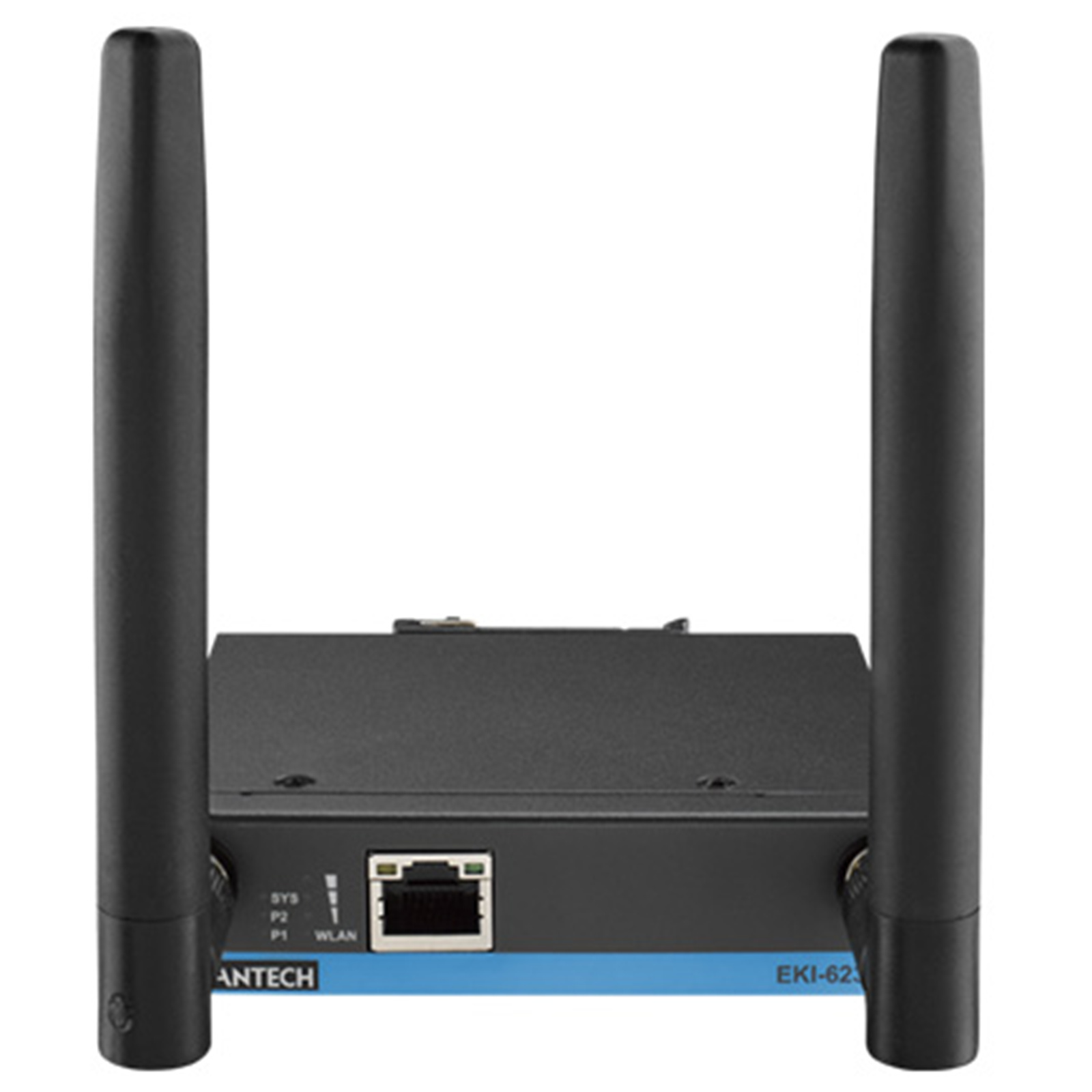

Advantech EKI-6233BN-A 802.11abgn WLAN Client
- Brand: Advantech
- MPN: EKI-6233BN-A
- Part #: IPCAVH220561

Product URL: https://www.pbtech.com/au/product/IPCAVH220561/Advantech-EKI-6233BN-A-80211abgn-WLAN-Client
Features
EKI-6233BN WI-Fi client device allow data transmission from LAN interface via Wi-Fi wireless technology transmit to a network. Design with one Ethernet port and 802.11 a/b/g/n 2x2 MIMO supported. EKI-6233BN provide a quick, simple and cost-effective way to bring the remote management and data accessibility to thousands of devices that cannot connect to a network. In addition, you can actively request data or issue commands from wireless LAN side. Thus, the EKI-6233BN especially suitable for remote monitoring environments such as security systems, factory automaton and the mobile device on car.
- Support a/b/g/n 2x2 MIMO
- WLAN transmission rate up to 300Mbps
- Support secure access with WEP, WPA/WPA2-Personal,
- WPA/WPA2-Enterprise
- Provide Web-based configuration
- Support Dual band 2.4/5GHz selective
Specifications
MPN
EKI-6233BN-A
Industrial WI-FI Client
Ethernet Communications
Port Type
RJ45
No. of Ports
1
Speed
10/100 Mbps
Wireless LAN Communications
Compatibility
IEEE 802.11a/b/g/n
Network Mode
WiFi Client
Antenna Connector
Reverse SMA
No. of Antenna
2
Wireless Security
WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Physical Specifications
Enclosure
Metal shell with solid mounting kit
Power
12 ~ 48 VDC (terminal block - redundant dual input)
Power Consumption
2W maximum
Dimensions (L x W x H)
25 x 103 x 95 mm (0.98" x 4.06" x 3.74")
Mounting
Din rail, Wall
Weight
300g
Environment
Operating Temp.
-40 ~ 70°C (-40 ~ 166°F)
Storage Temperature
-40 ~ 80°C (-40 ~ 176°F)
Humidity
10% ~ 95% non-condensing
Antenna
2 x 5dBi Wi-Fi antenna
Software
Configuration
Web Browser
Protocol
ARP, ICMP, IPv4, IPv6, SNMP, Telnet, TCP, UDP, DHCP
Client, DNS, HTTP, SNTP
Wireless Security
WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
General
LED system
Power, system status
WLAN
Quality, Link/Active
LAN
Link/Active
Reboot-trigger
Bulit-in watch dog timer
Regulatory
Certification CE/RED/FCC
