Advantech EKI-9508E-MPH-AE EN 50155 Managed PoE Ethernet Switch with 8FE, 72-110 VDC
- Brand: Advantech
- MPN: EKI-9508E-MPH-AE
- Part #: IPCAVH220635

Product URL: https://www.pbtech.com/au/product/IPCAVH220635/Advantech-EKI-9508E-MPH-AE-EN-50155-Managed-PoE-Et
Features

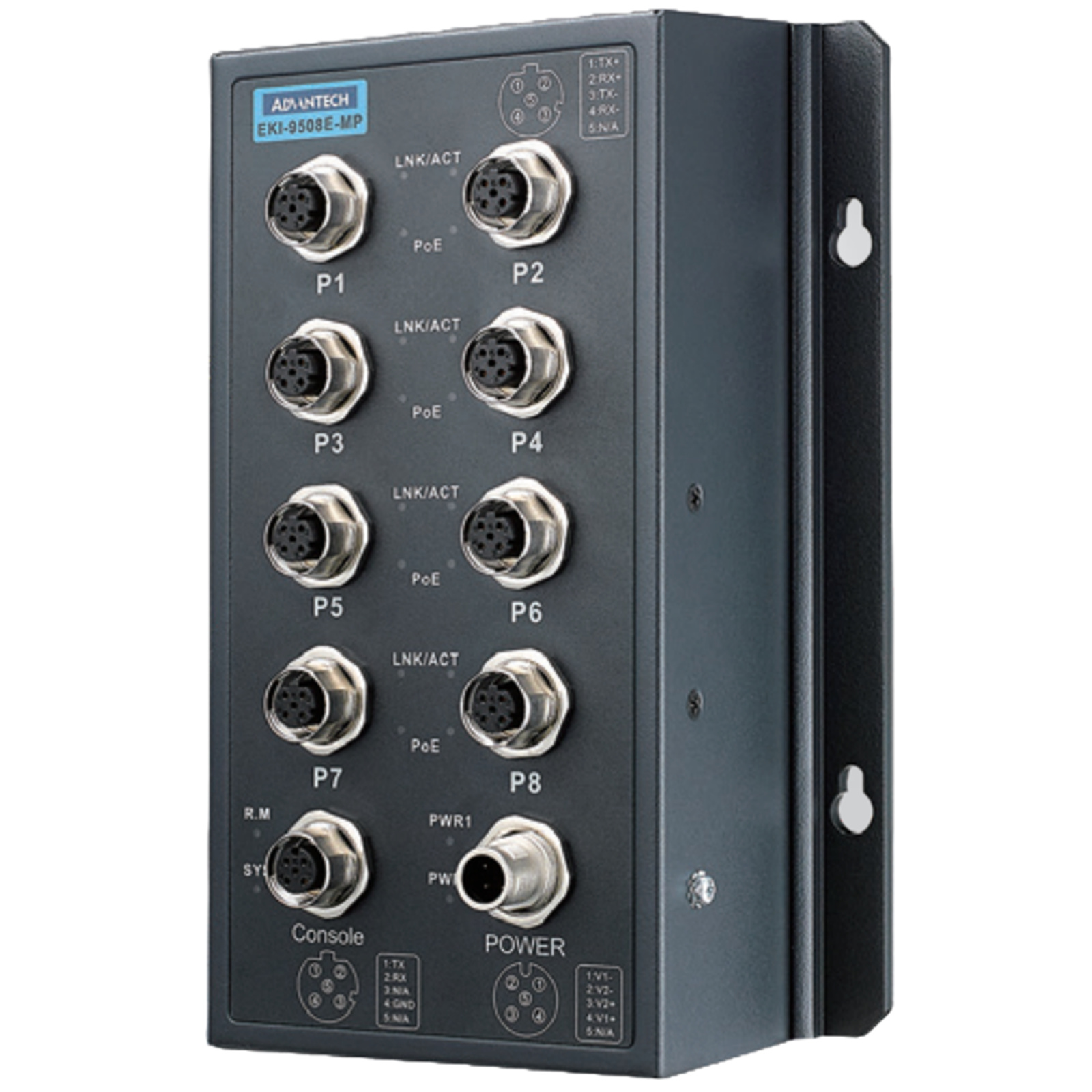

EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9508E-MPH is a Managed PoE Ethernet switch, it provides 8 x Fast Ethernet M12 D-code interface with IEEE802.3af/at PoE (Power Over Ethernet) function. PoE ports can total provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). EKI-9508E-MPH features a "slim" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 port M12 D-coded 10/100Mbps PoE ports
- Power input
EKI-9508E-MPH: 72/96/110 VDC
- Operating Voltage
EKI-9508E-MPH: 50.4~137.5 VDC
- X-Ring Pro supports rapid and predictable convergence
- IEEE 802.3at PoE+ to supply 30 W of power
- IEEE 802.3af PoE to supply 15.4 W of power
- M12 connector with IP50 protection
- Operating temperature of -40 ~ 70°C
Specifications
Model
EKI-9508E-MPH-AE
Layer 2 Managed Switch, 8 x M12 Fast Ethernet with PoE/PoE+, 72/96/110 VDC dual power input
Interface
I/O Port
8 x 10/100BASE-T M12 D-Coded
Console port
M12 A-Coded
Power Connector
M12 A-Coded
Physical
Enclosure
Metal Shell
Protection Class
IP50
Installation
Wall Mount

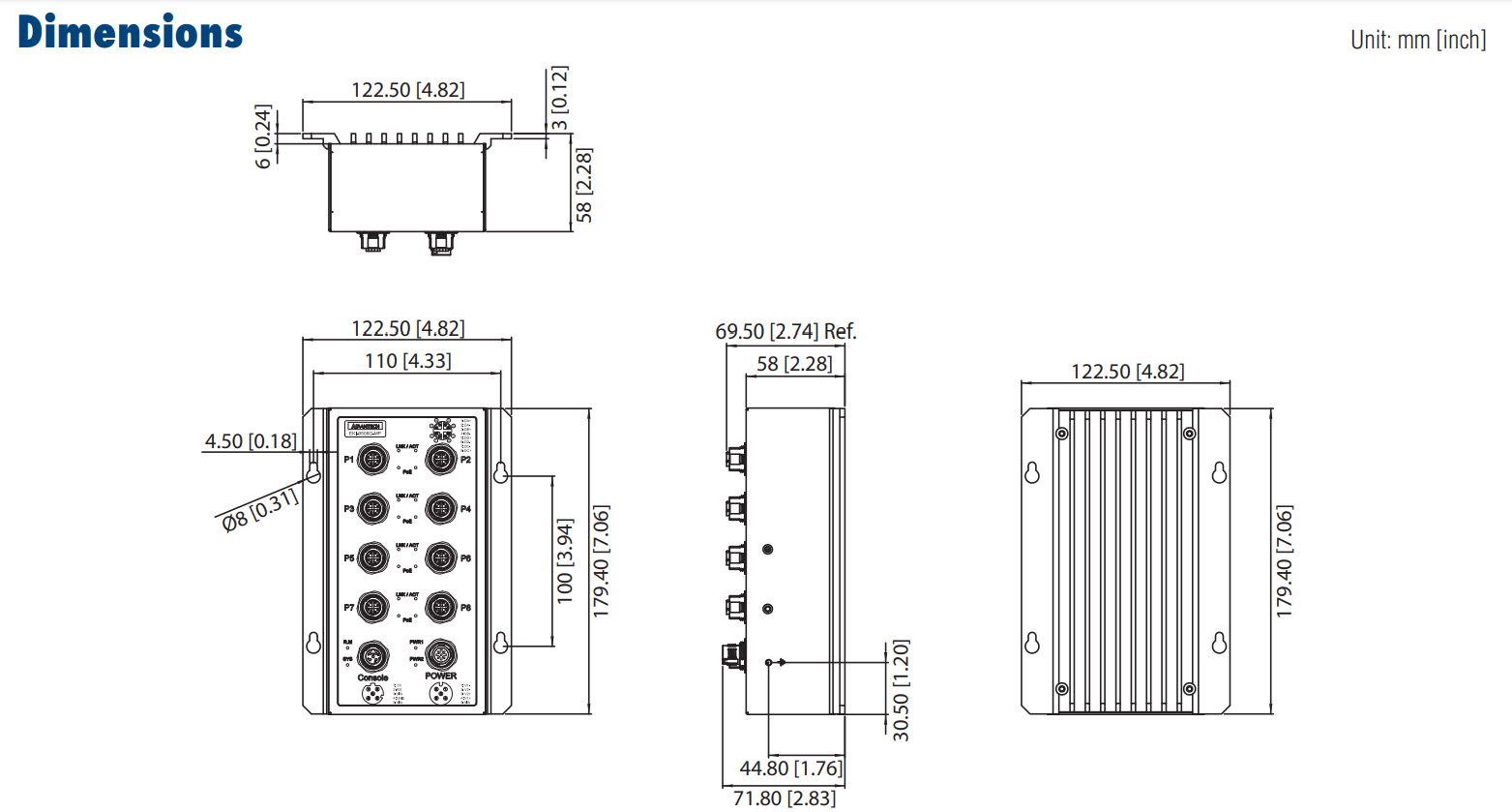

Dimensions (W x H x D)
122.5 x 179.4 x 71.8 mm
Weight
1.3 kg
LED Display
System LEDs
PWR1, PWR2, R.M., SYS
Port LED
Data, PoE
Environment
Operating Temperature
-40 ~ 70 °C
Storage Temperature
-40 ~ 85 °C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Power
Power Consumption
~ 5 Watts (System)
PoE Power Budget
EKI-9508E-MPH: 90 Watts
Power Input
EKI-9508E-MPH: 72/96/110 VDC
Operating Voltage
EKI-9508E-MPH: 50.4~137.5 VDC
Dual inputs Supports Overload Current
Protection Supports Reverse Polarity Protection
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (EFT); EN61000-4-5 (Surge); EN61000-4-6 (CS)
Shock
IEC 61373
Freefall
IEC 60068-2-31
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9KB
VLAN Group
4K (VLAN ID 1~4094)
VLAN
Mac based VLAN, Protocol based VLAN, IP subnet based VLAN, Port based VLAN, Q in Q (VLAN Stacking), GVRP
Port Mirroring
Per port, Multi-source port
IP Multicast
IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave
Storm Control
Broadcast, Multicast, Unknown unicast
Redundancy Protocol
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro
QoS
Priority Queue Scheduling
WRR (Weighted Round Robin), SP (Strict Priority)
Class of Service
IEEE 802.1p based CoS, IP TOS, DSCP based CoS
Rate Limiting
Egress Rate limit
Link Aggregation
IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
Security
Port Security
Static, Dynamic
Authentication
802.1x (Port-Based, MAC-Based), RADIUS, TACACS+
ACL
1K rules
Advanced Security
IP Source Guard, ARP inspection, DHCP Snooping
Management
DHCP
Client, Server, Relay, Option 66/67/82
Access
SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB, Private MIB
Security Access
SSH 2.0, SSL
Software Upgrade
TFTP, HTTP, Dual Image
NTP
NTP client
IPv6 Features
IPv4/IPv6
IPv4/IPv6 Dual Protocol Stack
IPv6
HTTP, SSH, Telnet, TFTP
SNTP, SMTP
