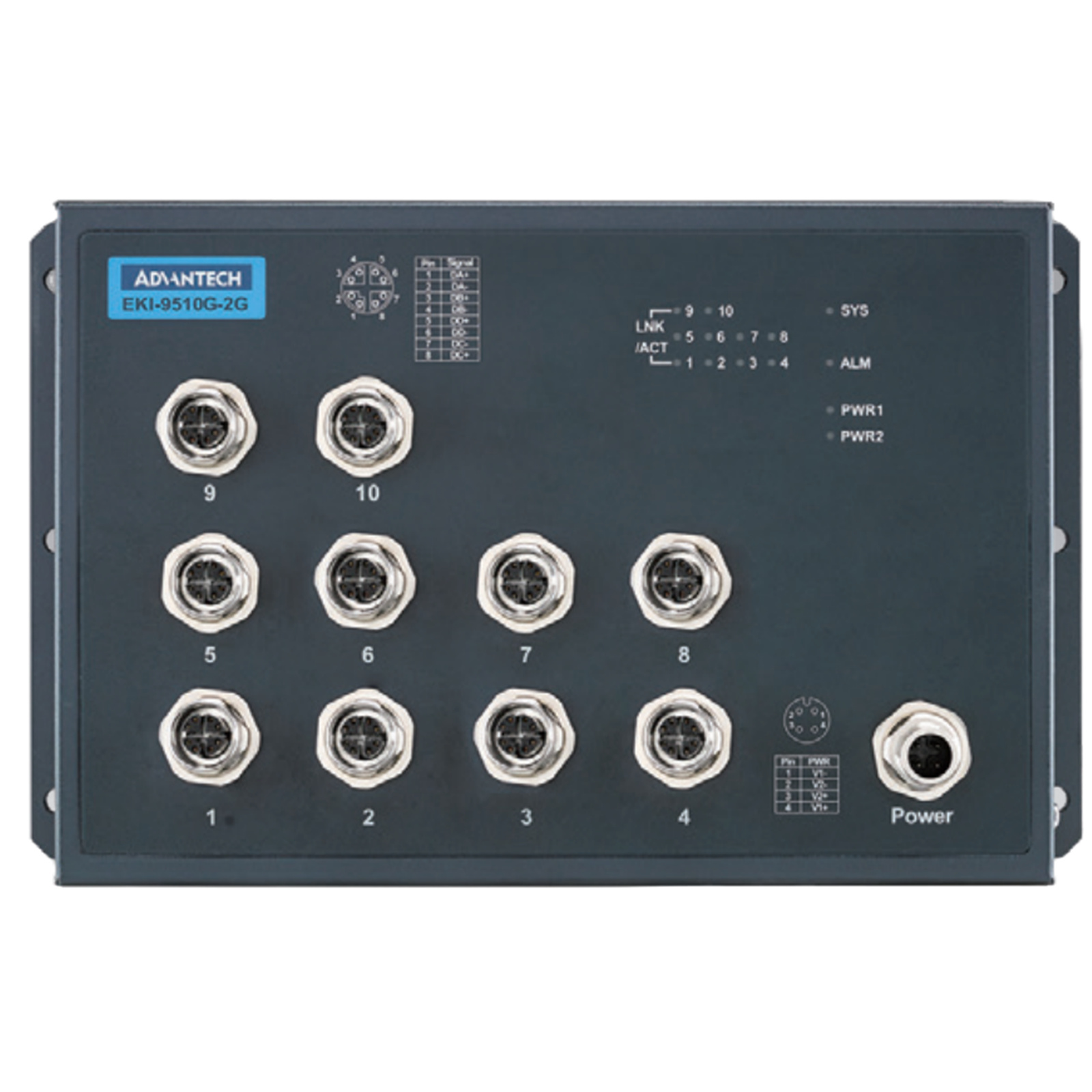

Advantech EKI-9510G-2GL-AE EN50155 Unmanaged Switch with 10xGE(2bypass), 24-48 VDC
- Brand: Advantech
- MPN: EKI-9510G-2GL-AE
- Part #: IPCAVH220655

Product URL: https://www.pbtech.com/au/product/IPCAVH220655/Advantech-EKI-9510G-2GL-AE-EN50155-Unmanaged-Switc
Features
EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9510G-2GL is a Unmanaged Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface. It also provides 2 x Gigabit Ethernet M12 X-code interface with Bypass function, to increase the reliability of the network. EKI-9510G-2GL features a "flat" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 x M12 X-Coded 10/100/1000Mbps ports + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
- Power Input: EKI-9510G-2GL: 24/48 VDC
- Operating Voltage: EKI-9510G-2GL: 16.8~60 VDC
- M12 connector with IP40 protection
Specifications
Interface
I/O Port
8 x 10/100/1000Mbps M12 X-Coded + 2 x M12 X-Coded 10/100/1000Mbps ports with Bypass function
Console port
M12 A-Coded
Power Connector
M12 A-Coded
Power
Power Consumption
10 Watts
Power Input
EKI-9510G-2GL: 24/48 VDC
Operating Voltage
EKI-9510G-2GL: 16.8~60 VDC
Dual inputs Supports Overload Current Protection
Supports Reverse Polarity Protection
Physical
Enclosure
Aluminum Shell
Protection Class
IP 40
Installation
Wall Mount
Dimensions (W x H x D)
216 x 132 x 59.3 mm
Weight
1.5kg
LED Display
System LEDs
PWR1, PWR2, SYS, Alarm
Environment
Operating Temperature
-40 ~ 70°C
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Certification
EMI
FCC Part 15 Subpart B Class A
CE EN55032 (CISPR)
EN55024 Class A
EMS
EN61000-4-2 (ESD); EN61000-4-3 (RS);
EN61000-4-4 (EFT); EN61000-4-5 (Surge);
EN61000-4-6 (CS)
Shock
IEC 61373
Vibration
IEC 61373
Rail Traffic
EN 50155; EN50121-3-2
L2 Features
L2 MAC Address
8K
Jumbo Frame
9KB
