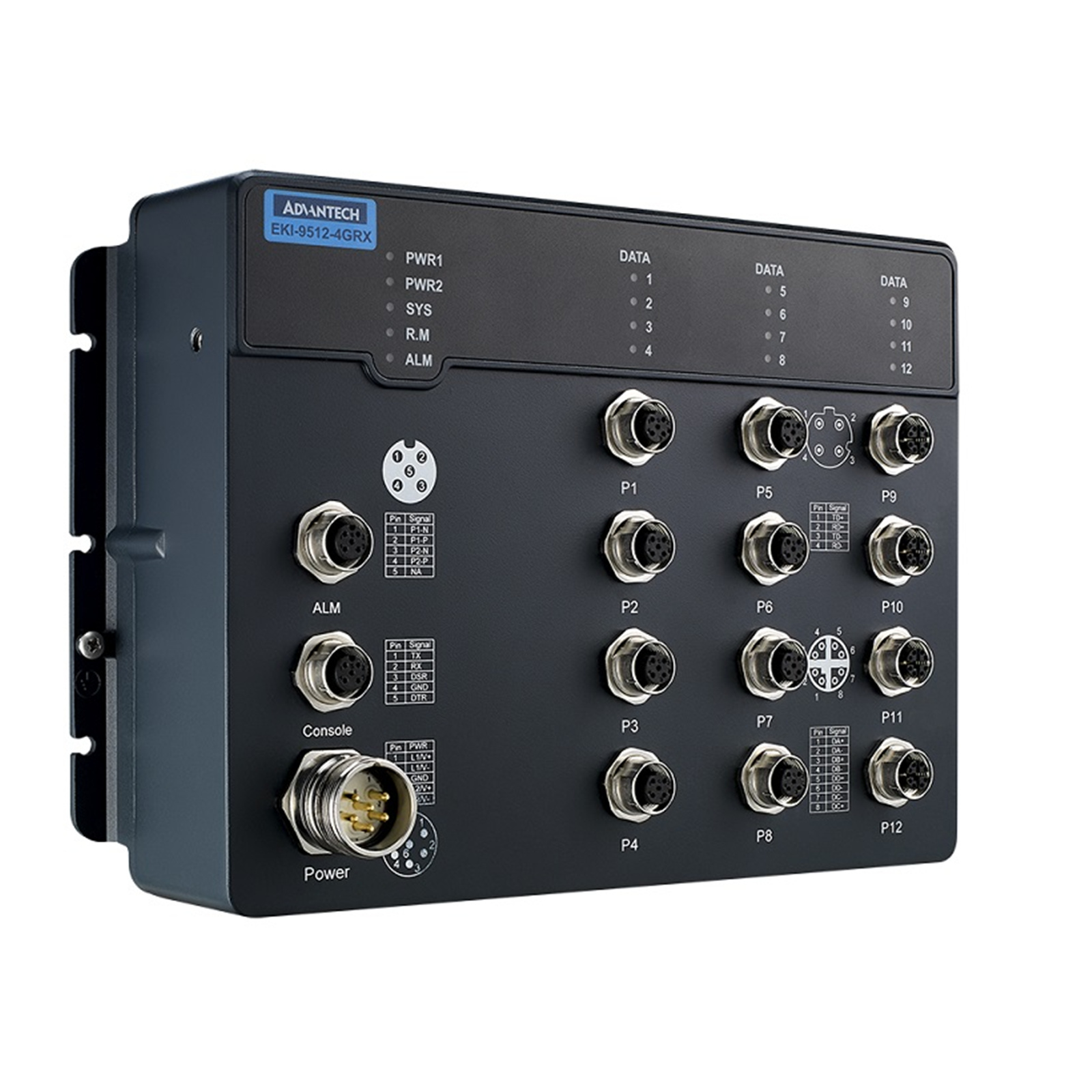

Advantech EKI-9512E-4GRX-A L3 8FE PoE + 4GE w/o BP train switch

PB Tech price

$ 4,522 .19

+GST

$ 4,974 .41

inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-9512E-4GRX-A L3 8FE PoE + 4GE w/o BP train switch

Brand: Advantech
MPN: EKI-9512E-4GRX-A
Part #: IPCAVH220667
UPC:

PB Tech price

$ 4,974 .41

inc GST

+GST inc GST

Out of stock

Delivery: Out of stock

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-9512E-4GRX-A
Part #: IPCAVH220667
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Layer 3 managed Ethernet Switch with 8 x Fast Ethernet and 4 x Giga Ethernet ports

The EKI-9512E(G)-4GRX Ethernet switch is designed for railway applications with rugged housing and high EMC performance. It is a suitable networking solution for rolling stock and wayside applications. It provides M12 connectors for Ethernet/ console/ relay/ power-input(M23) connections to ensure tight and robust connectivity, guarantees reliable operation against environmental disturbances, and complies with IEC61373 vibration and shock for rolling stock applications, and supports Layer 3 routing capabilities to facilitate the deployment of applications across networks, separating the subnet and also optimizing the security of on-board network. The EKI-9512E(G)-4GRX features IP67 housing and ample pitch connectors that can easily connect/ disconnect cables without interference; reducing human errors within the harsh and narrow industrial environments.

- M12 connectors with IP67 rugged housing
- Complies with EN50155 & EN50121-3-2
- Wide nominal power input range: 24~110VDC
- Operating power input range: 16.8~137.5VDC
- Supports X-Ring Pro for rapid and predictable convergence
- Supports N-Key for quick configuration and backup
- Operating temperature: -40 ~ 75°C
- Provides Fast Ethernet & Full Giga Ethernet solution

Specifications

Interface

Ethernet Port

M12 4pin D-coded Female for Fast Ethernet
(10/100BASE-T)
M12 8pin X-coded Female for Giga Ethernet
(10/100/1000BASE-T)

Console Port

M12 5pin A-coded Female

Relay Port

M12 5pin A-coded Female with 2 relay outputs of
1A @ 24VDC

Power Connector

M23 connector

Physical

Enclosure

Aluminum Shell

Protection Class

IP67

Installation

Wall Mount

Dimension

254 x 174 x 64.5 mm (W x H x D)

LED Display

System LED

PWR1, PWR2, SYS, Alarm, R.M.

Port LED

Data, PoE (For PoE model only)

Environment

Operating Temperature

-40~75°C (-40~167°F)

?Storage Temperature

-40~85°C (-40~185°F)

Humidity

5~95% (non-condensing)

Power

Power Consumption

17 Watts (System)

Nominal Input Voltage

24/28/36/48/72/96/110VDC

Operating Input range

16.8-137.5VDC

Certification

Safety

EN62368-1

EMC

CE, EN55011/ 55032/ 55024; FCC Part 15 Subpart B class A

EMS

EN61000-4-2(ESD); EN61000-4-3(RS);
EN61000-4-4(EFT); EN61000-4-5(Surge);
EN61000-4-6(CS)

Shock

EN 61373

Vibration

EN 61373

Railway

EN50155, EN50121-2-3, 50121-1

Fire Protection

EN45545-2

Other

EN61000-6-4, EN61000-6-2

L2 Feature

L2 MAC Address

Jumbo Frame

9KB

VLAN Group

256 (VLAN ID 1~4094)

VLAN Group

802.1Q, GVRP, 802.1ad VLAN stacking

Port Mirroring

Per port, Multi-source port (4 Mirroring sessions Max.)

IP Multicast

IGMP snooping v1/v2/v3, MLD snooping(256 Multicast Entries Max.)

Layer 3 Feature

Routing Feature

Static Route

Max. Host Entries

512

NAT

S-NAT, D-NAT

Manufacturer Part No:

EKI-9512E-4GRX-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220667

Product Model:

EKI-9512E-4GRX-A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
