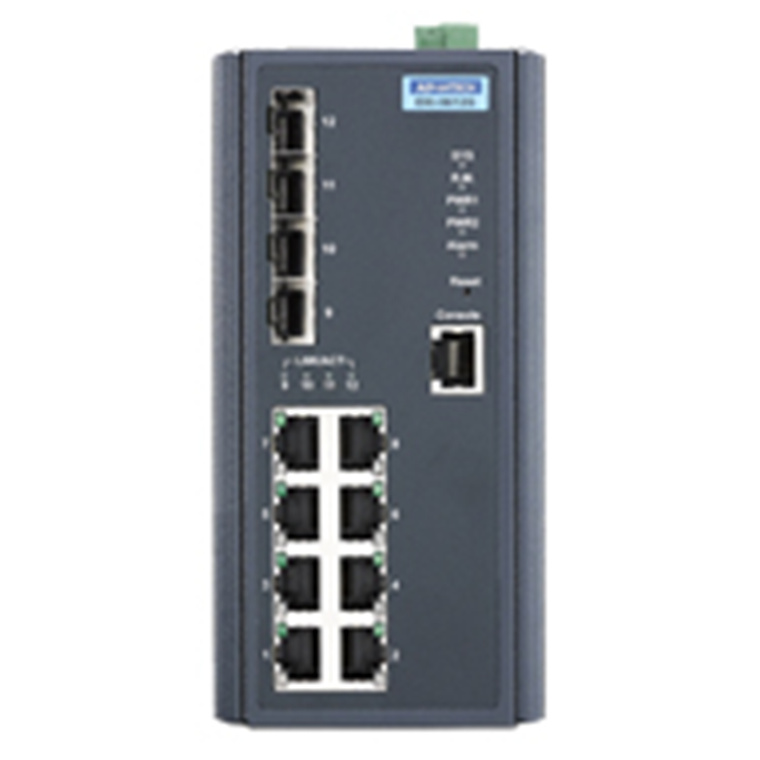

Advantech EKI-9612G-4FI-AE 8GE+4G SFP L3 Managed Ethernet Switch, -40 - 75°C
- Brand: Advantech
- MPN: EKI-9612G-4FI-AE
- Part #: IPCAVH220695

Product URL: https://www.pbtech.com/au/product/IPCAVH220695/Advantech-EKI-9612G-4FI-AE-8GE4G-SFP-L3-Managed-Et
Features
The EKI-9612G-4FI is a DIN rail L3 switch that supports static route and NAT. It comes with 8 Gigabit ports and 4 SFP (mini-GBIC) ports. It provides an abundance of ports for
connecting to a range of different devices. The EKI-9612G series is equipped with X-Ring Pro for ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The
switch also features a wide operating temperature range of -40 to 75°C.
- DIN rail L3 switch 8 Gigabit ports + 4 SFP ports
- L3 function: static route, NAT
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- Security: 802.1x
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Wide operating temperature range of -40 ~ 75°C
- Dual 12 ~ 48 VDC power input and 1 x relay output
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-9612G-4FI/file/EKI-9612G-4FI_DS(021423)20230215090448.pdf
Specifications
Interface
I/O Port
8 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Console port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Display
System LED
PWR1, PWR2, SYS, Alarm and R.M.
Port LED
Link / Speed / Activity
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C
Ambient Relative Humidity
10 ~ 95% (non-condensing)
Humidity
10 ~ 95% (non-condensing)
Power
Power Consumption
12.1W @ 48VDC (System)
Power Input
12 ~ 48 VDC, redundant dual power input
Fault Output
1 Relay Output
Certification
EMI
CE, FCC Class A
Safety
UL61010-2-201
EMC EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN50121-4*
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control NEMA TS2*
*= Compliant
L2 Features
L2 MAC Address
8K
Jumbo Frame
9216 Bytes
VLAN Group
256 (VLAN ID 1 ~ 4094)
VLAN Arrange
Q-in-Q (VLAN Stacking), GVRP
Port Mirroring
Per port, Multi-source port,
IP Multicast
IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave
Storm Control
Broadcast, Multicast, Unknown unicast
Redundancy
IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro, with ultra high-speed recovery time less than 20ms
