Advantech FPM-1150G-RVAE 15" XGA Industrial Monitor with Resistive Touchscreen and VGA / HDMI Port
- Brand: Advantech
- MPN: FPM-1150G-RVAE
- Part #: IPCAVH220699

Product URL: https://www.pbtech.com/au/product/IPCAVH220699/Advantech-FPM-1150G-RVAE-15-XGA-Industrial-Monitor
Features

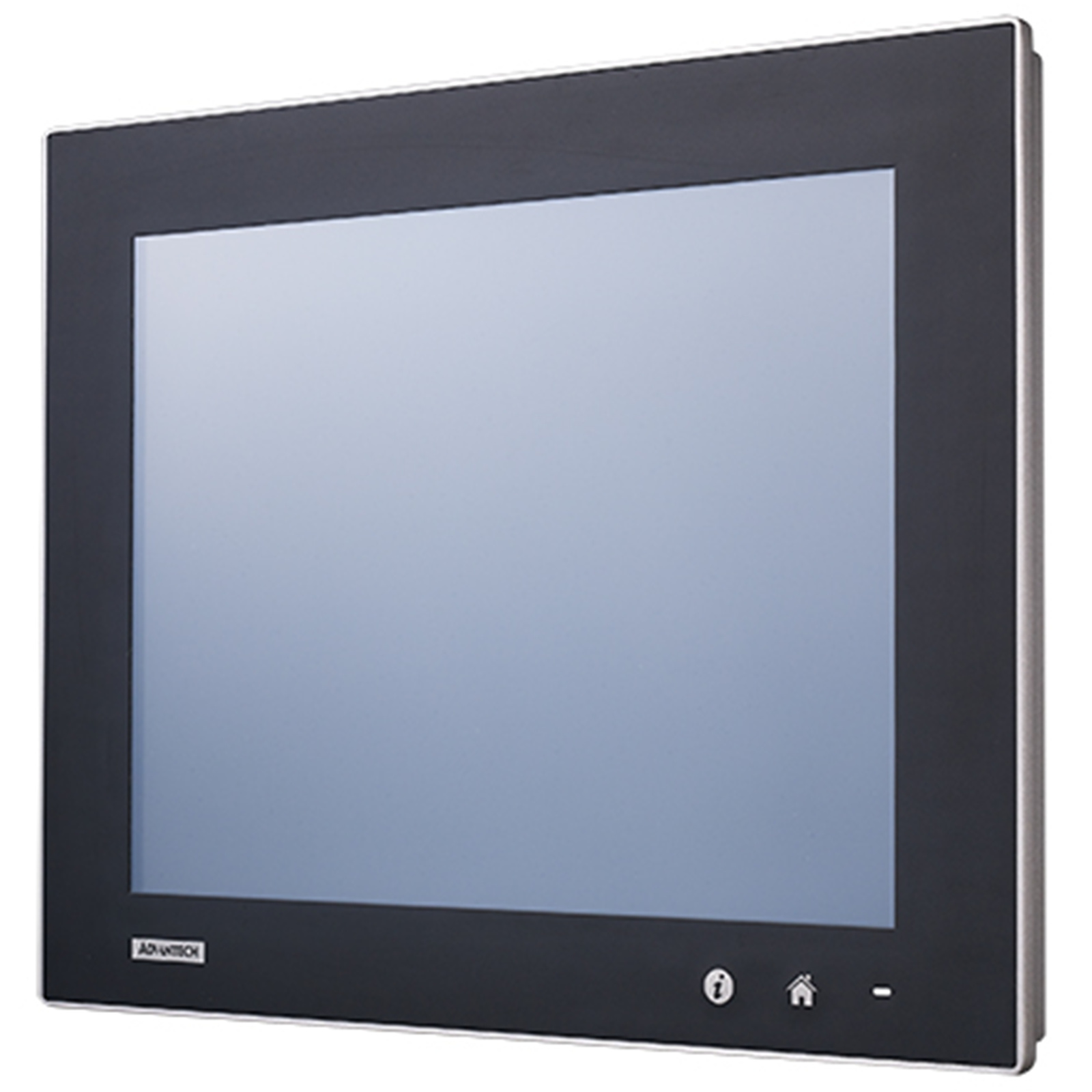

Advantech FPM-1150G-RVAE 15" XGA Industrial Monitor with Resistive Touchscreen and VGA Port
In IoT and Industry 4.0, more and more customers need data to be visualized to help management decision making. FPM-1150G is an industrial-grade 15 TFT LCD monitor with
LED backlight flat panel and a changeable front bezel (with updated appearance). FPM-1150G provides an entry level industrial monitor not only for industrial applications but also
for a variety of IoT scenarios. The FPM-1150G front bezel can be changed to stainless steel for those applications requiring anti-corrosion or clean environments. In conclusion,
FPM-1150G is a highly reliable, tough, and adaptable display solution for Industry 4.0 and IoT.
- 15" XGA TFT LED LCD with 70,000 backlight life time
- Robust design with aluminum front panel
- Supports VGA interface with USB touchscreen
- Supports panel, wall, desktop, or VESA arm mounting
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-1150G/Product%20-%20Datasheet/FPM-1150G_DS(10.22.18)20181206182723.pdf
Specifications
General
Button Controls
Front iKey-type OSD buttons
Certification
CCC, CE, FCC, UL
Dimensions (W x H x D)
392.3 x 313.6 x 51.2 mm (15.44" x 12.35" x 2.02")
Enclosure
Front panel: Die-casting aluminium,
Rear cover: Die-casting aluminium
Mounting
Panel, wall, desktop, VESA arm
Power Input
External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Video Port
VGA 777
Weight (Net)
4kg (8.82 lb)
LCD Display
Display Type
XGA TFT LCD with LED backlight
Display Size
15"
Max. Resolution
1024 x 768
Max. Color
16.2M
Viewing Angle (H/V)°
160°(V),140°(H)
Luminance (cd/m²)
300
Backlight Life (hrs)
70,000
Contrast Ratio
2000:1
Touchscreen
Interface Combo
USB Interface
Lifespan
36 million times with R8 silicone rubber finger, @ 2 250g presses per second
OS Support
Windows® 7, 8, 10, XPe, CE and Linux
Environment
Operation Temperature
0 ~ 50°C (32 ~ 122°F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Humidity (Storage)
10 ~ 95% non-condensing
Waterproof
Front Panel IP65 Compliant
Vibration
5 ~ 500 Hz, 1 Grms (operating, random)
Included
FPM-1150G-RVAE 15" XGA Industrial monitor W/ res, touch & VGA input (adapter included)
