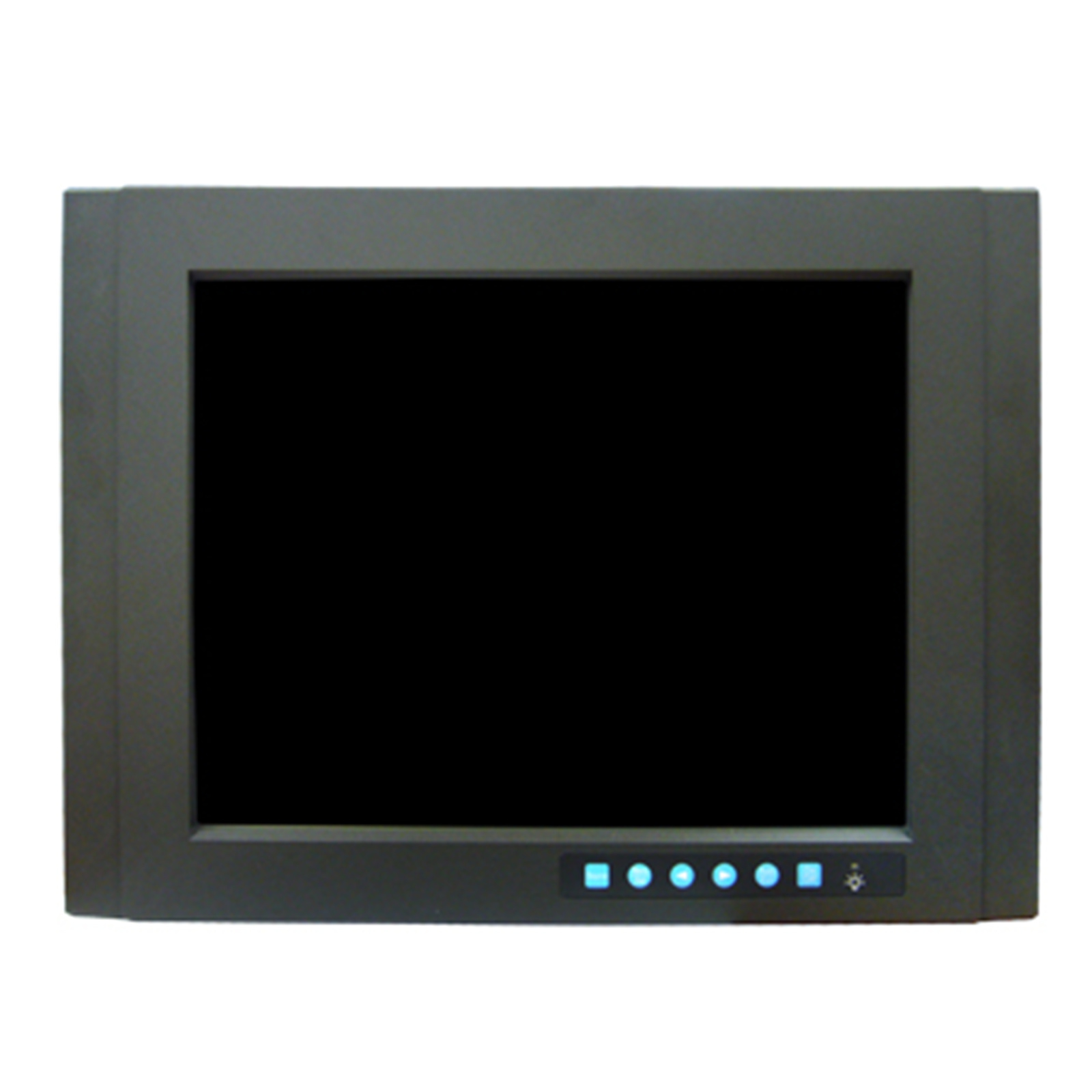

Advantech FPM-3151G-R3BE 15" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports, and Wide Operating Temperature
- Brand: Advantech
- MPN: FPM-3151G-R3BE
- Part #: IPCAVH220709

Product URL: https://www.pbtech.com/au/product/IPCAVH220709/Advantech-FPM-3151G-R3BE-15-XGA-Industrial-Monitor
Features
The FPM-3151G is an extremely rugged and reliable 15" XGA industrial monitor aimed at diverse industrial applications. Equipped with a hard anodized-aluminum coating, stainless steel chassis, and wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), FPM-3151G can withstand operation in a wide range of harsh industrial environments. This monitor also features enhanced 5-wire resistive touch control and overall ground isolation protection to enhance the system's reliability. Additionally, the FPM-3151G is equipped with lockable OSD keys on the front panel that control two user-defined function settings.
- 15" XGA TFT LED LCD with 50K backlight lifetime
- Robust anodized aluminum-coated front bezel and stainless steel rear cover
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Increased reliability with enhanced 5-wire resistive touch sensor
- Anti-glare screen with tempered glass and IP65-certified front panel
- Ground isolation protection for entire system
- Supports VGA/DVI input, dual touch interfaces, and two power inputs
- Front-lockable OSD keys with user-defined functions
- IP65-rated front panel
- Supports panel, VESA, wall, desktop, and stand mounting
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-3151G/file/FPM-3151G_DS(122922)20230106150440.pdf
Specifications
General
OSD Controls
OSD control pad on front panel with lockable function
Two user-defined contrast/brightness settings
Certification
CE, FCC Class A, BSMI, CCC, UL, Energy Star
Dimensions (W x H x D)
422 x 310 x 70 mm (16.61 x 12.2 x 2.76 in)
Enclosure
Front panel: Aluminum with hard anodizing coating
Rear cover: Stainless steel with ground isolation protection
Mount Options
Panel, wall, desktop, VESA arm
Power Input
Phoenix Jack: 24 VDC input
DC Jack: 12 VDC input
Power Consumption
12W +20%
Video Port
VGA & DVI-D Port
Weight (Net)
7.73 kg (17.04 lbs)
LCD Display
Display Type
XGA TFT LCD
Backlight Type
LED
Display Size
15"
Max. Resolution
1024 x 768
Max. Color
16.2M (RGB 8-bit)
Viewing Angle (H/V °)
160/140
Luminance (cd/m²)
350
Backlight Life
50,000 hr
Contrast Ratio
700:1
Touchscreen
Driver
Penmount 6000
Type
5-wire resistive with enhanced ITO film
Interface
USB & RS-232 (Combo)
Lifespan
36 million with a silicone rubber R8 finger, writing rate is by 250g at 2 times/s
Light Transmission
> 80%
OS Support
Windows XP,2000,Vista,7,8/8.1,10 , XP/7/8/10 Embedded,CE,Linux
Power Consumption
+5 V @ 100 mA
Touch Resolution
Linearity
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 80 °C (-22 ~ 176 °F)
Humidity (Storage)
90% @ 50 °C non-condensing
IP Rating
Front panel is IP65 compliant
Shock
11ms, 10G (Non Operating, Half Sine Wave)
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
