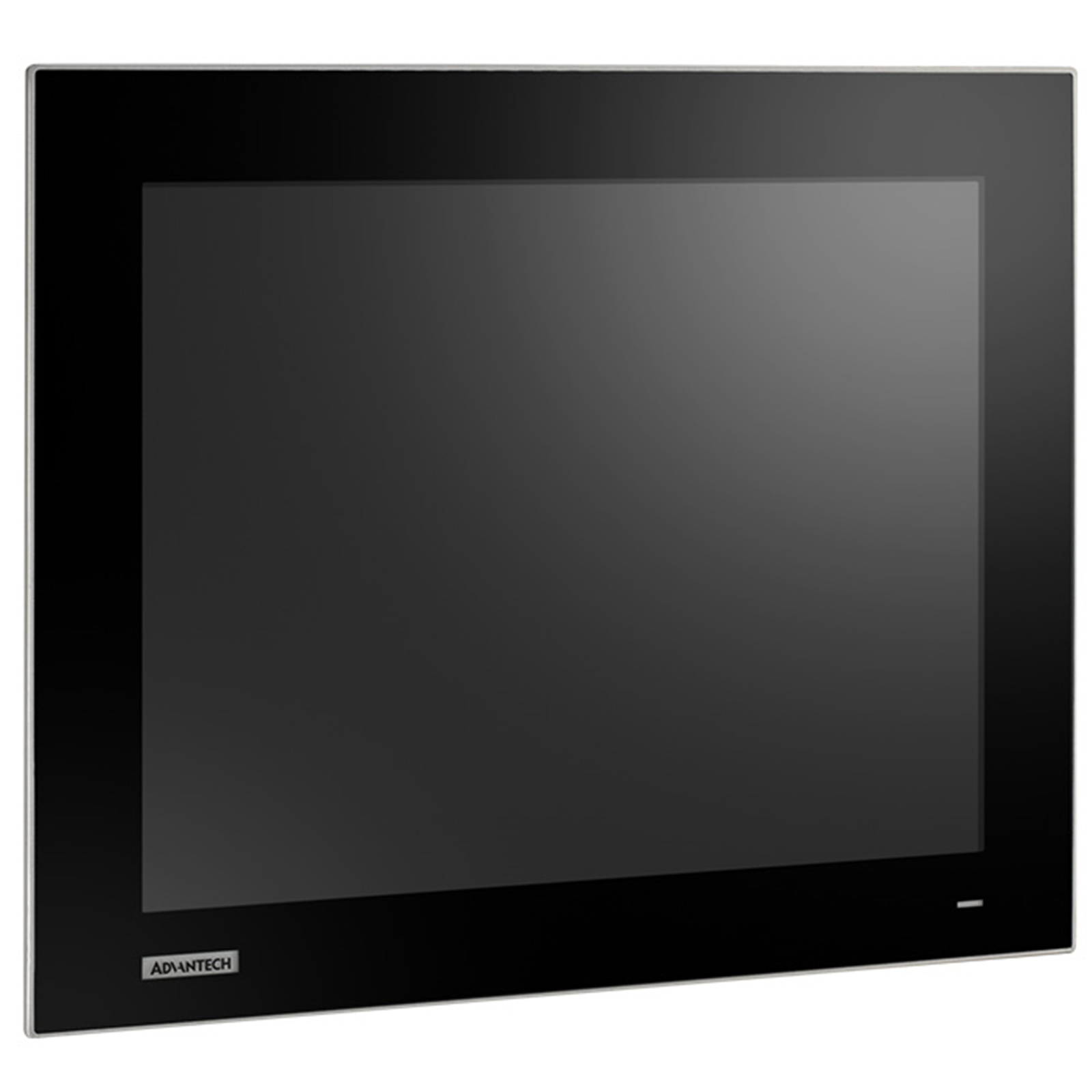

Advantech FPM-719-R9AE 19" SXGA Ind. Monitor,w/Resistive TS, OSD, 24 VDC in
Advantech FPM-719-R9AE 19" SXGA Ind. Monitor,w/Resistive TS, OSD, 24 VDC in
- Brand: Advantech
- MPN: FPM-719-R9AE
- Part #: IPCAVH220720
- UPC:
View all shipping info
- Brand: Advantech
- MPN: FPM-719-R9AE
- Part #: IPCAVH220720
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech FPM-719-R9AE 19" SXGA Ind. Monitor,w/Resistive TS, OSD, 24 VDC in
- Brand: Advantech
- MPN: FPM-719-R9AE
- Part #: IPCAVH220720

Product URL: https://www.pbtech.com/au/product/IPCAVH220720/Advantech-FPM-719-R9AE-19-SXGA-Ind-MonitorwResisti
Features
19" SXGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-700 series comprises 15", 17" and 19" industrial-grade monitors with sleek, simple lines and a true-flat touchscreen. Equipped with durable 5-wire resistive touchscreen and an IP66-rated front bezel, FPM-700 series is specifically designed for industrial applications. Moreover, FPM-700 series support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
- 19" SXGA TFT LED LCD with 70,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- OSD control buttons with 2 user-defined contrast/brightness controls
- Combo RS-232 & USB interface for touchscreen functionality
- Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-717/file/FPM-715_717_719_DS(050523)20230508091704.pdf
Specifications
General
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
FPM-719: 454 x 379.8 x 48.5 mm (17.87 x 14.9 x 1.9 in)
Enclosure
Front panel: Die cast magnesium alloy
Rear cover: Die-casting aluminum
Mount Options
Stand, Wall, Panel and VESA arm (75 x 75mm)
Power Input
Terminal Block: 24 VDC input
Video Port
HDMI, DP, and VGA
USB
Rear I/O USB 2.0 type A
Weight (Net)
6.2 kg
Power Consumption
FPM-719-R9AE 1.04 (Standby), 15.44 (Max)
LCD Display
Display Type
SXGA TFT LCD
Display Size
19"
Max. Resolution
1280 x 1024
Max. Color
16.7M
Viewing Angle (H/V °)
170/160
Luminance (cd/m ² )
350
Backlight L ife
70,000 hr
Contrast Ratio
1000:1
Touchscreen
Type
5-wire analog resistive
Interface
USB/RS232
Light Transmission
Above 75%
OS Support
Windows XP, Vista,7, 8, 10, 11, XPe and Linux
Surface Hardness
4H
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Relative Humidity
Operating, 95% RH @ 40 °C, Non-Condensing
Non-Operating, Operating, 95% RH @ 60 °C, Non-Condensing
IP Rating
IP-66 graded front panel
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
