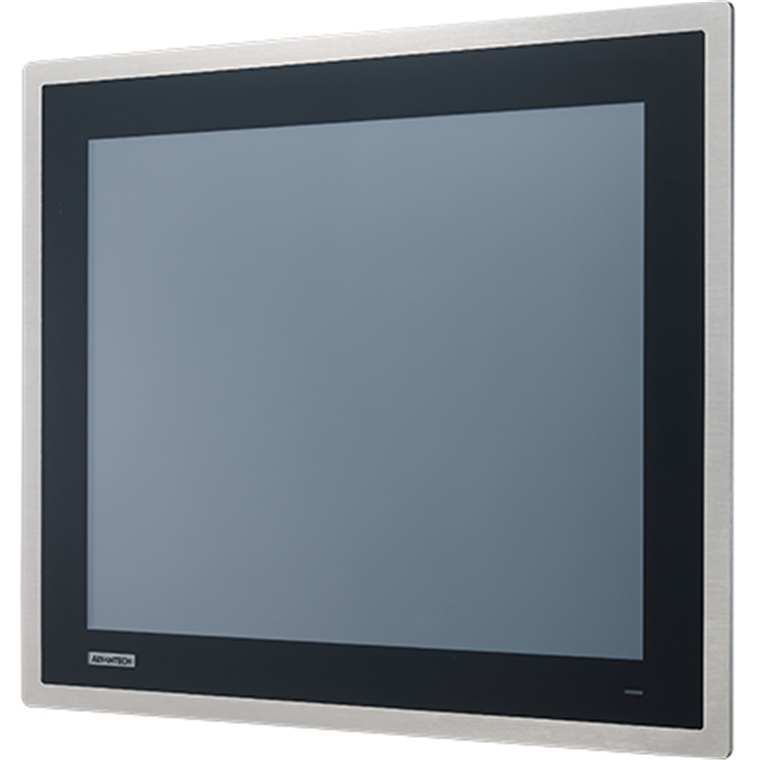

Advantech FPM-815S-R6AE 15" XGA Industrial Monitor with Resistive Touch Control, Direct VGA, DP Ports, and 304 Stainless Steel Front Bezel
- Brand: Advantech
- MPN: FPM-815S-R6AE
- Part #: IPCAVH220723

Product URL: https://www.pbtech.com/au/product/IPCAVH220723/Advantech-FPM-815S-R6AE-15-XGA-Industrial-Monitor
Features
FPM-800S series is a rugged and reliable industrial monitor, which also supports wide-temperature that make it suits almost all applications. True flat IP66-rated front brings not only the elegant outlook, it also provides protection from water and dust intrusion that making daily cleaning easier. With the support for a wide operating temperature range (-20 ~ 60°C / -4 ~ 140°F) and 304 stainless steel front bezel, FPM-800S is especially suitable in hygiene-demanding and hazardous environments.
- 15" XGA TFT LED LCD with 70K backlight lifetime
- Robust design with 304 stainless steel front bezel and anti-rust coated SPCC rear cover
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Increased reliability with enhanced 5-wire resistive touch sensor
- Anti-glare screen with tempered glass and IP66-certified front panel
- Direct VGA & DP video input interface
- OSD control pad with lockable function on rear panel
- Supports panel, VESA, wall, desktop, and stand mounting
Specifications
General
OSD Controls
OSD control pad on rear panel with lockable function
Two user-defined contrast/brightness settings
Certification
CE, FCC Class A, BSMI, CCC, UL
Dimensions (W x H x D)
405.3 x 329.4 x 59.3 (15.96 x 12.97 x 2.33 in)
Enclosure
Front panel: 304 stainless steel bezel
Rear cover: SPCC with anti-rust coating
Mount Options
Panel, wall, desktop, VESA arm
Power Input
Phoenix Jack: 24 VDC input
Power Consumption
12W +20%
Video Port
VGA & DP Port
Weight (Net)
7.73 kg (17.04 lbs)
LCD Display
Display Type
XGA TFT LCD
Backlight Type
LED
Display Size
15"
Max. Resolution
1024 x 768
Max. Color
16.7M
Viewing Angle (H/V °)
176/176
Luminance (cd/m² )
500
Backlight Life
70,000 hr
Contrast Ratio
2500:1
Touchscreen
Driver
Penmount 6000
Type
5-wire resistive with enhanced ITO film
Interface
USB
Lifespan
36 million with a silicone rubber R8 finger, writing rate is by 250g at 2 times/s
Light Transmission
> 80%
OS Support
Windows XP, 2000, Vista, 7/8/10 Embedded, CE, Linux
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 70 °C (-22 ~ 158 °F)
Humidity (Storage)
10 ~ 90% non-condensing
IP Rating Front panel
IP66
Shock
11ms, 10G (Non Operating, Half Sine Wave)
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
