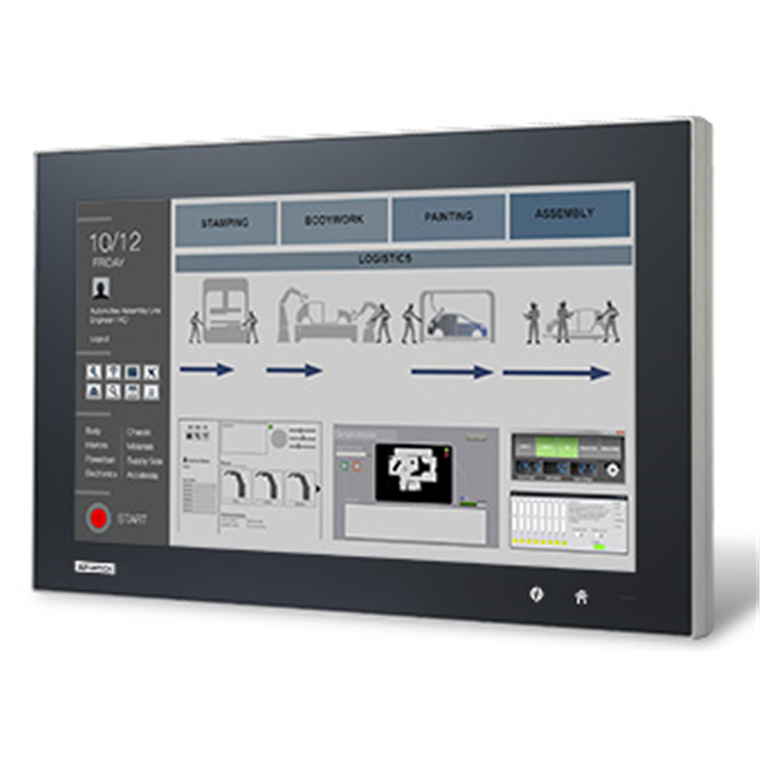

Advantech FPM-D15T-BE 15" XGA Display Module, PCT, w/o Antenna
Advantech FPM-D15T-BE 15" XGA Display Module, PCT, w/o Antenna
- Brand: Advantech
- MPN: FPM-D15T-BE
- Part #: IPCAVH220727
- UPC:
View all shipping info
- Brand: Advantech
- MPN: FPM-D15T-BE
- Part #: IPCAVH220727
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech FPM-D15T-BE 15" XGA Display Module, PCT, w/o Antenna
- Brand: Advantech
- MPN: FPM-D15T-BE
- Part #: IPCAVH220727

Product URL: https://www.pbtech.com/au/product/IPCAVH220727/Advantech-FPM-D15T-BE-15-XGA-Display-Module-PCT-wo
Features
Advantech FPM-D15T-BE 15" XGA Display Module, PCT, w/o Antenna
Advantech's Modular display series are equipped with industrial grade LCD and Projected Capacitive touch screens, providing the best user experience and reliable operation. The modular design ensures flexible configuration and easy maintenance/upgrades. Its robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress.
- Modular front display design in three application-based module categories, enabling flexible configurations
- Front panel module with P-CAP multi-touch sensor available in various sizes (12" and 19" module is equipped with 5-wire resistive touch control)
- Industrial-grade LED LCD with 50,000 hours (18.5"/23.8" 30,000 hours, 15" 70,000 hours) lifetime
- Built-in intelligent home key and i-Key (only models with P-CAP touch)
- System status LED indicators in front panel
- IP66-rated front panel and panel mount
- Optional Wi-Fi antenna and NFC reader on the front panel (not available in 12" and 19")
- Rear mounted computing box or monitor box module is compulsory to activate display module
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-Display/file/8-x-Interchangeable-Display-Modules_DS(031124)20240313093934.pdf
Specifications
Environment
Ingress Protection
IP66
Operating Temperature
-20~60 °C (-33~140 °F)
Storage Temperature
-20~70 °C (-4~158 °F)
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
LCD Display
Backlight Life (hrs)
70,000
Display Size
15"
Luminance (cd/m²)
300
Max. Resolution
1024 x 768
Viewing Angle (H/V°)
176/176
Mechanical
Dimension (W x H x D)
384 x 308 x 28 mm
Mounting
Panel, Wall, Stand, VESA
Weight (Net)
4 kg
Touchscreen
Touch Type
PCAP
