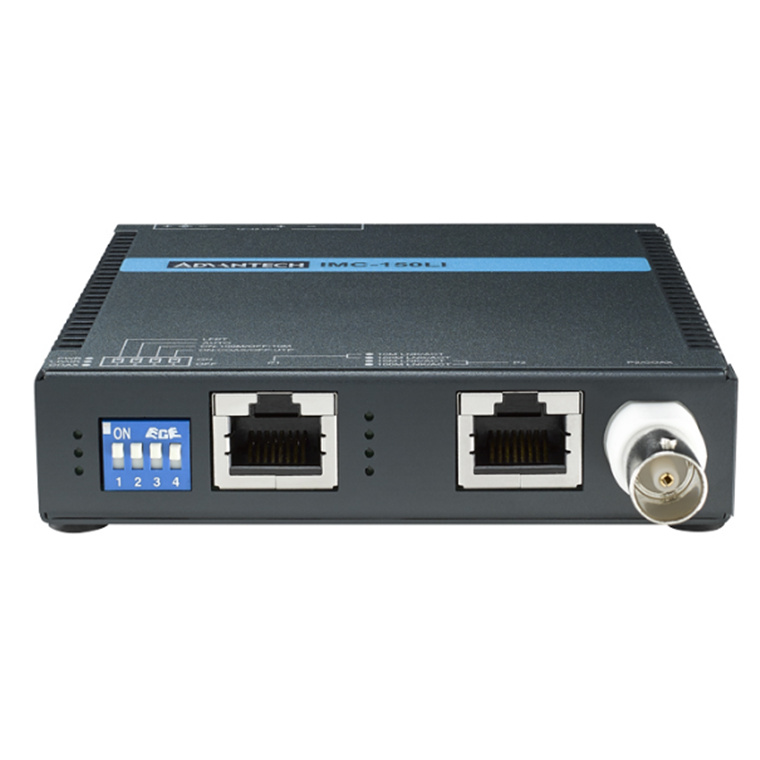

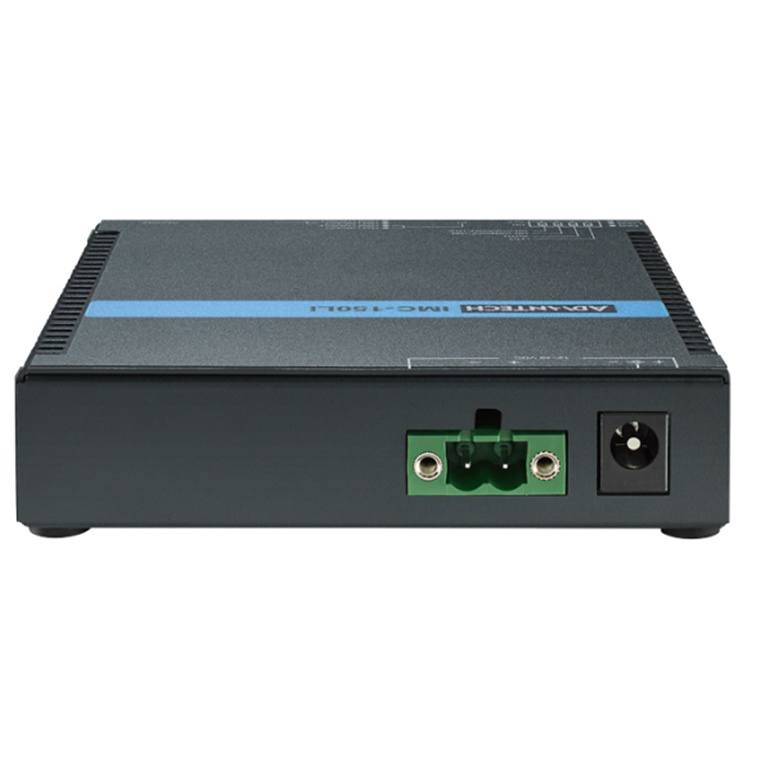

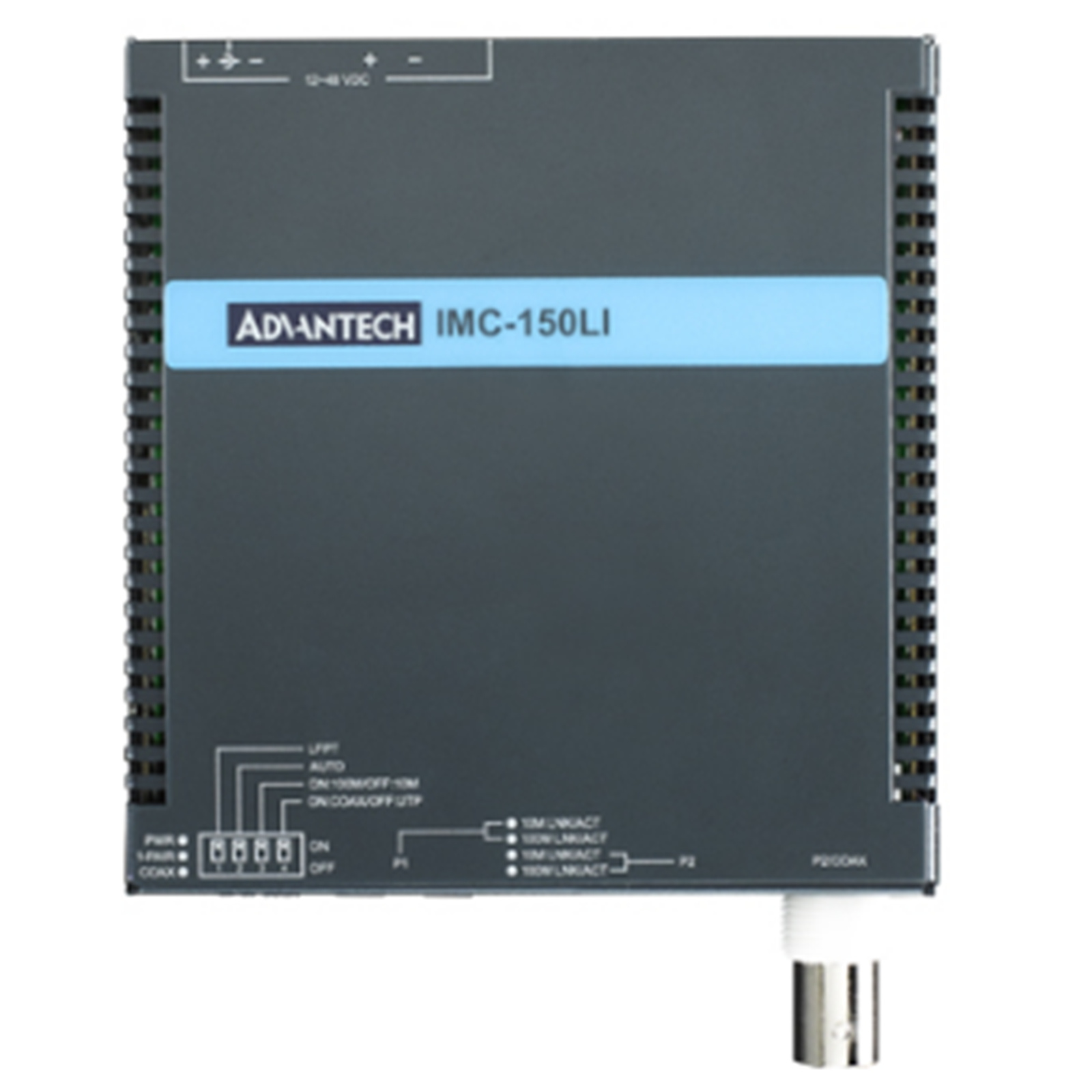

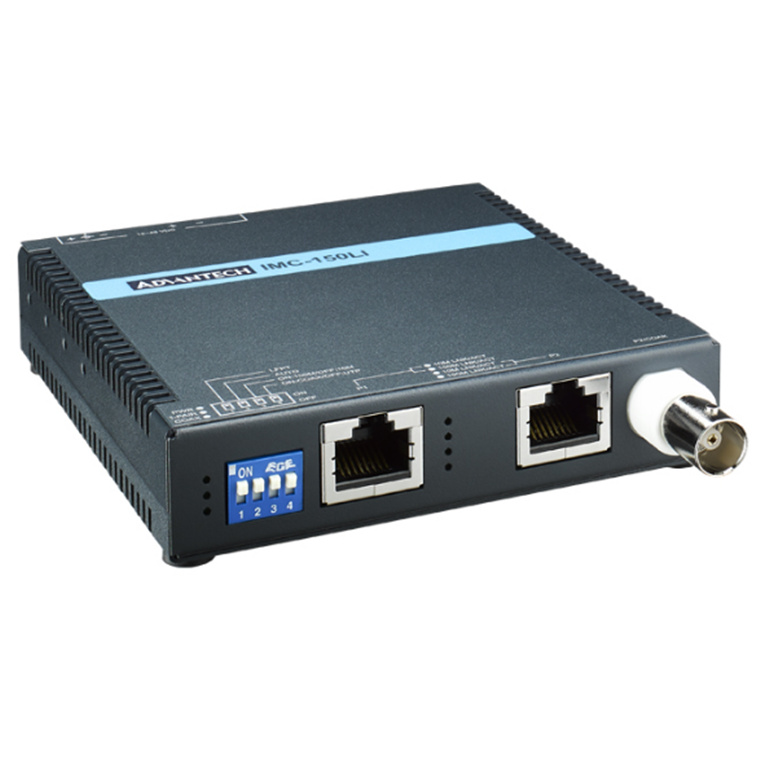

Advantech IMC-150LI Hardened Long Reach Ethernet Extender, UTP, Coaxial
- Brand: Advantech
- MPN: IMC-150LI
- Part #: IPCAVH220741

Product URL: https://www.pbtech.com/au/product/IPCAVH220741/Advantech-IMC-150LI-Hardened-Long-Reach-Ethernet-E
Features
IMC-150LI Hardened Long Reach Ethernet Extender, UTP, Coaxial
- Extends Ethernet up to 800m at 10 Mbps or 500m at 100 Mbps over UTP cable
- Extends Ethernet up to 1km at 10 Mbps or 500m at 100 Mbps over Coaxial cable
- Railway Trackside EN 50121-4
- Features Link Fault Pass Through (LFPT)
- Switch-selectable for configuring LAN rate and connection type
Specifications
MPN
IMC-150LI
Ethernet Communication
RJ-45 Port Number
2
Coaxial Port Number
1
Fiber Transmission Speed
10/100 Mbps
PoE Information
PoE Port Number
1
PoE-PD
Yes
Power
Power Input (DC)
12 ~ 48 VDC
Mechanism
Dimensions (W x H x D)
92.58 x 21.08 x 98.04 mm ( 3.65 x 0.83 x 3.86 in.)
Weight
0.4 kg
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity
10~95% (non-condensing)
Certification
EMC
CE, FCC Class A, CSA
