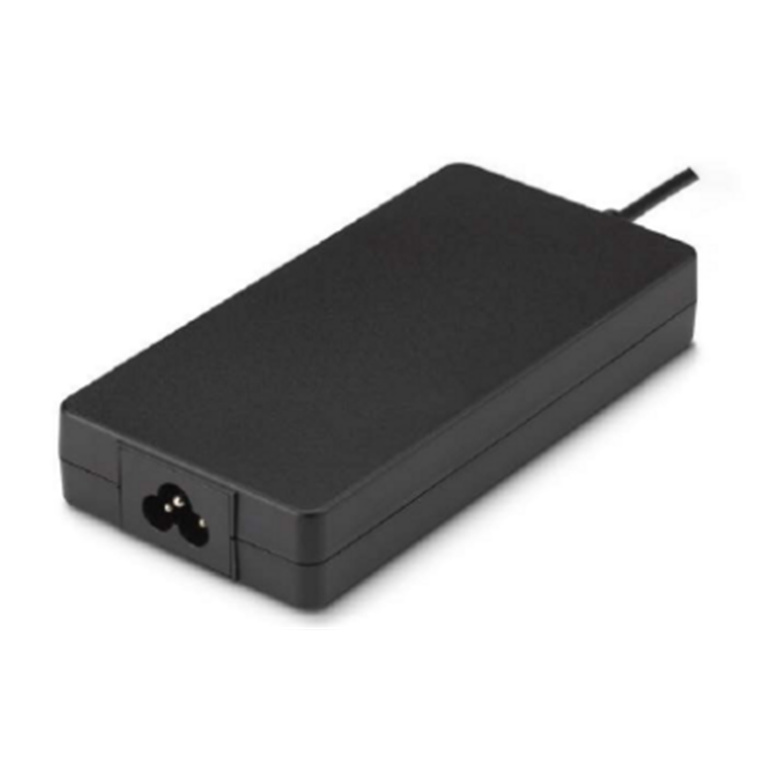

Advantech IMC-150PS-120 ADP A/D 100-240V 54V 120W DC Plug
- Brand: Advantech
- MPN: IMC-150PS-120
- Part #: IPCAVH220745

Product URL: https://www.pbtech.com/au/product/IPCAVH220745/Advantech-IMC-150PS-120-ADP-AD-100-240V-54V-120W-D
Features
IMC-150PS-120 120 Watts AC to DC Adapter
- Certified with IEC 62368-1 & CB 60950-1
- Meets USA EISA 2007
- Meets Energy Efficiency DOE Level VI
- Meets Code of Conduct Version 5 Tier 2
- Supports surge 6KV
- High Reliability
- Over Current Protection, Over Temperature Protection, and Over Voltage Protection
- With PFC Circuit
For more information: https://advdownload.advantech.com/productfile/PIS/IMC-150PS-120/file/IMC-150PS-120_DS(060122)20220616130341.pdf.
Specifications
MPN
IMC-150PS-120
Input Specifications
Rated Input Voltage Range
100 ~ 240VAC
Input Voltage Range
90VAC to 264VAC
Input Current
=1.8A
Input Frequency Range
47Hz - 63Hz (±1Hz)
Output Specifications
DC Output
54.0V 2.22A, 120.0W
Efficiency (%)
100VAC / 2.14A load ( =89%)
240VAC / 2.14A load (=91%)
Power de-rating
100VAC or 240VAC
0°C to 40°C, 100% load
50°C, 85%load
60°C, 70% load
70°C, 55% load
Mechanical
Form Factor
Desktop
Input AC socket Type
IEC 320-C14 Type
Dimension (L x W x H)
151.3 X 75.6 X 25.4 mm
Vibration
Non-operating, 0.01g2/Hz at 5Hz
slopping to 0.02g2/Hz at 20Hz,
And maintain 0.02g2/Hz from 20Hz ~ 500Hz
MTBF
300,000 hours at 25°C
Environmental Specification
Storage Temp.
-20 to +80°C
Storage Humidity
10 - 90% RH non-condensing
Operating Temp. (°C)
0 to + 40°C
Safety
Safety & EMC
CB60950/UL62368/TUV62368
CE/RCM/AU-GEMS/CCC/BSMI/ PSE
FCC Part 15B CLASS B/ CISPR32 EN55032 CLASS
B/VCCI LEVEL II
RoHs
YES
