Advantech IMC-310I-SFP-A 10G Ethernet Media Converter
- Brand: Advantech
- MPN: IMC-310I-SFP-A
- Part #: IPCAVH220746

Product URL: https://www.pbtech.com/au/product/IPCAVH220746/Advantech-IMC-310I-SFP-A-10G-Ethernet-Media-Conver
Features
IMC-310I-SFP 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. IMC-310I-SFP supports 10 x Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode. It utilizes a 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches, and patch panels. IMC-310I-SFP supports transmission distance from 400m up to 80km to facilitate 10G equipment and device deployment.

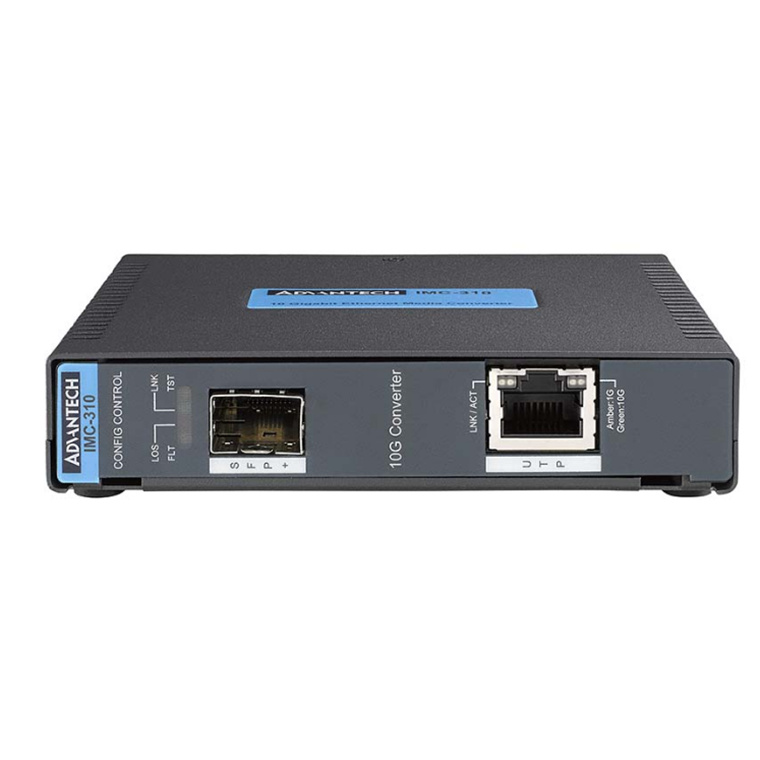

- Provides 1xRJ45 to 1xSFP/SFP+ fiber port
- Copper port interface supports 10G/5G/2.5G/1G/100M BASE-T
- Copper port provides full/half duplex flow control
- Supports store and forward transmission
- Supports MDI/MDI-X, auto-negotiation

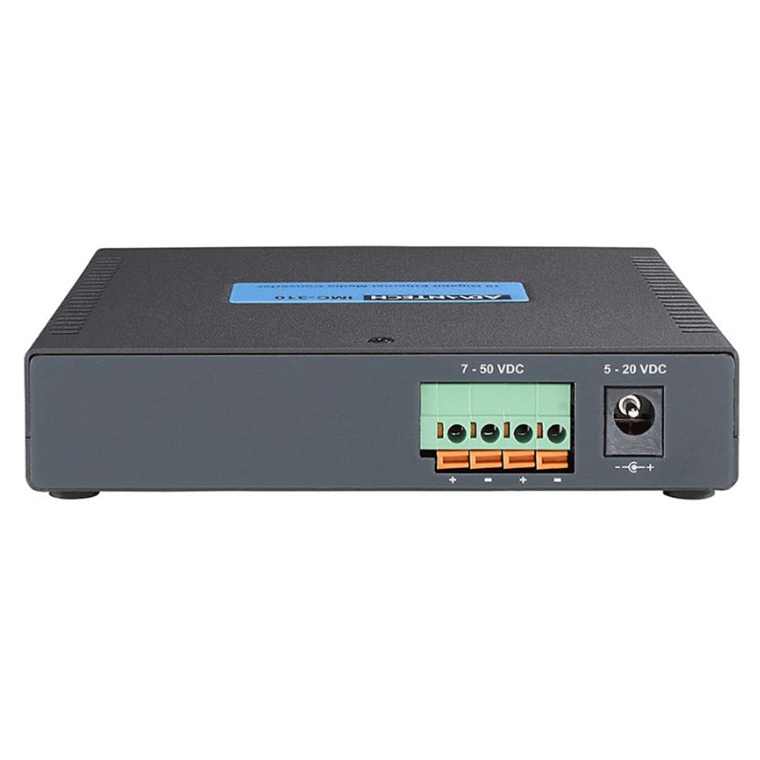

- Supports AC/DC power inputs dual mode power inputs
- Provides flexible mounting: DIN-Rail and panel mounts
- Supports Link Fault Pass-Through (LFPT) for troubling shooting
- Supports fiber port distance from 400m up to 80km
For more information: https://advdownload.advantech.com/productfile/PIS/IMC-310I-SFP-A/file/IMC-310I-SFP_DS(122122)20230116113845.pdf
Specifications
MPN
IMC-310I-SFP-A
Ethernet Communication
Ethernet Standard
IEEE 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x
RJ-45 Port Interface
10G/5G/2.5G/1G/100 BASE-T
Fiber Port Interface
SFP+
RJ-45 Port Number
1
Interface
Port Number
2
Mechanism
Dimensions (W x H x D)
10.92 x 2.28 x 10.16 cm (4.30 x 0.90 x 4.00 in.)
Environment
Operating Temperature
-20 ~ 60°C (-4 ~ 140°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Power
Power Input (DC)
7 ~ 50 VDC, 1A
Power Consumption
4W
Certification
EMC
CE, FCC Class A
EMS
EN 61000-4-2 , EN 61000-4-3 , EN 61000-4-4 , EN 61000-4-5 , EN 61000-4-6 , EN 61000-4-8 ,EN61000-4-11
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
