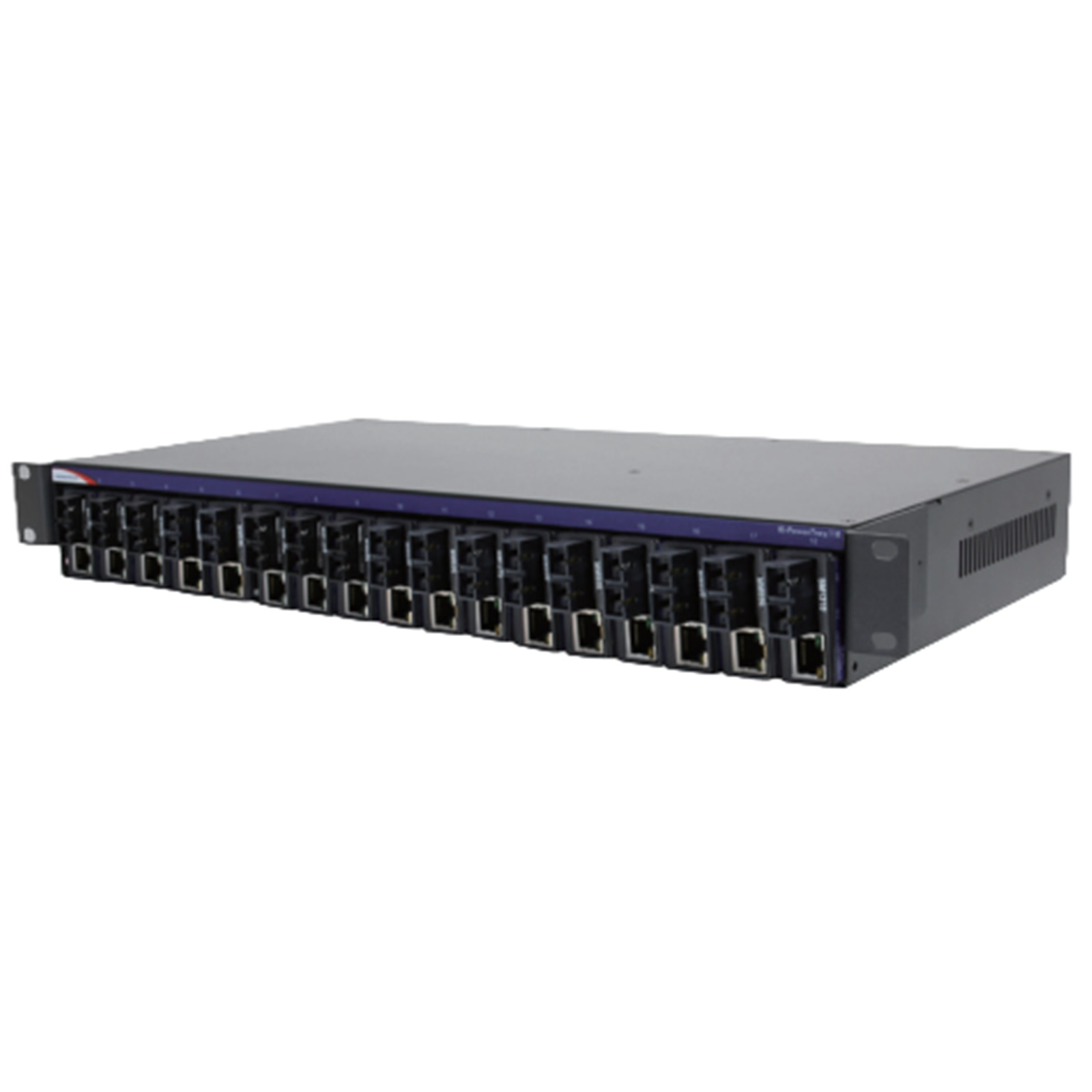

Advantech IMC-318I-US Hardened Centralized Powered Media Converter Chassis, Rackmount, 18-slot chassis, US power cord (also known as IE-PowerTray 850-13086)
Advantech IMC-318I-US Hardened Centralized Powered Media Converter Chassis, Rackmount, 18-slot chassis, US power cord (also known as IE-PowerTray 850-13086)
- Brand: Advantech
- MPN: IMC-318I-US
- Part #: IPCAVH220748
- UPC:
View all shipping info
- Brand: Advantech
- MPN: IMC-318I-US
- Part #: IPCAVH220748
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech IMC-318I-US Hardened Centralized Powered Media Converter Chassis, Rackmount, 18-slot chassis, US power cord (also known as IE-PowerTray 850-13086)
- Brand: Advantech
- MPN: IMC-318I-US
- Part #: IPCAVH220748

Product URL: https://www.pbtech.com/au/product/IPCAVH220748/Advantech-IMC-318I-US-Hardened-Centralized-Powered
Features
The IMC-318I is a centralized powered chassis designed with a modular enclosure that takes up to 18 miniature media converters (the IMC-350/370 series). It provides high port density mounting and emphasizes power efficiency. By easily and effectively connecting multiple converters in one chassis, the IMC-318I eliminates the mass needs of AC power adapters, saving network device construction space.
- 18-slot chassis
- Modular design, hot-swappable
- Supports an extended operating temperature range
- Features internal AC power
Specifications
Technical
18 slot chassis that can house miniature media convert IMC-350/370 series
Single AC power supply included
Fits into a 19" rack ; table top mounting
Power AC
100-240 VAC, 1.5A
MTBF
MTBF
150,422 hours
Environment
Operating Temperature
-25 to +70 °C (-13 to +158 °F)
Storage Temperature
-25 to +70 °C (-13 to +158 °F)
Operating Humidity
5 ~ 95% (non-condensing) 0 ~ 10,000 ft. altitude
Mechanical Dimensions (H x W x D)
5.8 x 43.10 x 23.5 cm (2.30 x 16.97 x 9.25 in)
Weight
4.5 kg (10.0 lb)
Certifications
CE, FCC Class A, UL/cUL, CSA
