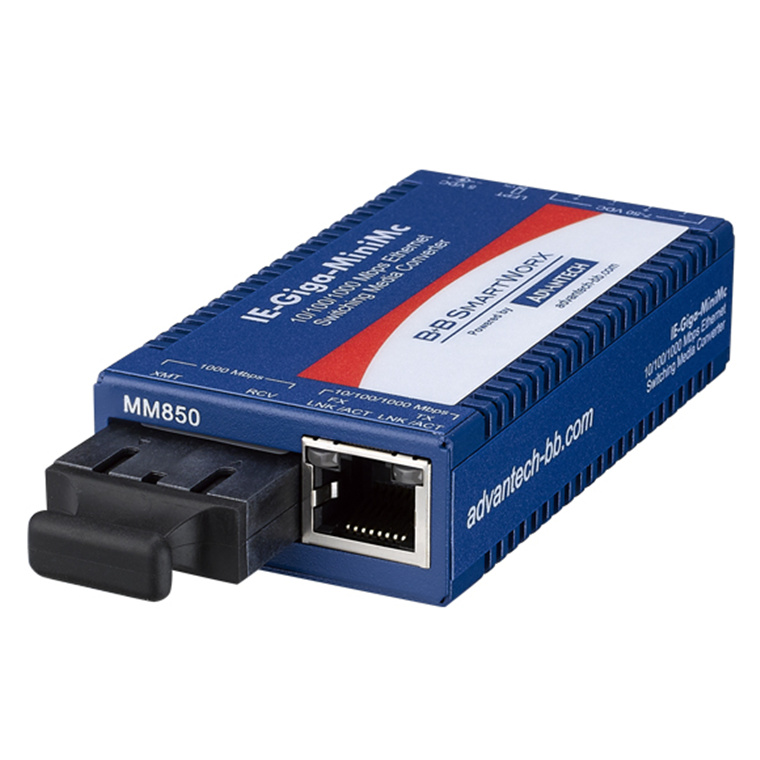

Advantech IMC-370I-MM-PS-A Mini Hardened Media Converter, 1000Mbps, Multimode, LFPT, 850nm, 550m, SC, AC adapter
- Brand: Advantech
- MPN: IMC-370I-MM-PS-A
- Part #: IPCAVH220793

Product URL: https://www.pbtech.com/au/product/IPCAVH220793/Advantech-IMC-370I-MM-PS-A-Mini-Hardened-Media-Con
Features
The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrallypowered media converter chassis.
- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature range
- Provides status LED
- Supports multiple power options: AC or DC adapter and dual USB cable
- Supports Link Fault Pass Through (LFPT)
- Centralized powered IMC-318I chassis
Specifications
MPN
IMC-370I-MM-PS-A
Also Known As
856-18830-A
Optical Mode
Multi-Mode
Wavelength
850 nm
Distance
550 m
Optical Connector
SC
Power Adapter
Yes
Technical
IEEE 802.3, 802.3u, 802.3ab, 802.3z
Supports jumbo frames up to 10240 bytes
Plug-and-play operation
Status LED
AutoCross for MDI/MDIX
Supports Link Fault Pass Through (LFPT)
Terminal DC power block
Power Input
100 - 240V DC, 50-60Hz, 2A (IMC-370I AC input)
7 - 50V DC, 1A-0.1A (IMC-370I DC input)
Environment
Operating Temperature
-10 to +50 °C (+14 to +122 °F) (IMC-370I AC input)
-25 to +85 °C (-13 to +185 °F) (IMC-370I DC input)
Storage Temperature
-35 to +75 °C (-31 to +167 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 ~ 10,000 ft. altitude
Mechanical
Dimensions (H x W x D)
2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in)
Weight
0.317 kg (0.7 lb)
Certifications
CE, FCC Class B, UL/cUL
