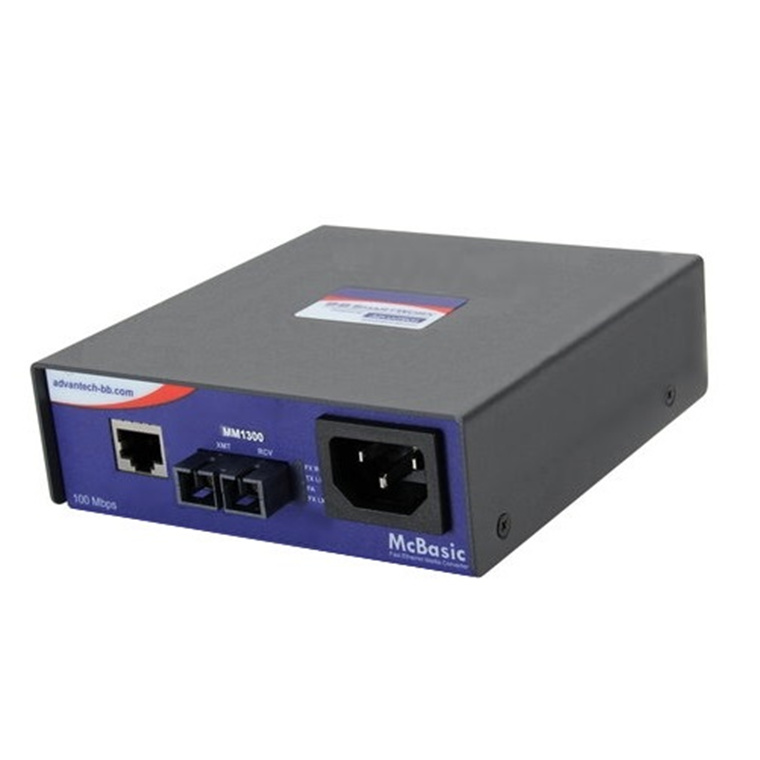

Advantech IMC-450-MM-US-A McBasic, TX/FX-MM1300-SC
- Brand: Advantech
- MPN: IMC-450-MM-US-A
- Part #: IPCAVH220848

Product URL: https://www.pbtech.com/au/product/IPCAVH220848/Advantech-IMC-450-MM-US-A-McBasic-TXFX-MM1300-SC
Features
The IMC-450 series are standalone media converters with an optional internal power security device that makes the connection between copper and fiber cables. They can be installed anywhere a network connection is required. In addition, these media converters feature automatic link restoration. They increase the scalability of a network by providing rate conversion, distance extension, and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connections.
The IMC-450 series provides one 10/100Mbps copper UTP port and one fiber port. They are available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interface. LFPT can be enabled vis a dip switch on the front of the unit.
- Designed with internal AC power
- Supports diagnostic features including Link Loss and Fiber Alert
- Optional 10/100/1000Mbps copper ports
- Optional Link Fault Pass Through (LFPT)
- Supports range of SFP modules
- Supports multiple mounting options (desktop, DIN rail or wall-mount)
Specifications
MPN
IMC-450-MM-US-A
Media Converter with US power cord
Also Known As
855-10928-A
Ethernet Speed
10/100Mbps
Optical Mode
Multi-mode
Wavelength
1300 nm
Distance
5 km
Optical Connector
SC
Ethernet Connector
1 x RJ45
Technical
IEEE 802.3u 100Base-TX, 100Base-FX or SX
Supports diagnostic LEDs
Supports AutoCross, Link Loss and Fiber Alert
Supports Auto Negotiation
Supports jumbo frame up to 10000 bytes
1 x RJ-45 connector
Power Input
100-240 V AC, 50/60Hz, 1.0A
Environment
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-20 to +70 °C (0 to +160 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 ~ 10,000 ft. altitude
MTBF
1.8 million hours
Mechanical
Dimensions (H x W x D)
4.20 x 12.17 x 11.64 cm (1.64 x 4.75 x 4.9 in)
Weight
0.58 kg (1.3 lb)
Certifications
CE, FCC Class A, UL/cUL, CSA
