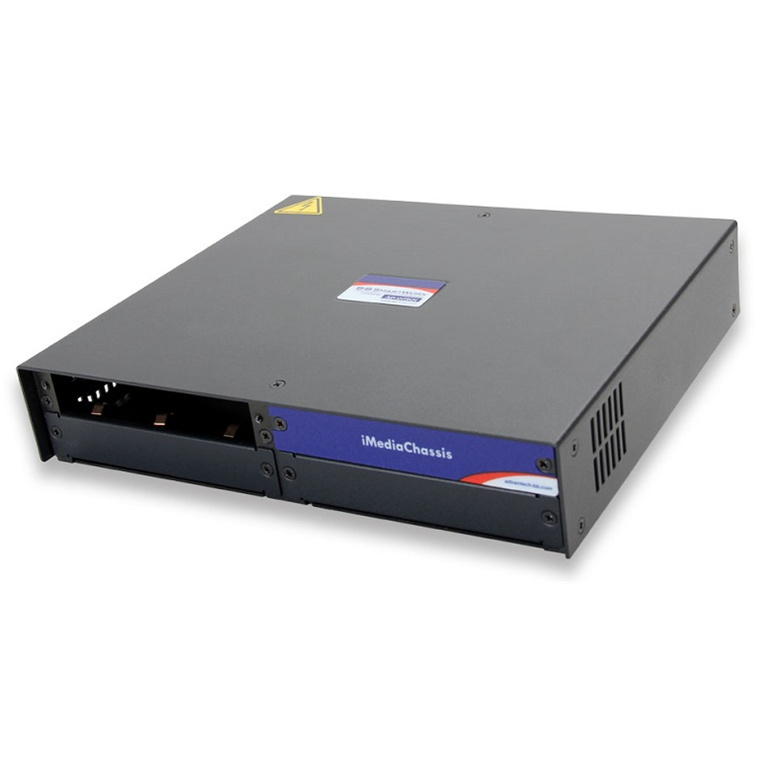

Advantech IMC-713-AC Managed Modular 3-slot Media Converter Chassis, AC Power w/o power cord
Advantech IMC-713-AC Managed Modular 3-slot Media Converter Chassis, AC Power w/o power cord
- Brand: Advantech
- MPN: IMC-713-AC
- Part #: IPCAVH220879
- UPC:
View all shipping info
- Brand: Advantech
- MPN: IMC-713-AC
- Part #: IPCAVH220879
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech IMC-713-AC Managed Modular 3-slot Media Converter Chassis, AC Power w/o power cord
- Brand: Advantech
- MPN: IMC-713-AC
- Part #: IPCAVH220879

Product URL: https://www.pbtech.com/au/product/IPCAVH220879/Advantech-IMC-713-AC-Managed-Modular-3-slot-Media
Features
The IMC-71x series provides conversion of Ethernet-to-fiber and a variety of networking technologies. It enables network operators to drastically reduce the capital and operational expenses by providing all copper-to-fiber and multi-mode to single-mode conversions and network distance extensions. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit. With AC or DC power options, it is a economical way to overcome a variety of media and mode conversion challenges.
The IMC-713 series has the highest port density in the industry -- along with a robust design, hot-swappable architecture, SNMP management via iView², and redundant power supplies for fault tolerance, which a diverse range of applications, using a variety of protocols, require. The temperature controlled fans in the IMC-713 chassis activate only when the chassis reaches a certain temperature, thereby extending the life of the fans.
- Designed for a variety of media and mode conversion modules
- Supports a wide range of protocols and future-proof upgrade paths
- High flexibility for module combinations for different environments
- Supports AC or DC power
- Standard and extended temperature models available
- Provides 3/6/20-slot chassis that supports low to high density deployment
- Supports SNMP management that uses optional SNMP management module for 3/6/20-slot chassis
- Supports fan test feature
Specifications
MPN
IMC-713-AC
# of slot
3
Power Input
Single AC
Dimensions (H x W x D)
4.57 x 22.19 x 19.05 cm (1.8 x 8.74 x 7.5 inch)
Weights
2.3 kg (5 lbs)
AC Power Input
100-240V AC, 50-60Hz, 0.75A
DC Power Input
35-75V DC, 1.6A
MTBF
172,706 hours
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-20 to +80 °C (-4 to +176 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 to 10,000 feet altitude
Cerifications
FCC Part 15 Subpart B Class B
UL/cUL, CSA, CE
