Advantech IMC-762-SST Managed Modular Media Converter, 100Mbps, Single-Strand 1310xmt, 20km, SC (also known as iMcV 856-14043)
- Brand: Advantech
- MPN: IMC-762-SST
- Part #: IPCAVH220927

Product URL: https://www.pbtech.com/au/product/IPCAVH220927/Advantech-IMC-762-SST-Managed-Modular-Media-Conver
Features

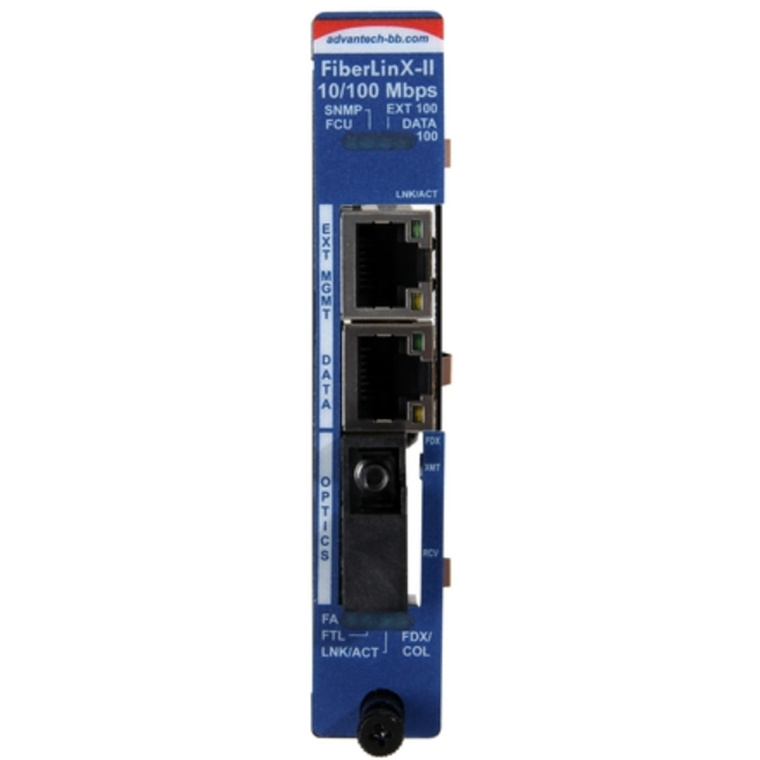

The IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration, and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.
The SNMP software, iVew² , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iVew² , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
- SNMP manageable
- OAM IEEE802.3ag/ah (operation, administration, and management)
- Supports per-port, bi-directional bandwidth control
- Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
- All management traffic remains isolated from the remote LAN
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
Specifications
Technical
IEEE 802.3
IEEE 802.3u
Bi-directional bandwidth control
802.3ag/ah OAM (Operation, Administration & Management)
Y.1731
Read/Write IEEE 802.1Q VLAN-tags
AutoCross for MDI/MDIX
Includes Hot-swappable Architecture
Management
SNMP V1 and V2c compatiblea
GUI-based iVew²
software for remote management and upgrades
IEEE 802.3x flow control
Supports DHCP and TFTP clients
Supports loopback test modes (MAC swap)
Supports LinkLoss, FiberAlert and Link Fault Pass Through
Ethernet Speed
10/100 Mbps
Optical Mode
Single-Strand
Wavelength
1310T/1550R
Distance
20 KM
Optical Connector
SC
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-25 to +70 °C (-13 to +158 °F)
Operating Humidity
5~ 95% (non-condensing)
0 ~ 10,000 ft. altitude
MTBF
1.6 million hours
Dimensions (H x W x D)
10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in)
Weight
0.11 kg (0.30 lbs)
Certifications
FCC Class A, CE, CSA, CB
UL/cUL
