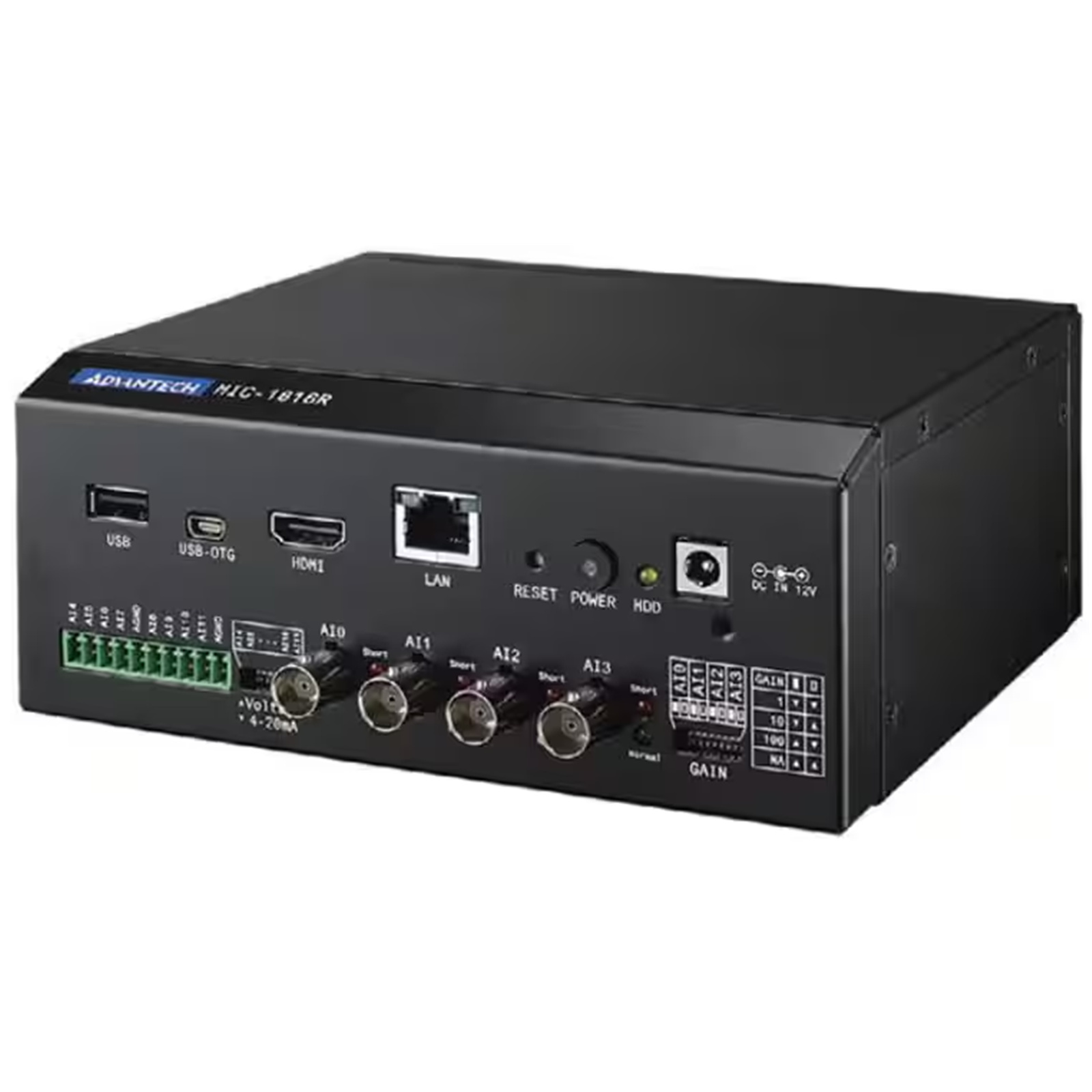

Advantech MIC-1816R-AE 16-bit, 1MS/s, DAQ Platform with ARM Cortex -A9 i.MX6 1GHz
Advantech MIC-1816R-AE 16-bit, 1MS/s, DAQ Platform with ARM Cortex -A9 i.MX6 1GHz
- Brand: Advantech
- MPN: MIC-1816R-AE
- Part #: IPCAVH220948
- UPC:
View all shipping info
- Brand: Advantech
- MPN: MIC-1816R-AE
- Part #: IPCAVH220948
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Industrial Automation & I/O
Advantech UNO-127-E23BA ATOM X6413E/8G/64G 2x RJ45, 2x USB, 1x...
Advantech TPC-B520-D50A Modular TPC - Computing Box Module with...
Advantech UNO-127-E23BA ATOM X6413E/8G/64G 2x RJ45, 2x USB, 1x...
Advantech Modular TPC-B610H-A00A Barebone with Socket LGA1200 for...
Advantech FPM-221W-P4AE 21.5" Full HD Industrial Monitor with P...
Advantech MIC-1816R-AE 16-bit, 1MS/s, DAQ Platform with ARM Cortex -A9 i.MX6 1GHz
- Brand: Advantech
- MPN: MIC-1816R-AE
- Part #: IPCAVH220948
Product URL: https://www.pbtech.com/au/product/IPCAVH220948/Advantech-MIC-1816R-AE-16-bit-1MSs-DAQ-Platform-wi
Features
16-bit, 1MS/s, Sound and Vibration DAQ Platform with ARM Cortex™-A9 i.MX6 1GHz
MIC-1816R is a RISC (ARM) based stand-alone automation controller integrates with data acquisition and signal conditioning to provide IEPE input, analog I/O, isolated digital I/O, and counter functions. This application ready controller also supports serial communication ports and several other networking interfaces to seamlessly enable integration and rapid system development.
- i.MX6 Quad - 4x Cortex-A9 processor
- Sampling rate up to 1MS/s
- 4 x IEPE input with preamp gain = 1,10,100
- 8 x Analog input with voltage or 4~20mA
- 2 x Analog outputs, up to 3 MS/s, 16-bit resolution
- Supports digital and analog triggers
- 16 x isolated digital input and 8 x isolated digital output
- 2 x 32-bit programmable counter/timers
- Onboard FIFO memory (4,000 samples)
- Onboard 2G DDR3 memory design
- Build-in 4G EMMC NAND Flash for OS (Yotco only)
- 2-port RS-232 with surge protection
- 1 x 10/100/1000 Base-T RJ-45 LAN ports
- 1 x USB 2.0 and 1 x USB 2.0 OTG
- 2 x CAN ports transmission speeds up to 1Mbps
Specifications
Analog Input
?Channels
4-ch IEPE and 8-ch general AI (Voltage/Current)
Resolution
16 bits
?Sample Rate
Single channel: 5 MS/s max.;
Multiple channels: 1 MS/s max.
Note: The sampling rate of each channel is influenced by the number of used channels.
For example, if 4 channels are used, the sampling rate will be 1MS/4 = 250 kS/s per channel.
?Trigger Reference
Analog triggers
?Trigger Mode
Start, Delayed Start
Stop, Delayed Stop
?FIFO Size
4,000 samples
?Overvoltage Protection
30 Vp-p
Input Impedance
Voltage : 1 GO
Current : 500 O
Sampling Modes
Software and external clock
Current Input Range
4-20mA (according to voltage range 0~10 V)
Current Input Update Rate
20 KS/s
Current Input -3dB frequency
15 Hz
Analog Trigger Reference
-10 ~ +10 V
Analog Trirgger Resolution
16 bits (0.3 mV/step)
Input Range
Software programmable
Integrated Electronic Piezoelectric (IEPE)Excitation
?Preamplifier Gain
1, 10, 100 switch selectable
?AC Couple Upper Cut-Off
Gain x1, x10(-5%) : 100KHz
Frequency
Gain x100(-1%) : 50KHz
?AC Couple Lower Cut-Off
0.58Hz
?Accuracy
< ±2% for all gain settings
?Complicance
> 24 V
?Current
4 mA
?Discharge Time Constant
> 0.3 seconds
?DC Offset
< 30 mA
Analog Output
?Channels
2-ch Voltage / Current-sink / Current-source (shared)
Resolution
16 bits
Sample Rate
3 MS/s max.
Output Range
Software programmable
Voltage Output Range
0V~5V, 0V~10V, ±5V, ±10V
Current Output Range
4-20mA (according to voltage range 0~10 V)
Current Mode Update Rate
20 KS/s
Current Mode Accuracy
Source : 0.15% FSR
Sink : 0.05% FSR
Current Mode Loading
Source : max. 600 O
Sink : depends on external voltage
Current Sink Voltage
Sink : max. 50 VDC
Isolated Digital Input
?Channel
8
?Isolation Protection
2,500 VDC
Interrupt Capable Channel
1
Digital Filter Channel
1
Opto-Isolator Response
100 us
Input Voltage
Logic 0 : 2V max.
Logic 1 : 5 ~ 50 V
Isolated Digital Output
?Channels
8 (NPN)
?Isolation Protection
2,500 VDC
?Output Voltage
5 ~ 40 VDC
Sink Current
500 mA max./channel
?Opto-Isolator Response
100 µs
Counter
Channels
2
Resolution
32 bits
Compatibility
5 V/TTL
Isolation Protection
2,500 VDC
Opto-Isolator Response
100 us
