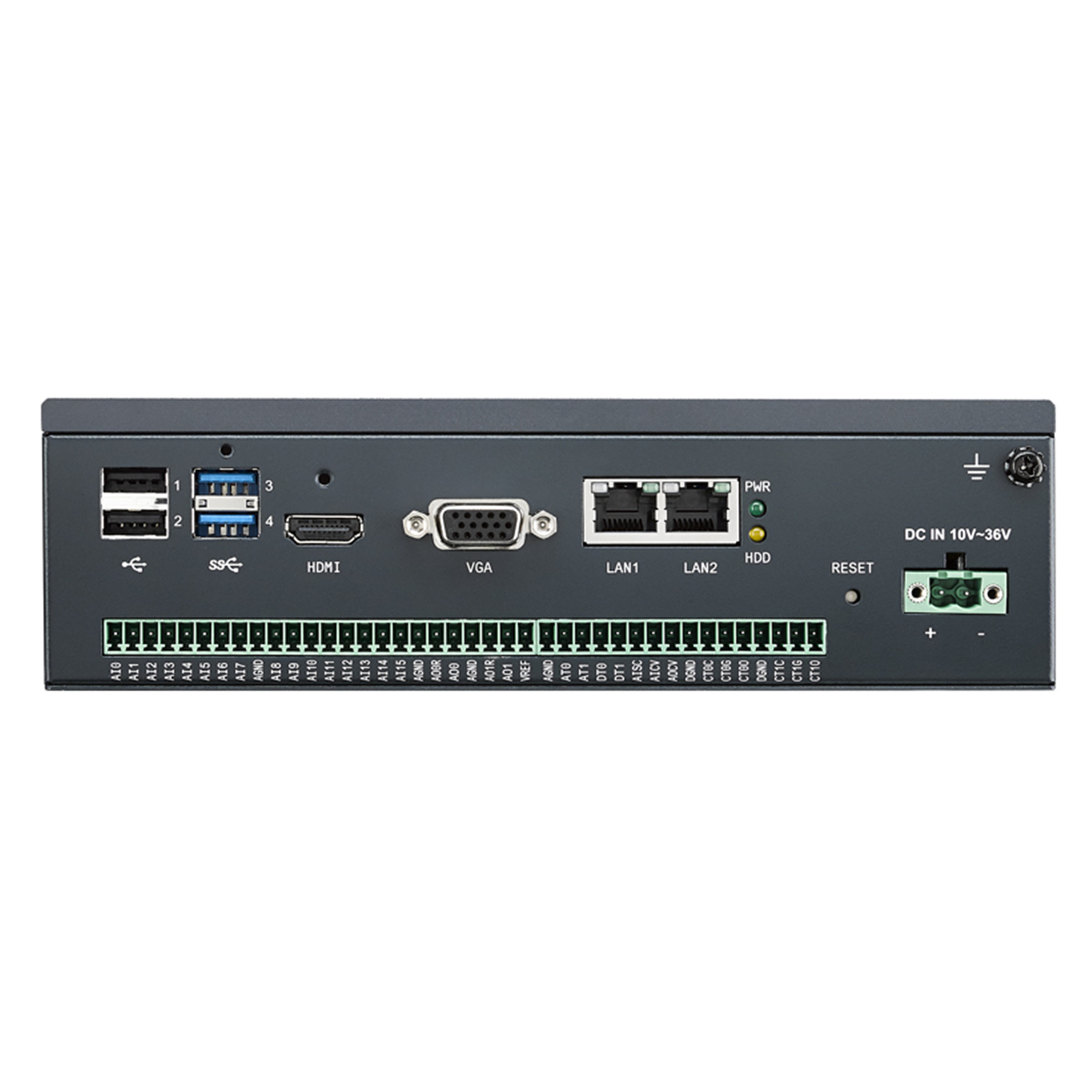

Advantech MIC-1816-U0A1E 16-bit, 1MS/s, 16-ch DAQ platform with Core i3/ Celeron processer
- Brand: Advantech
- MPN: MIC-1816-U0A1E
- Part #: IPCAVH220949

Product URL: https://www.pbtech.com/au/product/IPCAVH220949/Advantech-MIC-1816-U0A1E-16-bit-1MSs-16-ch-DAQ-pla
Features
16-bit, 1MS/s, 16-ch DAQ platform with Core™ i3/ Celeron® processer
- 16x analog inputs, up to 1 MS/s, 16-bit resolution
- 2x analog outputs, up to 3 MS/s, 16-bit resolution
- Support for digital trigger and analog trigger
- 16x isolated digital input and 8 x isolated digital output
- 2x 32-bit programmable counter/timers
- Onboard FIFO memory (4,096 samples)
- 2 x RS-232/422/485 ports
- 2 x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported
Specifications
Analog Input
Channels
16
Input Range
±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V
Resolution(Bits)
16-bit
Sampling Rates(S/s)
1 MS/s (sum)
Analog Output
Channels
2
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V
Resolution
16-bit
Update Rate(S/s)
3 MS/s
Counter/Encoder Input
Channels
2
Counting Range
32-bit
Max. Input Frequency
10 MHz
Digital Input
Channels
16 (Isolated)
Digital Output
Channels
8 (Isolated)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
Power Requirements
Input Voltage
10~30 VDC
