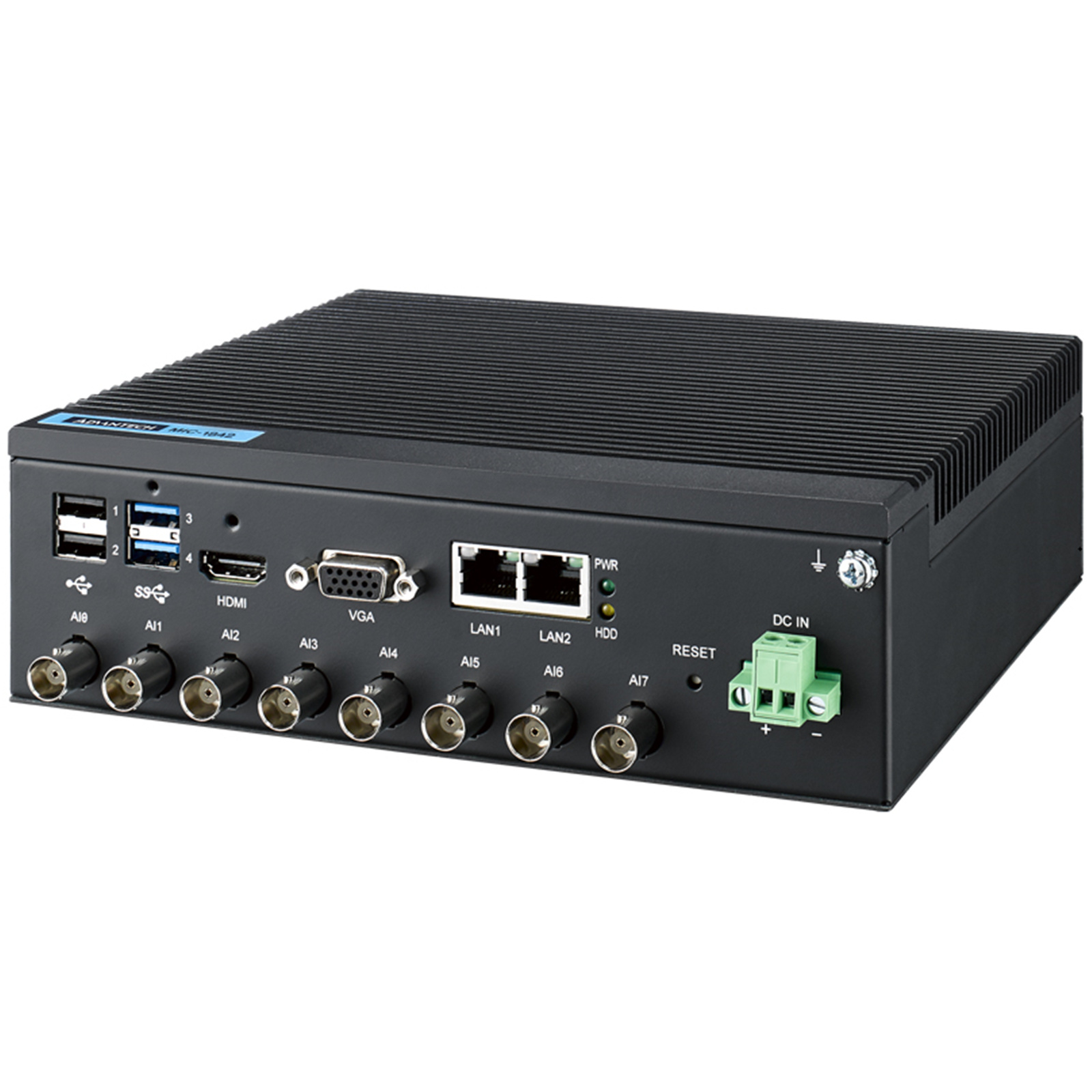

Advantech MIC-1842-U4A1E 12-Bit, 20MS/s, 8-ch AI Platform with Intel Core i5 CPU
- Brand: Advantech
- MPN: MIC-1842-U4A1E
- Part #: IPCAVH220951

Product URL: https://www.pbtech.com/au/product/IPCAVH220951/Advantech-MIC-1842-U4A1E-12-Bit-20MSs-8-ch-AI-Plat
Features
MIC-1842 is a high performance DAQ platform featuring an integrated DAQ module and signal conditioning to provide high speed analog input, TTL digital I/O, and triggering functions. This application ready system also supports high speed networking and serial communication ports to enable seamless integration and rapid system development.
- 8 x Simultaneously Analog Inputs, up to 20 MS/s, 12-bit resolution
- Supports digital and analog triggers
- 32-ch TTL digital I/O
- Onboard FIFO memory (16 K samples)
- 2x RS-232 ports
- 2x 10/100/1000 Base-T RJ-45 LAN ports
- 2x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported
For more information: https://advdownload.advantech.com/productfile/PIS/MIC-1842/file/MIC-1842_L_DS(081922)20230601150016.pdf
Specifications
Analog input
Channels
8-ch (MIC-1842-U4A1E)
Resolution
12 bits
Sample Rate
Up to 20MS/s simultaneously
Trigger Reference
Digital and analog triggers
Trigger Mode
Start, Delayed Start
Stop, Delayed Stop
FIFO Size
16K samples
Overvoltage Protection
30 Vp-p
Input Impedance
50 or 1 MO, selected by jumper
General
Dimensions (W x H x D)
200mm x 180mm x 61mm ((7.87" x 7.09" x 2.4")
Power Consumption
Typ.: 20W @ 24V, Max.: 30W @ 24V
Power Requirements
10 ~ 36 VDC
Weight
2 kg (typical)
OS Support
Windows / Linux
System Hardware
CPU Intel® Core™ i5-6300U processor, 3.0 GHz (MIC1842-U4A1E)
Memory
4GB DDR3L (Max. 16GB expansion available)
Indicators
LEDs for Power, IDE and LAN (Active, Status)
USB
USB 2.0 x 2, USB 3.0 x 2
Storage
1 x 2.5" HDD/SSD, installation subject to ordered configuration
Expansion
Mini PCIe full size *1 (iDoor)
Display
HDMI x 1, VGA x 1
Environment
Storage Humidity
5 ~ 95% RH, non-condensing
Operating Temperature
-10 ~ 60 °C (14 ~140 °F) @ 5 ~ 85% RH with 0.7m/s air flow
Storage Temperature
-20 ~ 80 °C (-4 ~ 176 °F)
