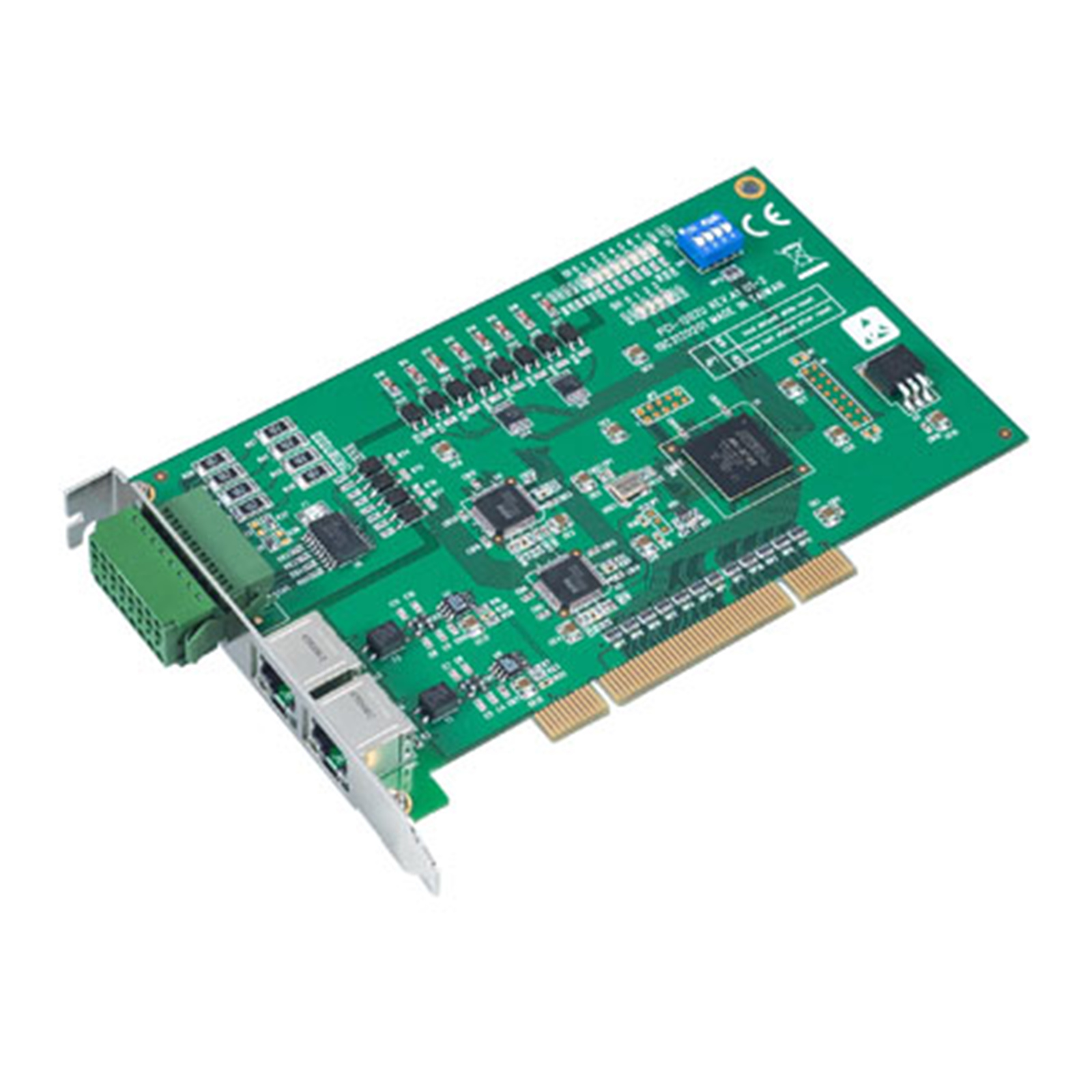

Advantech PCI-1202U-AE 2-port AMONet PCI Center Card
- Brand: Advantech
- MPN: PCI-1202U-AE
- Part #: IPCAVH220952

Product URL: https://www.pbtech.com/au/product/IPCAVH220952/Advantech-PCI-1202U-AE-2-port-AMONet-PCI-Center-Ca
Features
2-port AMONet PCI Center Card
- Max. 20 Mbps transfer rate
- 2 independent AMONet RS-485 Center Rings
- Max. 128 AMONet RS-485 local modules supported
- Programmable digital input to notify events
- Easy installation with RJ45 phone jack and LED diagnostic
Specifications
Communications
Communication Cycle Time
1000 us
Interface
AMONet
EtherCAT
Communication IO SubDevice
1024-ch DI and 1024-ch DO / 0-ch AI and 0-ch AO
Communication Motion SubDevice
128 Servo Drive Max.
EtherCAT Extension
BUS Interface
2 x RJ45
Isolated Digital Input
Isolation Protection
2,500 VDC
Isolated Digital Output
Output Type
Sink
Mechanical
Dimensions (L x H)
175 x 100 mm
Pulse Type Motion Control
Interpolation
2 to 4-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation
Number of Axes
128
