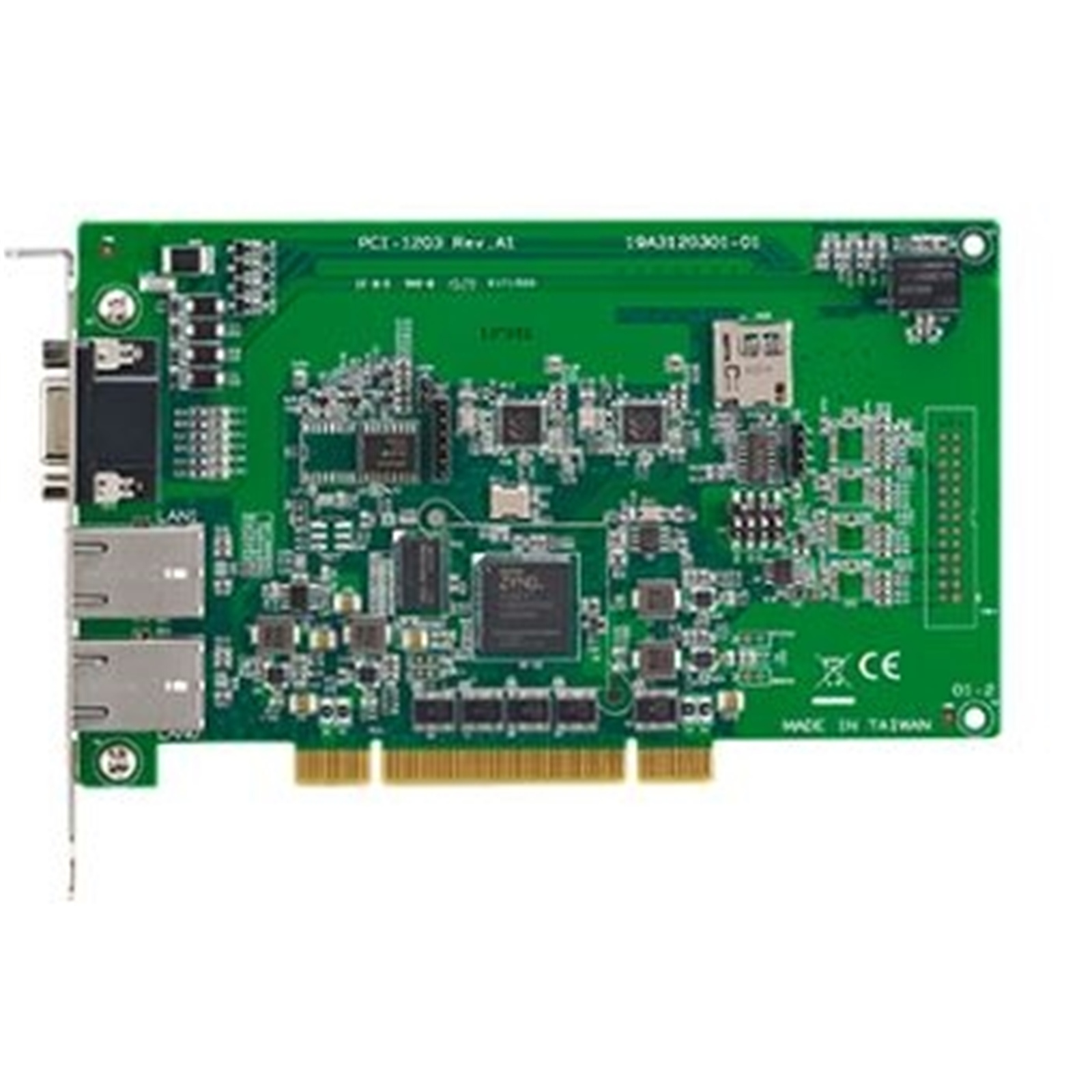

Advantech PCI-1203-10AE 2-port EtherCAT Universal PCI MDevice Card
- Brand: Advantech
- MPN: PCI-1203-10AE
- Part #: IPCAVH220954

Product URL: https://www.pbtech.com/au/product/IPCAVH220954/Advantech-PCI-1203-10AE-2-port-EtherCAT-Universal
Features
2-port EtherCAT Universal PCI MDevice Card
- 650MHz dual-core ARM processor
- 2 x EtherCAT ports for high-performance of Motion and I/O applications
- Supports common motion SDK for rapid application development
- Up to 32 axes support for motion control
- Supports a maximum of 6 motion groups and 8 axes per group
- Supports on board 8-CH isolated DI and 4-CH isolated DO
- Diagnostics for fast error handling can trace command and error message
Specifications
Communications
Communication Cycle Time
500 us
Interface
EtherCAT
EtherCAT
Communication IO SubDevice
1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
Communication Motion SubDevice
06 Servo Drive Max.
EtherCAT Extension
BUS Interface
2 x RJ45
Isolated Digital Input
Isolation Protection
1,000 VDC
Isolated Digital Output
Output Type
Sink
Mechanical
Dimensions (L x H)
175 x 100 mm
Pulse Type Motion Control
Interpolation
2 to 8-axis linear, 3-axis circular, X-Y plane with Z thread helical interpolation
Number of Axes
6
