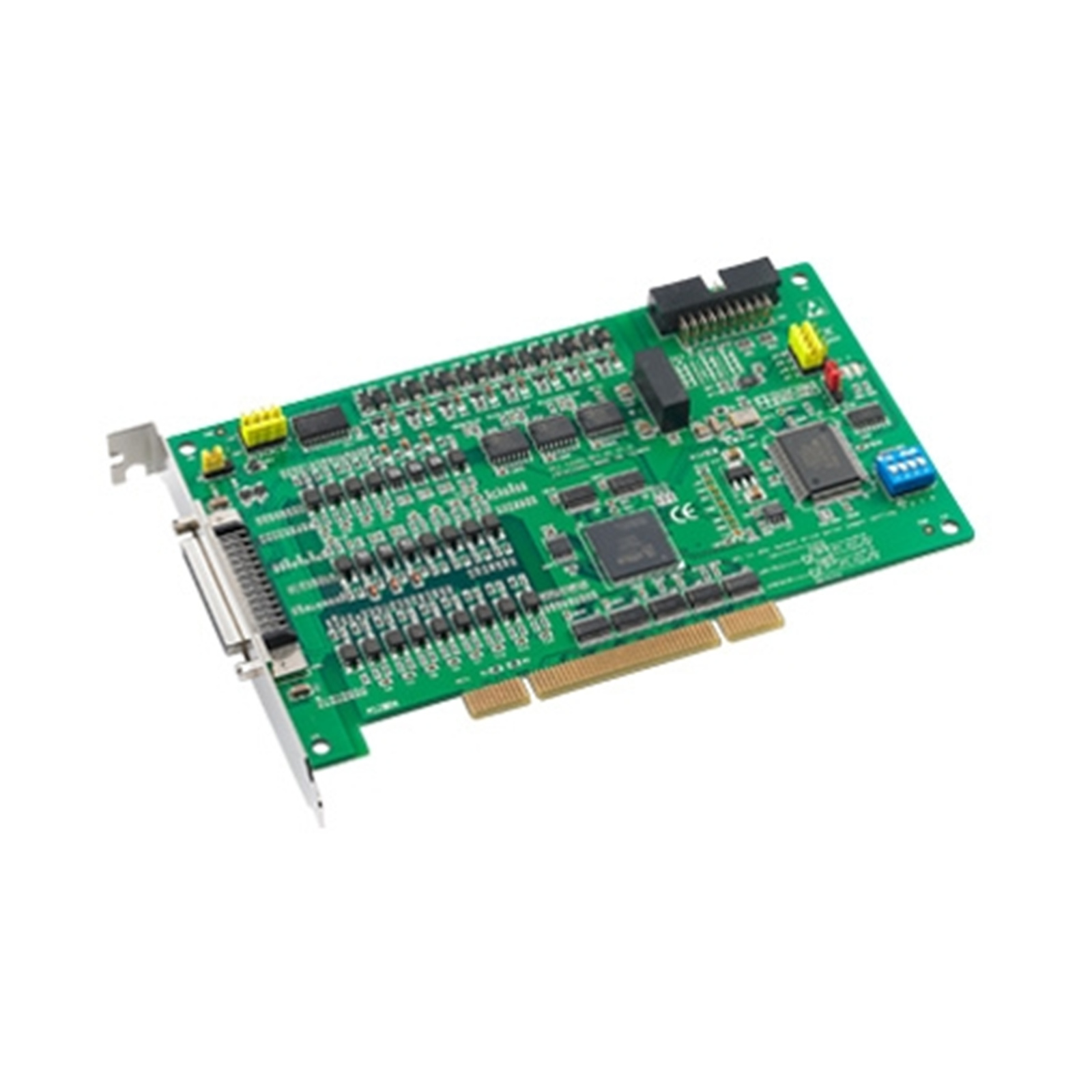

Advantech PCI-1220U-AE 2-axis Stepping and Servo Motor Control Universal PCI Card
- Brand: Advantech
- MPN: PCI-1220U-AE
- Part #: IPCAVH220957

Product URL: https://www.pbtech.com/au/product/IPCAVH220957/Advantech-PCI-1220U-AE-2-axis-Stepping-and-Servo-M
Features
2-axis Stepping and Servo Motor Control Universal PCI Card
- Independent 2-axis motion control
- Hand wheel and jog function
- 2-axis linear interpolation function
- 2-axis circular interpolation function
- Continuous interpolation function
- Programmable T/S-curve acceleration/deceleration rate
- Up to 4 Mpps output for each axis
- Two pulse output types: CW/CCW or pulse/direction
- Up to 1 MHz encoder input for each axis
- Two encoder pulse input types: A/B phase or up/down
- Constant speed control
- Position management and software limit switch function
- BoardID™ switch
Specifications
Counter/Encoder Input
Counting Range
32-bit
Encoder Type and Interface
Counts per Enc. Cycle
x1, x2, x4 (A/B phase only)
Input Range
0~1 VDC for low; 3.5~5 VDC for high
Input Type
Quadrature (x1, x2, x4 A/B phase) or CW/CCW
Max. Input Frequency
4 MHz under x4 A/B phase mode
Frequency
Signal Input
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC
General
Connectors
1 x 50-pin SCSI female connector
Humidity (Operating)
5~95% RH (non-condensing)
Humidity (Storage)
5~95% RH (non-condensing)
Local I/O
General Input Signal
Input voltage: 24 VDC Max.
Input delay: 100 us Max. (isolation delay)
Signal:
EMG (emergency stop)
ORG, LMT+, LMT-
INPOS (in position signal)
LTC (counter latch)
RDY (servo ready)
ALARM (servo alarm)
General Output Signal
Output voltage: Open collect 24 VDC Max
Output delay: 100 us Max. (isolation delay)
Sink current: 100 mA per channel
Signal:
CMP (position compare in range output)
SVON (servo on)
RALM (reset driver alarm)
ERC (counter clear signal)
Pulse Type Motion Control
Interpolation
2-axis linear, 2-axis circular
Max. Output Speed
4 Mbps
Motor Driver Support
Pulse-type servo/stepping
Pulse Output Type
Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)
Step Count Range
±2, 147, 483, 646
Velocity Profiles
T-Curve, S-Curve
